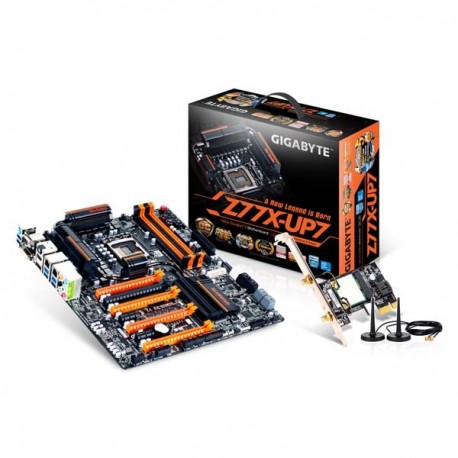

Gigabyte GA-Z77X-UP7 LGA1155 Z77 DDR3

Spesifikasi produk Motherboard Intel Gigabyte GA-Z77X-UP7 LGA1155 Z77 DDR3

Model
Brand

• GIGABYTE

Model

• GA-Z77X-UP7

Supported CPU
CPU Socket Type

• LGA 1155

CPU Type

• Core i7 / i5 / i3 / Pentium / Celeron (LGA1155)

Chipsets
Chipset

• Intel Z77

Memory
Number of Memory Slots

• 4×240pin

Memory Standard

• DDR3 2400+ (OC)/1600/1333/1066

Maximum Memory Supported

• 32GB

Channel Supported

• Dual Channel

Expansion Slots
PCI Express 3.0 x16

• 5 (3 x16 and 2 x8)

PCI Express x1

• 2

Storage Devices
SATA 3Gb/s

• 4

SATA 6Gb/s

• 6 x SATA 6Gb/s

SATA RAID

• 2 x SATA 6Gb/s (SATA3 0~1) and 4 x SATA 3Gb/s (SATA2 2~5) Support for RAID 0, RAID 1, RAID 5, and RAID 10
• 4 x SATA 6Gb/s Support for RAID 0 and RAID 1

Onboard Video
Onboard Video Chipset

• Supported only by CPU with integrated graphic

Onboard Audio
Audio Chipset

• Realtek ALC898

Audio Channels

• 8 Channels

Onboard LAN
Max LAN Speed

• Dual 10/100/1000Mbps

Wireless LAN

• Wi-Fi 802.11 a/b/g/n, Supports 2.4/5 GHz Dual-Band

Bluetooth

• Yes

Rear Panel Ports
PS/2

• 1 x PS/2 keyboard/mouse port

Video Ports

• D-Sub + DVI

HDMI

• 1 x HDMI

DisplayPort

• 1 x DisplayPort

USB 3.0

• 6 x USB 3.0

S/PDIF Out

• 1 x Optical

Audio Ports

• 6 Ports

Internal I/O Connectors
Onboard USB

• 4 x USB 3.0 + 4 x USB 2.0

Other Connectors

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x PCIe power connector
• 1 x mSATA connector
• 1 x CPU fan header
• 6 x system fan headers
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x S/PDIF In header
• 1 x serial port header
• 1 x Clear CMOS jumper
• 1 x power button
• 1 x reset button
• 1 x Clear CMOS button
• 1 x Gear button
• 1 x CPU BCLK Down button
• 1 x CPU BCLK Up button
• 1 x CPU Ratio Down button
• 1 x CPU Ratio Up button
• 1 x onboard voltage measurement module
• 2 x BIOS switchs
• 1 x LN2 switch

Physical Spec
Form Factor

• Extended ATX

Dimensions (W x L)

• 12" x 10.39"

Power Pin

• 24 Pin

Features
Features

• Industry Leading 32+3+2 Phase CPU Power Design
• True All Digital PWM Design
• GIGABYTE 3D Power Utility
• GIGABYTE Ultra Durable 5
• 4-Way Graphics
• GIGABYTE 3D BIOS
• OC-Touch
• Thin Fin Cooling Design
• GIGABYTE 333 Onboard Acceleration
• GIGABYTE On/Off Charge
• Onboard mSATA Support
• 80 Port Debug Display
• Exclusive Bluetooth 4.0/WiFi Expansion Card
• Lucid Universal MVP Support
