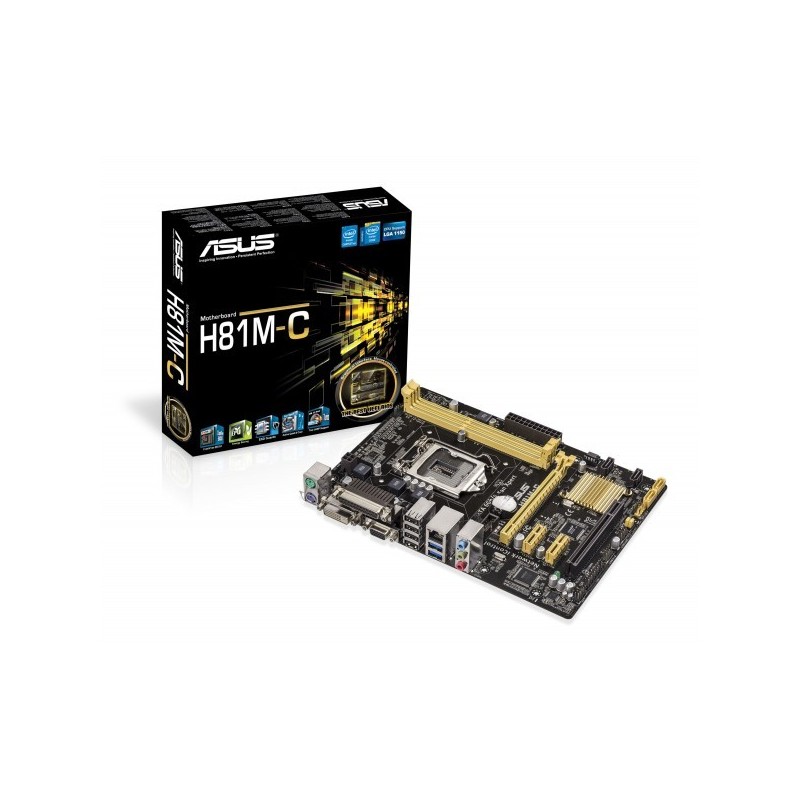

ASUS H81M-C (LGA1150, Intel H81, DDR3)

Spesifikasi ASUS H81M-C (LGA1150, Intel H81, DDR3)

CPU

• Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
• Supports Intel® 22 nm CPU
• Supports Intel® Turbo Boost Technology 2.0

Chipset

• Intel® H81

Memory

• 2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Memory
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)

Graphic

• Integrated Graphics Processor
• Multi-VGA output support : DVI-D/RGB ports
• Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
• Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
• Maximum shared memory of 1024 MB

Expansion Slots

• 1 x PCIe 2.0 x16
• 2 x PCIe 2.0 x1
• 1 x PCI

Storage

Intel® H81 chipset :

• 2 x SATA 3Gb/s port(s), dark brown
• 2 x SATA 6Gb/s port(s), yellow
• Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology *1

LAN

• Realtek® RTL8111G, 1 x Gigabit LAN Controller(s)

Audio

• Realtek® ALC887-VD 8-Channel High Definition Audio CODEC *2
• Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Anti-pop Function

USB Ports

Intel® H81 chipset :

• 2 x USB 3.0 port(s) (2 at back panel, blue)

Intel® H81 chipset :

• 8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board)

Special Features

ASUS EPU :

• EPU

ASUS Exclusive Features :

• GPU Boost
• AI Suite 3
• Ai Charger
• Anti-Surge
• ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
• Network iControl
• USB 3.0 Boost

ASUS Quiet Thermal Solution :

• ASUS Fan Xpert

ASUS EZ DIY :

• ASUS CrashFree BIOS 3
• ASUS EZ Flash 2
• ASUS MyLogo 2

ASUS Q-Design :

• ASUS Q-Slot
• 100% All High-quality Conductive Polymer Capacitors

Operating System Support

• Windows® 8
• Windows® 7

Back I/O Ports

• 1 x PS/2 keyboard (purple)
• 1 x PS/2 mouse (green)
• 1 x DVI-D
• 1 x D-Sub
• 1 x LAN (RJ45) port(s)
• 2 x USB 3.0
• 4 x USB 2.0
• 1 x Parallel port(s)
• 1 x Audio jack(s)

Internal I/O Ports

• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x TPM header
• 1 x COM port(s) connector(s)
• 2 x SATA 6Gb/s connector(s)
• 2 x SATA 3Gb/s connector(s)
• 1 x CPU Fan connector(s)
• 1 x Chassis Fan connector(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Internal speaker connector(s)
• 1 x System panel(s)
• 1 x Clear CMOS jumper(s)

Accessories

• User's manual
• I/O Shield
• 2 x SATA 6Gb/s cable(s)

BIOS

• 64 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a

Manageability

• WfM 2.0, DMI 2.0, WOL by PME, PXE

Support Disc

• Drivers
• ASUS Utilities
• ASUS Update
• Anti-virus software (OEM version)

Form Factor

• mATX Form Factor
• 9.6 inch x 7 inch ( 24.4 cm x 17.8 cm )
