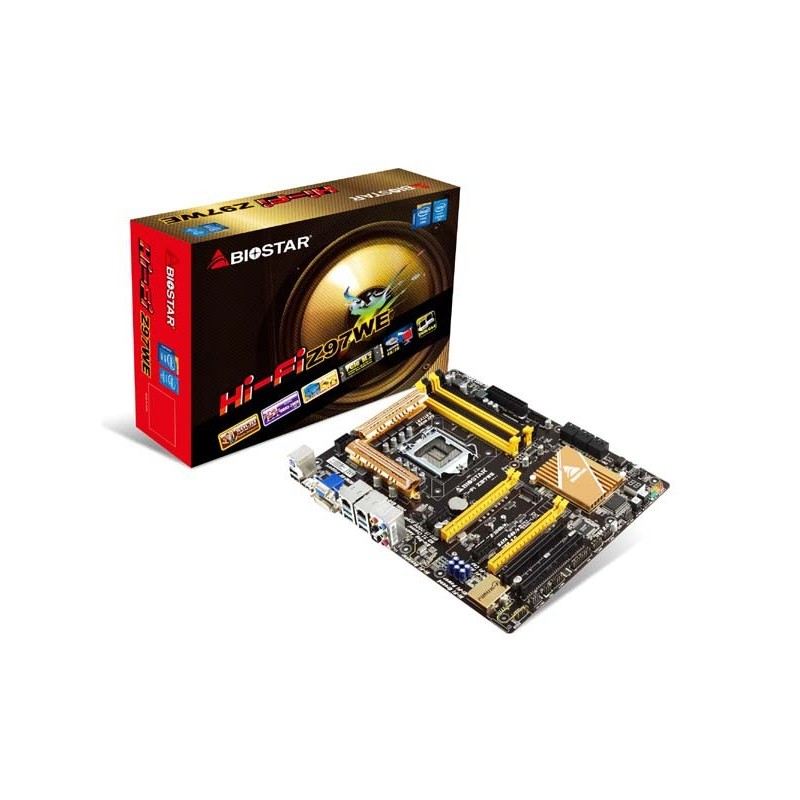

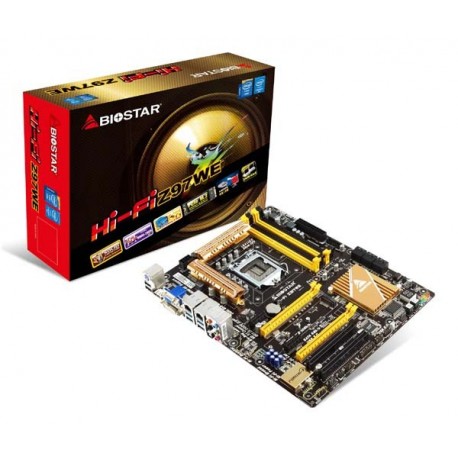

Biostar HI-FI Z97WE (LGA1150, Intel Z97, DDR3)

Spesifikasi Produk Biostar HI-FI Z97WE (LGA1150, Intel Z97, DDR3)

Chipset

• Intel Z97

CPU SUPPORT

• Intel® Core™ i7 LGA 1150 Processor
• Intel® Core™ i5 LGA 1150 Processor
• Intel® Core™ i3 LGA 1150 Processor
• Intel® Pentium® LGA 1150 Processor
• Ready for Intel 4th Gen. unclocked CPU (codename Devil's Canyon)
• Ready for Intel next enthusiast-class CPU(codename Broadwell)
• Support CPU Bclk overclock
• MEMORYSupport Dual Channel DDR3 2800(OC)/ 2600(OC)/ 2400(OC)/ 2200(OC)/ 2133(OC)/ 1866(OC)/ 1800(OC)/ 1600/ 1333/ 1066 MHz
• Support non-ECC memory modules
• Support Extreme Memory Profile(XMP) memory modules
• 4 x DDR3 DIMM Memory Slot
• Max. Supports up to 32GB Memory

EXPANSION SLOT

• 2 x PCI-E x16 3.0 Slot (x8 + x8, support CrosfireX)
• 2 x PCI-E x1 2.0 Slot
• 2 x PCI Slot

STORAGE

• 6 x SATA3 Connector
• Support SATA RAID: 0,1,5,10
• Support both Legacy and AHCI Mode
• Support Hot-Plug in AHCI mode
• Support Intel Smart Response Technology
• 1 x M.2(N.G.F.F.) Connector up to 1000MB/s
• Support both PCIE NAND for PCIE SSD and SATA NAND for SATA SSD

USB

• 4 x USB 3.0 Port
• 1 x USB 3.0 Header
• 2 x USB 2.0 Port
• 2 x USB 2.0 Header

LAN

• Realtek RTL8111G - 10/100/1000 Controller
• Support Wake-On-LAN
• Support PXE
• ※Dual GbE, support Teaming
• MULTI GRAPHICSAMD CrossFireX

INTEGRATED VIDEO

• By CPU model
• Supports DX11.1/ 11/ 10.1/ 10/ 9
• Supports HDCP
• Support DirectX Video Acceleration(DXVA) for accelerating video processing
• Full AVC/VC1/MPEG2 HW Decode
• Support Advanced Scheduler 2.0, 1.0, XPDM
• Support OpenGL 4.0
• Support HDMI, 1.4a specification compliant with 3D
• Support 3 Displays(HDMI + DVI + VGA)

CODEC

• Realtek ALC892 8-Channel Blu-ray Audio
• Support Blu-ray Audio
• Support HD Audio
• Support 2/4/6/8-channel
• Support SPDIF_out
• Support Biostar Hi-Fi

REAR I/O

• 1 x PS/2 Keyboard
• 4 x USB 3.0 Port
• 2 x USB 2.0 Port
• 1 x HDMI Connector, resolution up to 4096x2160@24Hz, 24bpp / 2560x1600@60Hz, 24bpp / 1920x1080@60Hz, 36bpp
• 1 x DVI Connector, resolution up to 1920x2000@60Hz @24bpp
• 1 x VGA Port, resolution up to 1920x2000@60Hz @24bpp

• 2 x RJ-45 Port
• 5 x Audio Connector
• 1 x S/PDIF Out Port

INTERNAL I/O

• 1 x USB 3.0 Header
• 2 x USB 2.0 Header
• 6 x SATA3 6Gb/s Connector
• 1 x M.2(N.G.F.F.) Connector
• 1 x Front Audio Header
• 1 x Front Panel Header
• 2 x CPU Fan Header
• 4 x System Fan Header
• 1 x Serial Header
• 1 x CIR Header
• 1 x TPM Header(TPM V1.2)

H/W MONITORING

• CPU / System / PCH / DDR Temperature Monitoring
• CPU / System Fan Monitoring
• Smart / Manual CPU / System Fan Control
• System Voltage Monitoring

OVERVOLTAGE

• CPU VCC_IN/ Vcore/ Vring/ VGT/ VSA/ VIOA/ VIOD/ DRAM/ DDR Ch-A CA Verf/ DDR Ch-B CA Verf/ DDR Ch-A/B DA Verf/ CPU DRAM Vref/ PCH/ PCH PLL

DIMENSION

• ATX Form Factor Dimension: 30.5cm x 24.4cm ( W x L )

OS SUPPORT

• Support Windows 7 / 8 / 8.1
• BUNDLE SOFTWAREBullGuard
• Smart Ear headphone Utility
• BIO-Remote2
• BIO-Remote
• Biostar MAGIX Multimedia Software Suite
• Smart Speed LAN
• Intel Rapid Start Technology
• Intel Smart Connect Technology
• Intel Rapid Storage Technology(include Intel Smart Response Techmology)

ACCESSORIES

• 4 x SATA Cable
• 1 x I/O Shield
• 1 x DVD Driver
• 1 x User Manual

FEATURES

• Windows 8 Ready
• Supports PURO Hi-Fi
• Supports 100% Solid capacitor
• Supports Rapid Switch2
• Supports Rapid Debug3
• Supports Charger Booster
• Supports BIOS Online Update
