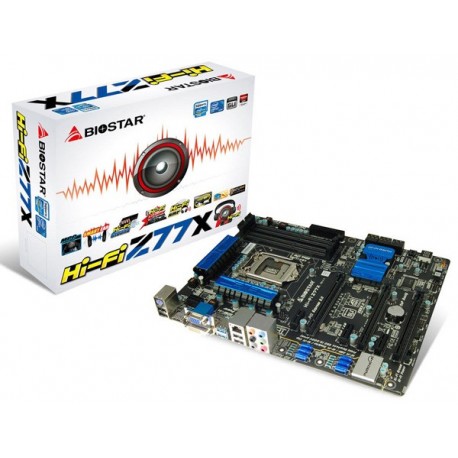

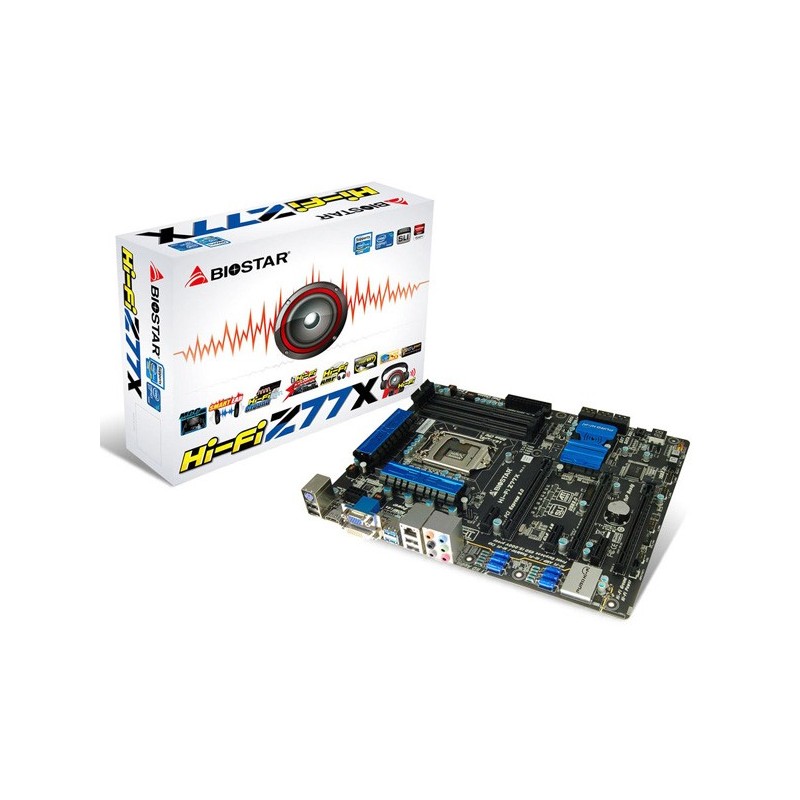

Biostar HI-FI Z77X (LGA1155, Intel Z77, DDR3)

Spesifikasi Produk Biostar HI-FI Z77X (LGA1155, Intel Z77, DDR3)

Chipset

• Intel Z77

CPU SUPPORT

• Intel® Core™ i7 LGA 1155 Processor
• Intel® Core™ i5 LGA 1155 Processor
• Intel® Core™ i3 LGA 1155 Processor
• Intel® Pentium® LGA 1155 Processor
• Intel® Celeron® LGA 1155 Processor
• Maximum CPU TDP (Thermal Design Power) : 95Watt
• MEMORYSupport Dual Channel DDR3 2600(OC)/2400(OC)/2200(OC)/2133(OC)/1866(OC)/1800(OC)/1600/1333/1066 MHz
• 4 x DDR3 DIMM Memory Slot
• Max. Supports up to 32GB Memory

EXPANSION SLOT

• 2 x PCI-E x16 3.0 Slot (SLi / CFX x8)
• 1 x PCI-E x16 2.0 Slot (x4)
• 3 x PCI-E x1 2.0 Slot
• STORAGE2 x SATA3 Connector
• 4 x SATA2 Connector
• Support SATA RAID: 0,1,5,10
• Support Intel Smart Response Technology

USB

• 2 x USB 3.0 Port
• 1 x USB 3.0 Header
• 4 x USB 2.0 Port
• 2 x USB 2.0 Header
• Intel USB3.0 only support Win7 or later version

LAN

• Realtek RTL8111F - 10/100/1000 Controller
• MULTI GRAPHICSAMD CrossFireX
• NVIDIA SLI

INTEGRATED VIDEO

• By CPU model
• Supports DX11
• Supports HDCP

CODEC

• Realtek ALC898 8 Channel Blu-ray Audio
• REAR I/O1 x PS/2 Keyboard
• 2 x USB 3.0 Port
• 4 x USB 2.0 Port
• 1 x HDMI Connector
• 1 x DVI Connector
• 1 x VGA Port
• 1 x RJ-45 Port
• 6 x Audio Connector

INTERNAL I/O

• 1 x USB 3.0 Header
• 2 x USB 2.0 Header
• 2 x SATA3 6Gb/s Connector
• 4 x SATA2 3Gb/s Connector
• 1 x Front Audio Header
• 1 x Front Panel Header
• 1 x S/PDIF-Out Header
• 1 x CPU Fan Header
• 2 x System Fan Header
• 1 x Serial Header
• 1 x CIR Header

H/W MONITORING

• CPU / System Temperature Monitoring
• CPU / System Fan Monitoring
• Smart / Manual CPU Fan Control
• System Voltage Monitoring

DIMENSION

• ATX Form Factor Dimension: 30.5 cm x 24.4 cm ( W x L )

OS SUPPORT

• Support Windows XP / Vista / 7 / 8
• BUNDLE SOFTWAREBIO-Remote2
• BIO-Remote

ACCESSORIES

• 4 x SATA Cable
• 1 x SLI Connector
• 1 x CrossFire Connector
• 1 x I/O Shield
• 1 x DVD Driver
• 1 x User Manual
• 1 x MCC MIC

FEATURES

• Windows 8 Compatible
• Supports uEFI GUI Interface BIOS
• Supports THX TruStudio Pro
• Supports 100% Solid capacitor
• Supports Rapid Switch2
• Supports Rapid Debug3
• Supports HDMI Audio Ready
• Supports Toverclcoker OC software
• Supports GPU
• Supports Charger Booster
• Supports BIOS Online Update
