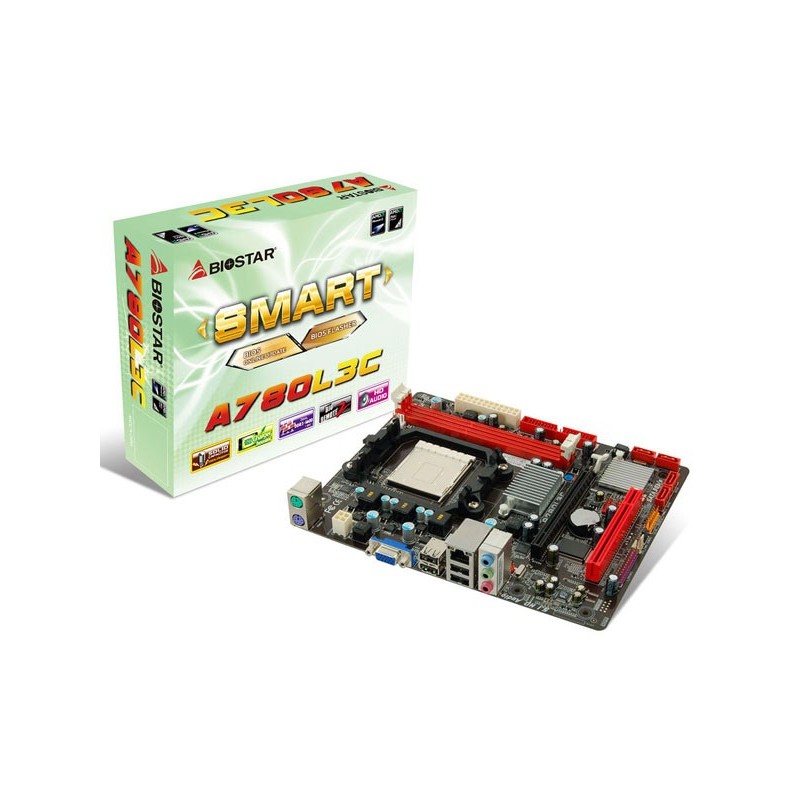

Biostar A780L3C (AM3, AMD780L, DDR3)

Spesifikasi Produk Biostar A780L3C (AM3, AMD780L, DDR3)

Chipset

• AMD 760G / SB710

CPU SUPPORT

• AMD Phenom™ II X4 Processor
• AMD Phenom™ II X3 Processor
• AMD Phenom™ II X2 Processor
• AMD Athlon™ II X4 Processor
• AMD Athlon™ II X3 Processor
• AMD Athlon™ II X2 Processor
• AMD Sempron™ Processor
• Maximum CPU TDP (Thermal Design Power) : 95Watt

HT

• Support HT 3.2G

MEMORY

• Support Dual Channel DDR3 800/1066/1333/1600(OC) MHz
• 2 x DDR3 DIMM Memory Slot
• Max. Supports up to 16GB Memory

EXPANSION SLOT

• 1 x PCI-E x16 2.0 Slot
• 1 x PCI Slot

STORAGE

• 4 x SATA2 Connector
• 1 x IDE Connector
• Support SATA RAID: 0,1,10

USB

• 4 x USB 2.0 Port
• 2 x USB 2.0 Header

LAN

• Realtek RTL8105T - 10/100 Controller

INTEGRATED VIDEO

• ATI Radeon™ HD3000 Graphics, On Board Graphic Max. Memory Share Up to 1024 MB

CODEC

• VIA VT1708B 6-Channel HD Audio

REAR I/O

• 1 x PS/2 Mouse
• 1 x PS/2 Keyboard
• 4 x USB 2.0 Port
• 1 x VGA Port
• 1 x RJ-45 Port
• 3 x Audio Connector

INTERNAL I/O

• 1 x Printer Header
• 2 x USB 2.0 Header
• 4 x SATA2 3Gb/s Connector
• 1 x IDE Connector
• 1 x Front Audio Header
• 1 x Front Panel Header
• 1 x CPU Fan Header
• 1 x System Fan Header

H/W MONITORING

• CPU / System Temperature Monitoring
• CPU / System Fan Monitoring
• Smart / Manual CPU Fan Control

System Voltage Monitoring

DIMENSION

• Micro ATX Form Factor Dimension: 22.5cm x 18.2cm ( W x L )

OS SUPPORT

• Support Windows XP / Vista / 7

ACCESSORIES

• 2 x SATA Cable
• 1 x I/O Shield
• 1 x DVD Driver
• 1 x Quick Guide

FEATURES

• Supports Solid capacitor
• Supports BIOS-Flasher
