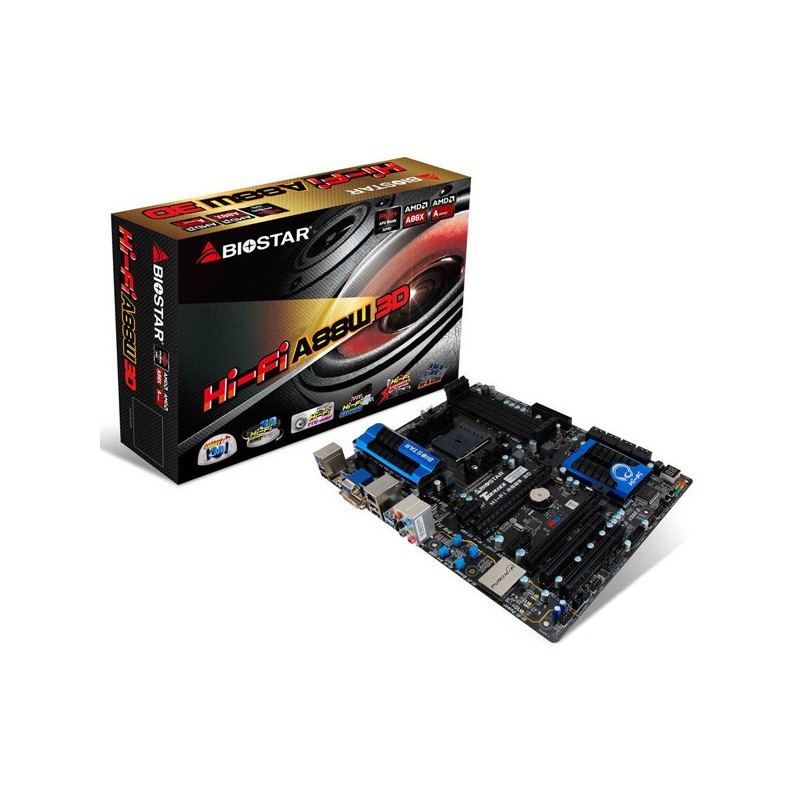

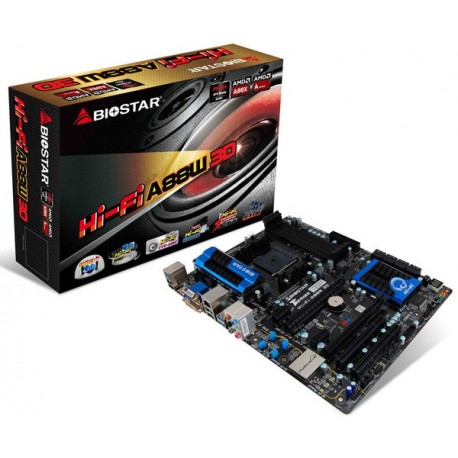

Biostar HI-FI A88W 3D (FM2+, AMD A88, DDR3, SATA3, USB3)

Spesifikasi Produk Biostar HI-FI A88W 3D (FM2+, AMD A88, DDR3, SATA3, USB3)

Chipset

• AMD A88X

CPU SUPPORT

• AMD A10 Processor
• AMD A8 Processor
• AMD A6 Processor
• AMD A4 Processor
• AMD E2 Processor
• AMD Athlon™ II X4 Processor
• Maximum CPU TDP (Thermal Design Power) : 100Watt
• MEMORYSupport Dual Channel DDR3 2600(OC)/2400(OC)/2133/1866/1600/1333/1066/800 MHz
• 4 x DDR3 DIMM Memory Slot
• Max. Supports up to 64GB Memory

EXPANSION SLOT

• 1 x PCI-E x16 3.0 Slot (supported by FM2+ CPU)
• 1 x PCI-E x16 2.0 Slot (x4)
• 2 x PCI-E x1 2.0 Slot
• 2 x PCI Slot

STORAGE

• 8 x SATA3 Connector
• Support SATA RAID: 0,1,5,10

USB

• 2 x USB 3.0 Port
• 1 x USB 3.0 Header
• 4 x USB 2.0 Port
• 2 x USB 2.0 Header

LAN

• Realtek RTL8111G - 10/100/1000 Controller
• MULTI GRAPHICSAMD CrossFireX

INTEGRATED VIDEO

• By CPU model
• AMD Dual Graphics Technology
• Supports DX11.1
• Supports HDCP

CODEC

• Realtek ALC892 8-Channel Blu-ray Audio

REAR I/O

• 1 x PS/2 Keyboard
• 2 x USB 3.0 Port
• 4 x USB 2.0 Port
• 1 x HDMI Connector
• 1 x DVI (Dual Link) Connector
• 1 x VGA Port
• 1 x RJ-45 Port
• 6 x Audio Connector

INTERNAL I/O

• 1 x USB 3.0 Header
• 2 x USB 2.0 Header
• 8 x SATA3 6Gb/s Connector
• 1 x Front Audio Header
• 1 x Front Panel Header
• 1 x S/PDIF-Out Header
• 2 x CPU Fan Header
• 3 x System Fan Header
• 1 x Serial Header
• 1 x CIR Header

H/W MONITORING

• CPU / System Temperature Monitoring
• CPU / System Fan Monitoring
• Smart / Manual CPU Fan Control
• System Voltage Monitoring

DIMENSION

• ATX Form Factor Dimension: 30.5cm x 23.5cm ( W x L )
• OS SUPPORTSupport Windows XP / 7 / 8
• BUNDLE SOFTWAREBIO-Remote2
• BIO-Remote
• Smart Speed LAN

ACCESSORIES

• 4 x SATA Cable
• 1 x I/O Shield
• 1 x DVD Driver
• 1 x User Manual

FEATURES

• Windows 8 Ready
• Supports PURO Hi-Fi 3D
• Supports 100% Solid capacitor
• Supports Rapid Switch
• Supports Rapid Debug3
• Supports BIOS-Flasher
• Supports Charger Booster
• Supports BIOS Online Update
