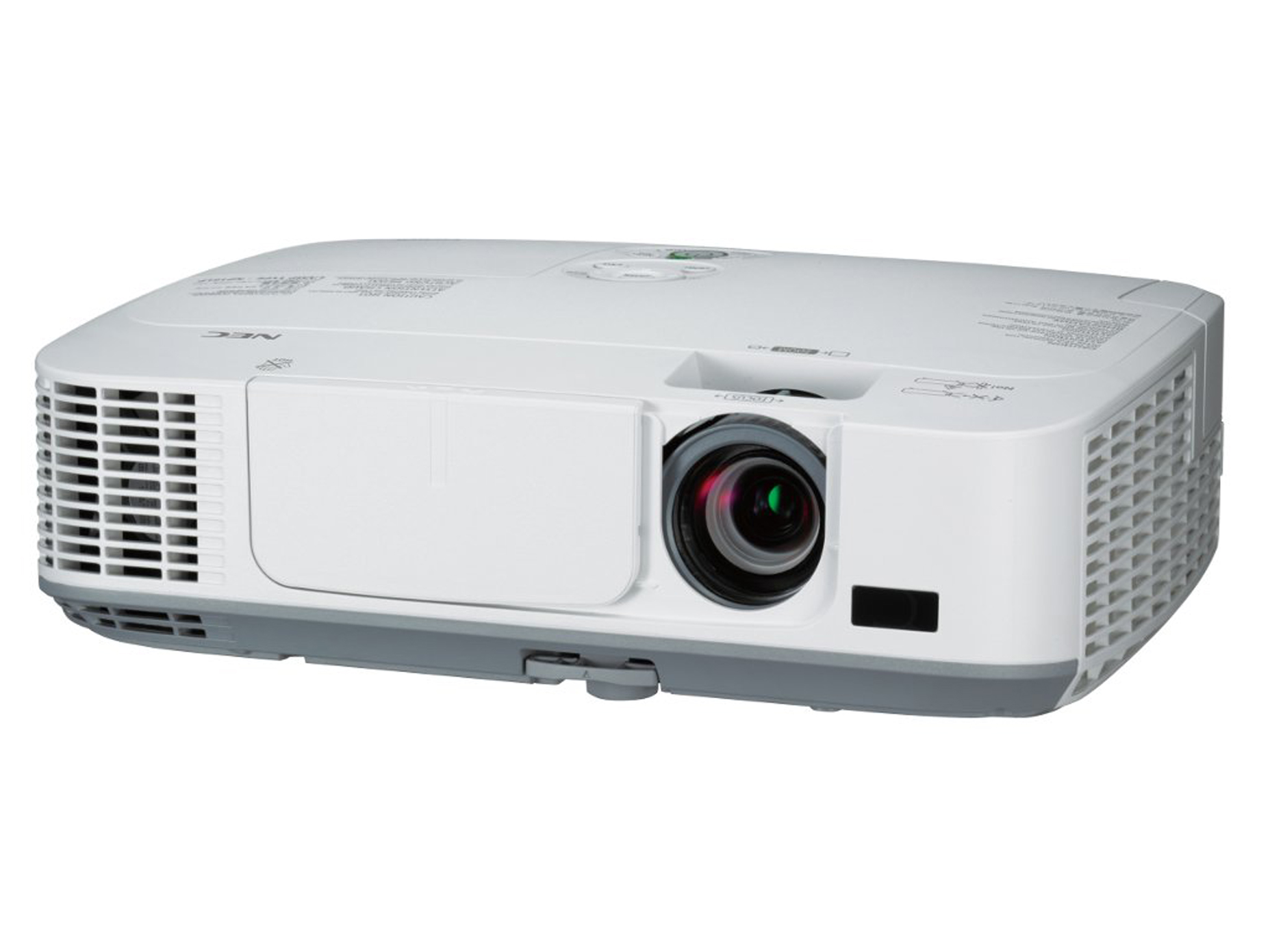

NEC M230X Proyektor Ansi Lumens 2300 Xga

Spesifikasi Produk NEC M230X Proyektor Ansi Lumens 2300 Xga

Display

• 3 x 1.6 cm (0.63") p-Si LCD Panel

Native Resolution

• 1024 x 768 (XGA)

Contrast Ratio 1

• 2000:1

Brightness 1

• 2300 ANSI Lumen (approx. 80% in Eco Mode )

Lamp

• 180 W AC (145 W AC Eco Mode )

Lamp Life [hrs]

• 5000 (6000 Eco Mode )

Lens

• F= 1.7–2.2, f= 17.5–29 mm

Projection Factor

• 1.3 – 2.2 : 1

Projection Distance [m]

• 0.6 – 13.8

Screen Size (diagonal) [cm] / [inch]

• Minimum: 63.5 / 25"; Maximum: 762 / 300"

Zoom

• Manual

Focus Adjustment

• Manual

Frequency

• Horizontal: 15–100 kHz (RGB: 24 kHz– 100 kHz); Vertical: 50 – 120 Hz

CONNECTIVITY
RGB (analog)

• Input: 2 x Mini D-sub 15-pin, compatible to component (YPbPr)
• Output: 1 x Mini D-sub 15 pin

HDMI™

• Input: 1 x HDMI™ (Deep Color, Lip sync)

Video

• Input: 1 x RCA

S-Video

• Input: 1 x Mini DIN 4-pin

Audio

• Input: 2 x 3.5 mm Stereo Mini Jack; 2 x RCA Stereo
• Output: 1 x 3.5 mm Stereo Mini Jack (variable)

PC Control

• Input: 1 x D-Sub 9 pin (RS-232) (male)

LAN

• 1 x RJ45

USB

• 1 x Type B; 2 x Type A (USB 2.0 high speed)

Video Signals

• PAL; PAL60; NTSC; SECAM; NTSC 4.43; PAL-N; PAL-M

REMOTE CONTROL
Remote Control

• Aspect Ratio; Audio Control; Auto Adjust; AV Mute; Digital Zoom; Freeze; Help Eco Mode ; ID set; Picture Adjust; Picture Mode; Presentation and Mouse Control; Source Select

ELECTRICAL
Power Supply

• 100-240 V AC; 50 - 60 Hz

Power Consumption [W]

• 239 (Normal) / 193 (Eco) / 8 (Network Stand-by) / 0.4 (Stand-by)

MECHANICAL
Dimensions (W x H x D) [mm]

• 339 x 99 x 257 (without lens and feet)

Weight [kg]

• 2.9

Fan Noise [dB (A)]

• 27 / 34 (Eco / Normal)

ENVIRONMENTAL CONDITIONS
Operating Temperature [°C]

• 5 to 40

Operating Humidity [%]

• 20 to 80

Storage Temperature [°C]

• -10 to 50

Storage Humidity [%]

• 20 to 80

ERGONOMICS
Safety and Ergonomics

• CE; ErP; TÜV GS; RoHS ; TCO ; Gost-R

Speakers [W]

• 1 x 10 (mono)

WARRANTY
Projectors

• 3 years pan-European service

Lamp

• 6 months, max. 1000 hrs

Berat dan ukuran NEC M230X Proyektor Ansi Lumens 2300 Xga

Dimensions (W x H x D) [mm]

• • • 339 x 99 x 257 (without lens and feet)

Weight [kg]

• • • 2.9

Ringkasan produk NEC M230X Proyektor Ansi Lumens 2300 Xga

Dapatkan performa yang hebat sementara penyelamatan lingkungan. Fitur Eco canggih membantu untuk secara substansial menurunkan biaya operasi Anda tanpa mengorbankan kualitas dan fleksibilitas. M230X ini khususnya cocok untuk ruang kelas dan ruang rapat kecil.
