TRENDnet TPE-1620WS 16-Port Gigabit Web Smart PoE+ Switch



Spesifikasi Produk TRENDnet TPE-1620WS 16-Port Gigabit Web Smart PoE+ Switch

Standards

IEEE 802.1d

IEEE 802.1p

IEEE 802.1Q

IEEE 802.1s

IEEE 802.1w

IEEE 802.1X

IEEE 802.1ab

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3z

IEEE 802.3ab

IEEE 802.3ad

IEEE 802.3af

IEEE 802.3at

IEEE 802.3az

Device Interface

16 x Gigabit PoE+ ports

2 x Shared SFP slots

LED indicators

Data Transfer Rate

Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)

Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)

Gigabit Ethernet: 2000 Mbps (full duplex)

Performance

Switch fabric: 32 Gbps

Ram buffer: 8 Mbits

MAC Address Table: 16K entries

Jumbo Frames: 10 Kbytes

HOL Blocking Prevention

Forwarding rates: 23.8 Mpps

Management

HTTP/HTTPS (SSL v2/3 TLS) Web based GUI

SNMP v1, v2c, v3

RMON v1

Static Unicast MAC Address

Enable/disable 802.3az Power Saving

LLDP

Virtual Cable Test

IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration

MIB

MIB II RFC 1213

Bridge MIB RFC 1493

Bridge MIB Extension RFC 2674

SNMPv2 MIB RFC 1907

Ethernet Interface MIB RFC 1643

Ethernet –like MIB RFC 2863

Interface Group MIB RFC2233

MIB Traps Convention RFC 1215

RMON MIB RFC 1757, RFC 2819

802.1p MIB RFC 2674

RADIUS Client Authentication MIB RFC 2618

LLDP-MIB IEEE 802.1ab

Ping MIB RFC 2925, RFC 4560

Spanning Tree

IEEE 802.1D STP (Spanning Tree protocol)

IEEE 802.1w RSTP (Rapid Spanning Tree protocol)

IEEE 802.1s MSTP (Multiple Spanning Tree protocol)

Link Aggregation

Static Link Aggregation

802.3ad Dynamic LACP

Quality of Service (QoS)

802.1p Class of Service (CoS)

DSCP (Differentiated Services Code Point)

Bandwidth Control per port

Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)

VLAN

Multiple management VLAN assignment Asymmetric VLAN

802.1Q Tagged VLAN

Dynamic GVRP

Up to 256 VLAN groups, ID Range 1-4094

Private VLAN (Protected Ports)

Voice VLAN (10 user defined OUIs)

Multicast

IGMP Snooping v1, v2, v3 (per VLAN)

Static Multicast Address

Up to 256 multicast entries

Port Mirror

RX, TX, or Both

One to one

Many to one

Security

802.1X Port-Based Network Access Control , RADIUS, TACACS+

Local Dial In User Authentication

DHCP Snooping (per VLAN)

Loopback Detection

Duplicated Address Detection

Denial of Service (DoS)

ACL IPv4 L2-L4 & IPv6

MAC Address

VLAN ID

Ether Type (IPv4 only)

IP Protocol 0-255

TCP/UDP Port 1-65535

802.1p

DSCP (IPv4 only)

IPv6 Address (IPv6 only)

Compatibility

Optional Software Utility: Windows® 8.1 (32/64-bit), 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), Windows® 2003/2008 Server (32/64-bit)

Special Features

PoE+

IPv6

802.3az power saving

Rack mountable

Power

Input: 100 - 240 V AC, 50/60 Hz, internal power supply

Consumption: 198 Watts (Max)

PoE budget: 185 Watts

Operating Temperature

0 – 45 °C (32 - 113 °F)

Operating Humidity

Max 90% non-condensing

Berat dan ukuran TRENDnet TPE-1620WS 16-Port Gigabit Web Smart PoE+ Switch

Dimensions

440 x 251 x 44.45 mm (17.3 x 9.9 x 1.75 in.)

Rack mountable 1U height

Weight

3.6 kg (7.9 lbs.)

Isi Paket Produk TRENDnet TPE-1620WS 16-Port Gigabit Web Smart PoE+ Switch

Package Contens :

TPE-1620WS

Quick Installation Guide

CD-ROM (Utility & User’s Guide)

Power cord (1.8 m/6 ft.)

Rack mount kit

Ringkasan produk TRENDnet TPE-1620WS 16-Port Gigabit Web Smart PoE+ Switch

TRENDnet ini 16 -Port Gigabit Web Cerdas PoE + Beralih model TPE - 1620WS , memberikan kapasitas switching 32 Gbps dengan 16 port PoE + Gigabit dan dua slot SFP bersama . Siap beralih IPv6 ini menawarkan manajemen yang canggih lalu lintas , pemecahan masalah , keamanan , hemat energi GreenNet , dan fitur pemantauan dengan biaya berkurang .



Kemudahan penggunaan
Desain Perangkat Keras

Rack perumahan mountable fitur 16 Gigabit PoE + port ( otomatis memasok PoE + ( 30 Watts ) dan PoE ( 15 Watts ) ) dan dua slot SFP bersama
IPv6 Ready
Switch ini mendukung konfigurasi dan tetangga jaringan IPv6 dukungan IPv6
Manajemen Lalu Lintas
Sebuah berbagai konfigurasi jaringan yang mendukung dengan : agregasi link 802.3ad , Asymmetric VLAN , 802.1Q VLAN , VLAN Voice , GVRP , 802.1p Class of Service ( CoS ) , dan QoS penjadwalan antrian
Penyelesaian Masalah
Real time grafik perbandingan lalu lintas , grafik kelompok kesalahan , dan kabel yang mudah pembantu tes diagnostik di tips cepat
Keamanan
Fitur seperti ACL , SSL , MAC / port filtering , 802.1X , TACACS + , dan RADIUS yang kompatibel dengan kontrol keamanan berlapis
Pemantauan
RMON , SNMP , SNMP Trap, dan Port Mirroring solusi monitoring administrator dukungan
Penghematan Energi
Hingga 70% teknologi hemat energi GreenNet

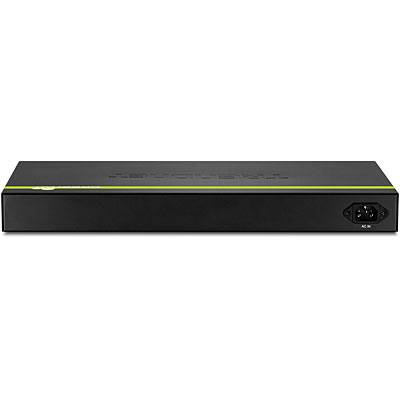

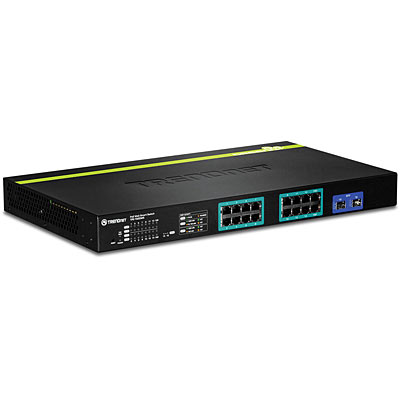

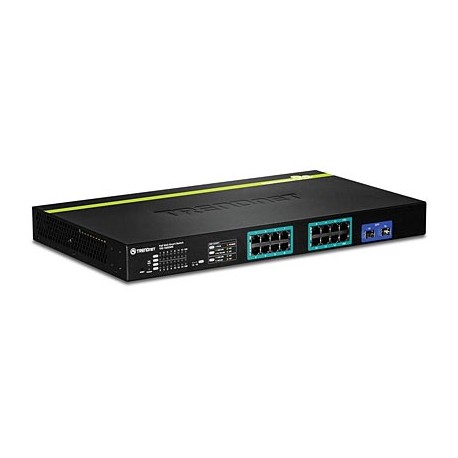

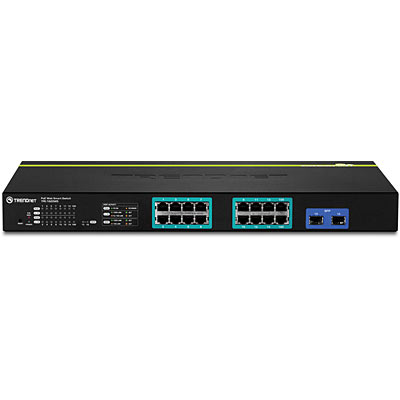

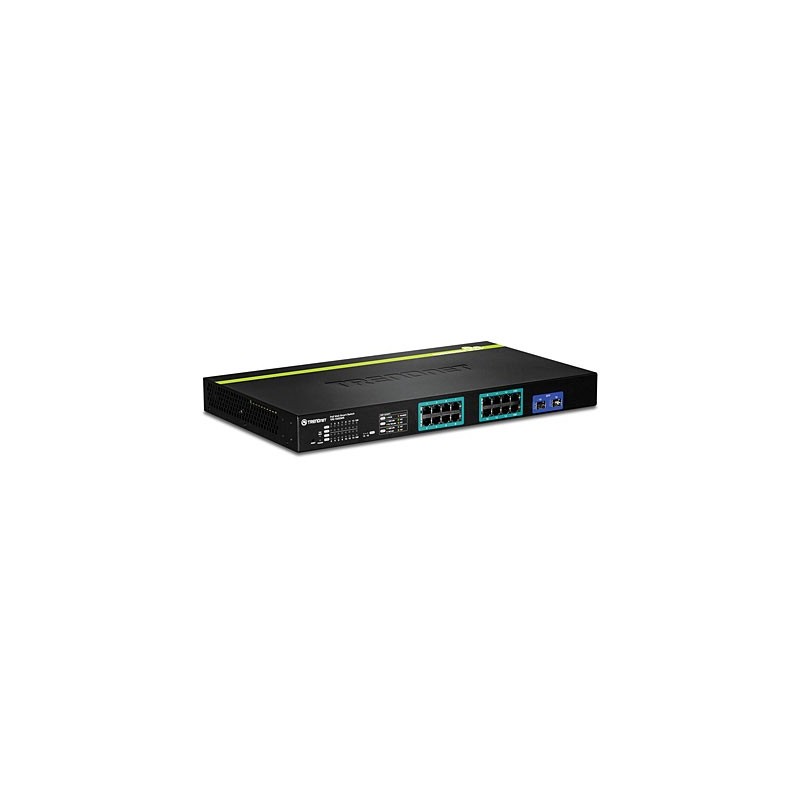

Gallery Image Produk TRENDnet TPE-1620WS 16-Port Gigabit Web Smart PoE+ Switch
