TRENDnet TFC-1600MM SNMP Management Module

Kode Produk: 32218

Referensi EV0218/ET5/L10

Kondisi: Produk baru

Lebih detail

Kirim ke teman

Kirim ke teman

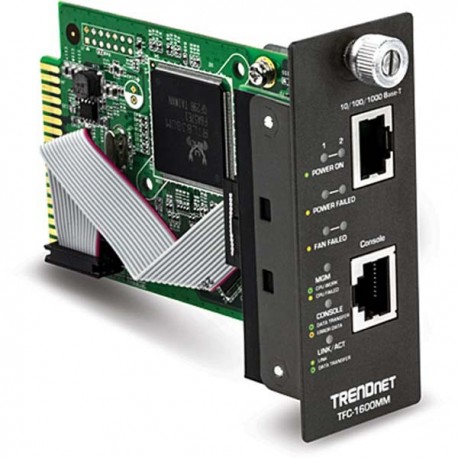

TRENDnet TFC-1600MM SNMP Management Module
TRENDnet TFC-1600MM SNMP Management Module

Penerima: :

Nama teman Anda ^* :

Alamat email teman Anda ^* :

^* Harus diisi

atau Batal
Bagikan di Facebook
Cetak

Info lainnya

Spesifikasi TRENDnet TFC-1600MM SNMP Management Module

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab
Device Interface	Line card interface for TRENDnet TFC-1600 slot only 1 x Gigabit port 1 x RJ-45 console port (Command Line Interface) LED indicators
Data Transfer Rate	Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit Ethernet: 2000 Mbps (full duplex)
Performance	RAM buffer: 512 KB HOL Blocking Prevention
Management	HTTP Web based GUI CLI (Console / Telnet) SNMP v1, v2c, v3 Supports IP, TFTP, ICMP, TCP / UDP, ARP, and HTTP protocols
Chassis Monitoring	Part Number Description Power Status Revision Chassis Reset
Converter Module Monitoring	Link Status Slot Occupied Revision Converter Type Part Number
SNMP Controls	Link Loss Carry Forward / Link Loss Return Module Name Reset Module Download software via HTTP IP Address / Subnet Mask / Default Gateway Redundant Backup Telnet to console commands
Event Notification	Cold / Warm Start Link Up / down Authentication Failure Power Supply On / Off, Connected / Disconnected Module Connected / Disconnected, Unknown, Failure
MIB	MIB II SNMPv2-SMI MIB ENTERPRISE MIBs INET-ADDRESS MIB RFC IF MIB SNMP-FRAMEWORK MIB SNMPv2-TC MIB
MTBF	2,709,617 hours
Operating Temperature	0 – 40 °C (32 - 104 °F)
Operating Humidity	Max. 90% non-condensing
Certifications	CE FCC
Warranty	1 year limited

Berat dan ukuran TRENDnet TFC-1600MM SNMP Management Module

Weight	108 g (3.8 oz)
Dimensions	128 x 35 x 88 mm (5.04 x 1.38 x 3.46 in.) 2U height (for TRENDnet TFC-1600 chassis slot only)

Isi Paket TRENDnet TFC-1600MM SNMP Management Module

Package Contents	TFC-1600MM CD-ROM (MIB & User’s Guide) RJ-45 to RS-232 console cable (100 mm / 3.94 in.)

Ringkasan Produk TRENDnet TFC-1600MM SNMP Management Module

Modul TFC1600MM mendukung pengelolaan konverter media dan catu daya yang terpasang pada sasis serat TFC-1600. Modul ini memberikan akses instan ke status kipas pendingin dan power supply, dan memungkinkan pengguna untuk mengkonfigurasi dan memantau keadaan chassis melalui workstation dengan dukungan SNMP, atau dari PC melalui browser web.
