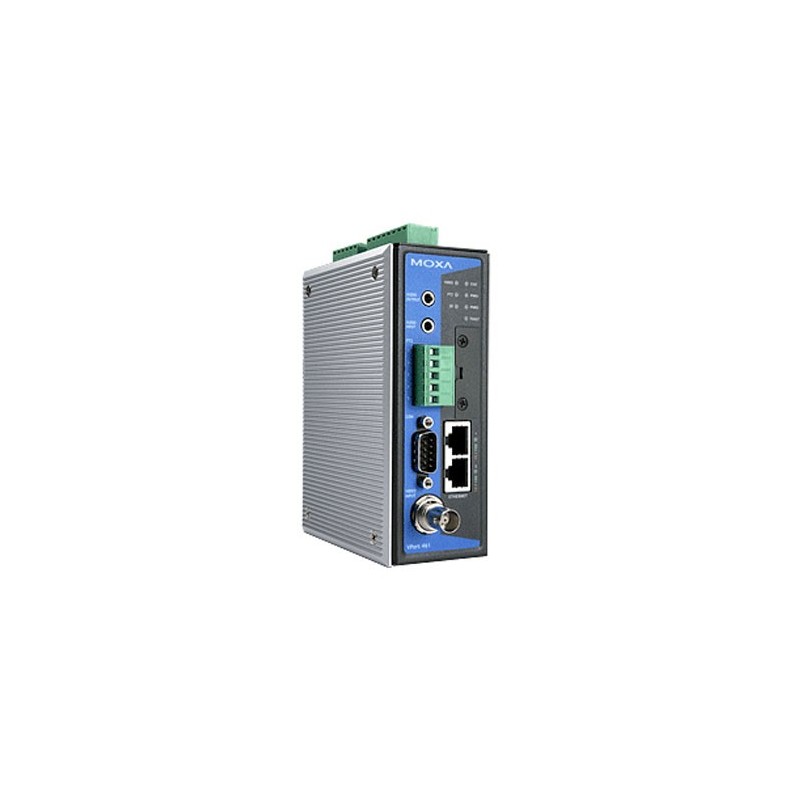

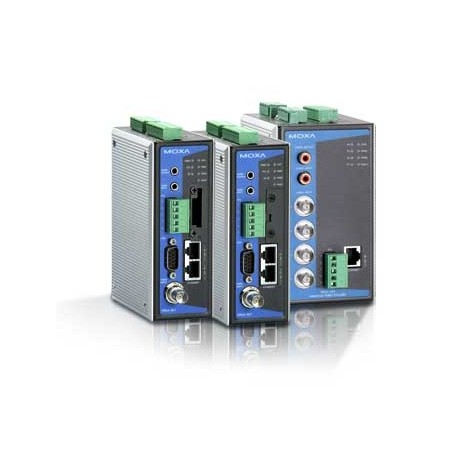

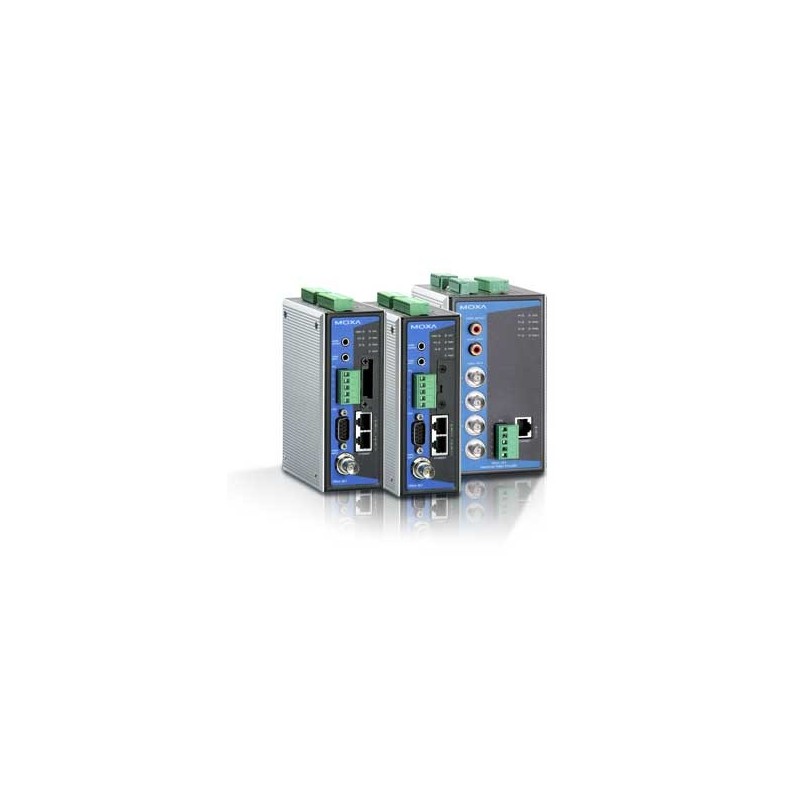

Moxa VPort 451

Specification Moxa VPort 451

Para VPort 451 adalah 1-channel industri video encoder dengan MJPEG dan MPEG4 kompresi video yang menyediakan sampai 3 video stream (2 MPEG4, 1 MJPEG) secara bersamaan. Aliran video dapat digunakan untuk tujuan yang berbeda, seperti melihat, merekam, dan menganalisis. Selain itu, latency video di bawah 200 milidetik membuat VPort 451 solusi optimal untuk aplikasi mission-critical video, untuk itu suatu tampilan video real-time adalah kunci. Selain itu, rancangan kasar industri, yang mencakup -40 sampai 75 ° C suhu operasi, built-in port Ethernet serat, IP30 perlindungan faktor bentuk, dan sertifikasi industri, membuat VPort 451 terlah cocok untuk lingkungan yang keras.

fitur

•      Tiga video stream simultan untuk MPEG4 dan MJPEG
•      Video streaming sampai dengan 30/25 frame / detik pada D1 penuh (NTSC: 720 x 480; PAL: 720x576) resolusi
•      Video latency dibawah 200 ms
•      2 Ethernet port untuk kaskade dan port Ethernet redundansi
•      Kemampuan penyimpanan lokal dengan slot kartu SD
•      Industri desain dengan -40 sampai 75 ° C suhu operasi (tersedia segera)
•      Gratis VPort SDK PLUS didukung

• Video
Video Compression
MJPEG, MPEG4 (ISO/ IEC 14496-2)

Video Inputs
1, BNC connector

Video Outputs
over Ethernet

Video Streams
Max. of 3 video streams (2 encoders: 1 for MPEG4, 1 for MPEG4 and MJPEG)

NTSC/PAL
Auto-sensing or manual

• Video Resolution and FPS (frames per second) for a single stream
Note
The resolutions of the MPEG4 and MJPEG video streams from the 2nd encoder engine are the same, with a total FPS of 30 for NTSC and 25 for PAL.

Video Viewing
• Adjustable image size and quality
• Timestamp and text overlay

• Audio
Audio Inputs
1 Line-in or MIC-in with 3.5 mm phone jack

Audio Outputs
1 Line-out with 3.5 mm phone jack

Audio Format
Mono, PCM

• Network
Protocols
TCP, UDP, HTTP, SMTP, FTP, NTP, DNS, DHCP, UPnP, RTP, RTSP, ICMP, IGMPv3, QoS, SNMPv1/v2c/v3, DDNS, Modbus/TCP

Ethernet
2 10/100BaseT(X) auto negotiating RJ45 ports

• Serial Port
PTZ Ports
1, RS-232/422/485 port (terminal block connector), max. speed of 115.2 Kbps

COM Ports
1, RS-232/422/485 (DB9 female connector), max. speed of 115.2 Kbps

Console Port
1 RS-232 RJ45 port

• GPIO
Digital Inputs
2, max. 8 mA

High:
+13 to +30 V; Low: -30 to +3 V

Relay Outputs
2, max. 24 VDC @ 1 A

• LED Indicators
PWR1
Power 1

PWR2
Power 2

FAULT
Can be configured to correspond to system alarm, power failure, or disconnected network

VIDEO
Video input signal

PTZ
PTZ control signal

SD
SD card operation

• Local Storage
SD Socket
Standard SD socket, V2.0 (SDHC)

• Power Requirements
Input Voltage
2 24 VDC/VAC power inputs for redundancy

Power Consumption
Approx. 5.5 W

• Physical Characteristics
Housing
Metal, IP30 protection

Dimensions
52.98 x 135 x 105 mm (2.09 x 5.31 x 4.13 in)

Weight
900 g

Installation
DIN-Rail mounting, wall mounting (with optional kit)

• Alarms
Video Motion Detection
Includes sensitivity tuning

Video Loss
Video loss alarm

Scheduling
Daily repeat timing schedule

Imaging
JPEG snapshots for pre/trigger/post alarm images

Email/FTP Messaging
Automatic transfer of stored images via email or FTP with event-triggered actions

Custom Alarms
HTTP event servers and CGI events for setting customized alarm actions

• PAN/TILT/ZOOM
PTZ Camera Control
Via RS-232/422/485 PTZ port or COM port

PTZ Control Functions
PAN, TILT, ZOOM, FOCUS, moving speed, preset position (max. 25 positions), and 24 custom commands

PTZ Function Updates
Driver upload supported

Supported Device Protocols
Pelco D, Pelco P, Dynacolor DynaDome, Cohu, Custom Camera

Transparent PTZ Control
Control PTZ cameras with legacy PTZ control panel or keyboard connected to a PC or VPort decoder

• Security
Password
User level password protection

Filtering
By IP address

• Environmental Limits
Operating Temperature
Standard Models:
0 to 60°C (32 to 140°F)

Wide Temp. Models:
-40 to 75°C (-40 to 167°F)

Storage Temperature
-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity
5 to 95% (non-condensing)

• Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS
EN 61000-4-2 (ESD) Level 3,
EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 3,
EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3,
EN 61000-4-8,
EN 61000-4-11

Traffic Control
NEMA TS2 Section 2 (Pending)

Shock
IEC 60068-2-27

Freefall
IEC 60068-2-32

Vibration
IEC 60068-2-6

Note
Please check Moxa's website for the most up-to-date certification status.

• MTBF (mean time between failures)
Time
375,000 hrs

Database
Telcordia (Bellcore), GB 25°C

• Warranty
Warranty Period
5 years

• System Requirements
CPU
Pentium 4, 2.4 GHz or above

Memory
512 MB memory or above

OS
Windows XP/2000 with SP2 or above

Browser
Internet Explorer 6.x or above

Multimedia
DirectX 9.0c or above

• Software Bundled Free
VPort SDK PLUS
Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers.
