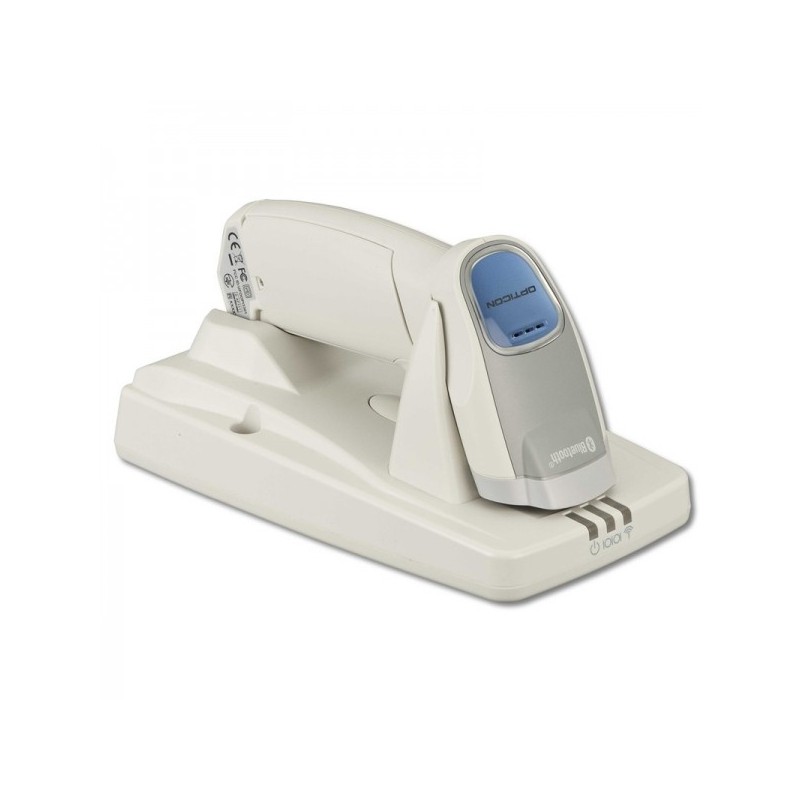

Opticon OPI3301 Bluetooth 2D CMOS Imager dengan Auto-Focus Scanner

Ringkasan Produk Opticon OPI3301 Bluetooth 2D CMOS Imager dengan Auto-Focus Scanner

OPI3301 tahan lama, namun nyaman untuk 2D Imager. Beratnya hanya 110 gram, yang sangat ringan untuk jenis pistol imager. Scanner padat ini tahan beban hingga 1,5 meter ke beton. Imager 1,3 megapiksel memberikan fleksibilitas untuk membaca semua standar 1D dan 2D barcode simbol dari orientasi apapun.

Plug & play
Plug and play kemampuan OPI3301 memungkinkan pengguna untuk dengan cepat terhubung dan mengoperasikan pemindai.

Spesifikasi Produk Opticon OPI3301 Bluetooth 2D CMOS Imager dengan Auto-Focus Scanner

Memory

• FlashROM
• 1 MB
• RAM

• 1 MB SDRAM

Operating indicators

• Visual
• 1 LED (red/green/blue)
• Non-visual

• Buzzer

Operating keys

• Entry options
• 1 scan key

Communication

• Bluetooth
• Ver. 2.0, SPP, output power class 2, range up to 10 m, 1 to 1 connection, master/slave mode, authentication and encryption

Power

• Current consumption
• 150mA (stand by), max 300 mA
• Rechargeable battery

• Lithium-Ion 3.7V 1100mAh
• Operating time

• Stand by: Approx 15 hours (with wireless connection).
• Reading: Approx. 10 hours (1 scan / 5 sec)
• Charging method

• Separate cradle CRD3301
• Battery charging time

• Ca. 3 hours (when charged with power supply), ca. 6 hours (when charged with USB)

2D Imager Optics

• 2D Light source
• Aiming laser diode, illumination LEDs
• 2D Scan method

• CMOS area sensor, 900 x 512 pixels, gray scale
• 2D Scan rate

• Up to 80 fps (excl. focusing)
• 2D Trigger mode

• Manual, multiple read, auto-trigger, stand detection
• 2D Image format

• Bitmap, JPEG
• 2D Reading pitch angle

• -50 to 0°, 0 to +50°
• 2D Reading skew angle

• -50 to 0°, 0 to +50°
• 2D Reading tilt angle

• 360°
• 2D Min. Resolution at PCS 0.9

• 0.127 mm / 5 mil
• 2D Min. PCS value

• 0.45/0.3
• 2D Field of view

• Horizontal 40º, Vertical 23º
• 2D Depth of field

• at Code 39 15 - 55 mm / 0.59 - 2.17 in (0.127 mm / 5 mil), 15 - 200 mm / 0.59 - 7.87 in (0.254 mm / 10 mil), 90 - 870 mm / 3.54 - 34.25 in (1.0 mm / 39 mil), at QR Code 15 - 170 mm / 0.59 - 6.69 in (0.339 mm / 13 mil)

Supported Symbologies

• Barcode (1D)
• JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/ Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
• Postal code

• Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET
• 2D code

• Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200/EC0-140), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code

Durability

• Temperature in operation
• -20 to 50 °C / -4 to 122 °F
• Temperature in storage

• -25 to 60 °C / -13 to 140 °F
• Humidity in operation

• 5 - 85% (non-condensing)
• Humidity in storage

• 5 - 85% (non-condensing)
• Ambient light immunity

• Fluorescent 10,000 lx max, Direct sun 100,000 lx max, Incandescent 10,000 lx max
• Drop test

• 1.5 m / 5 ft drop onto concrete surface
• Vibration test

• 10 - 100 Hz with 2G for 1 hour
• Protection rate

• IP 42

Physical

• Dimensions (w x h x d)
• 56 x 137 x 113 mm / 2.20 x 5.39 x 4.45 in
• Weight body

• Ca. 110 g / 3.9 oz (incl. battery)
• Case

• ABS, Black or White

Regulatory & Safety

• Product compliance
• CE, FCC, VCCI, RoHS, IEC 60825-1 Class 2, IEC 62471, IEC 60825-1 Class 1, IEC 60950-1
