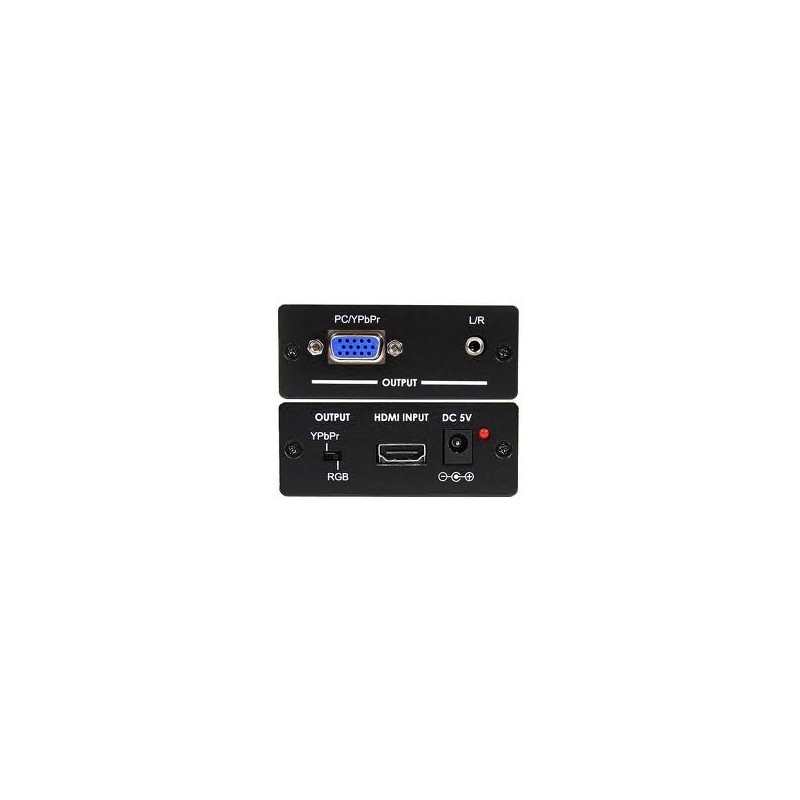

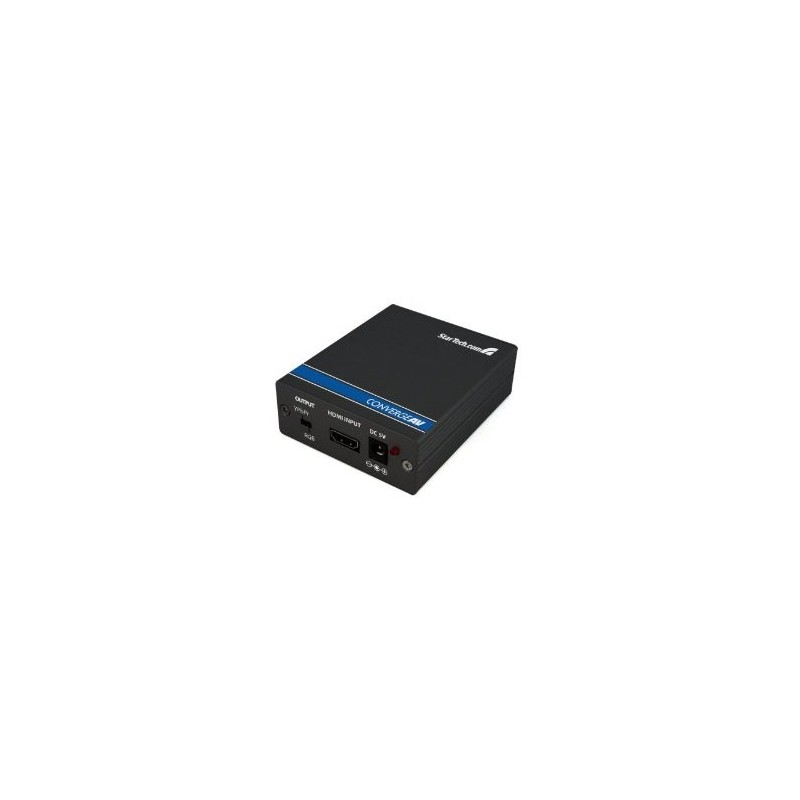

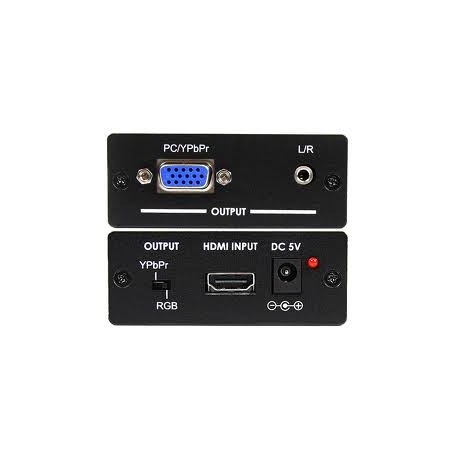

StarTech HDMI to VGA Video Converter with Audio HDMI2VGA HDMI Interface

Specification StarTech HDMI to VGA Video Converter with Audio HDMI2VGA HDMI Interface

Type:

•     Video Adapter/Converter

Features:

•     Supports VGA and Component (YPbPr) output conversion Compliant with HDMI 1.3, HDCP 1.1, and DVI Built-in EDID udio video are seperated on output

Ports In:

•     1 - HDMI Female

Ports Out:

•     1 - DB15 High Density Female 1 - Phono 3.5 mm Female

Specifications:

•     Input/Output PC Resolution: - 640x480 (59, 60, 72, 75, 85Hz) - 800x600 (56, 60, 72, 75, 85Hz) - 1024x768 (60, 70, 75, 85Hz) - 1152x864 (70, 75, 85Hz) - 1280x800 (60Hz) - 1280x1024 (60, 75, 85Hz) - 1440x900 (60Hz) - 1600x1200 (60Hz) - 1680x1050 (60Hz) - 1920x1200 (60Hz) Input/Output HD Resolution: - 480i/480p (60Hz) - 576i/576p (50Hz) - 720p (50, 60Hz) - 1080i (50, 60Hz) - 1080p (50, 60Hz) Color: Black Product Dimensions: 3.62 in x 2.99 in x 2.99 in Product Weight: 6.07 oz [172 g] Input Voltage: Universal ...

Learn more about the STARTECH HDMI2VGA
Model
Brand

•     StarTech

Model

•     HDMI2VGA

General
Type

•     Video Adapter/Converter

Interface

•     HDMI

Features
Features

•     Supports VGA and Component (YPbPr) output conversion
•     Compliant with HDMI 1.3, HDCP 1.1, and DVI
•     Built-in EDID
•     udio video are seperated on output

Specifications
Ports In

•     1 - HDMI Female

Ports Out

•     1 - DB15 High Density Female
•     1 - Phono 3.5 mm Female

Specifications
    Input/Output PC Resolution:

•     - 640x480 (59, 60, 72, 75, 85Hz)
•     - 800x600 (56, 60, 72, 75, 85Hz)
•     - 1024x768 (60, 70, 75, 85Hz)
•     - 1152x864 (70, 75, 85Hz)
•     - 1280x800 (60Hz)
•     - 1280x1024 (60, 75, 85Hz)
•     - 1440x900 (60Hz)
•     - 1600x1200 (60Hz)
•     - 1680x1050 (60Hz)
•     - 1920x1200 (60Hz)

Input/Output HD Resolution:

•     - 480i/480p (60Hz)
•     - 576i/576p (50Hz)
•     - 720p (50, 60Hz)
•     - 1080i (50, 60Hz)
•     - 1080p (50, 60Hz)

Color:

Black

Product Dimensions:

3.62 in x 2.99 in x 2.99 in

Product Weight:

6.07 oz [172 g]

Input Voltage:

Universal 115 ~ 230 AC

LED Indicators:

1 - Power (Red)

Plug Type:

M

Power Adapter Included:

Yes

Center Tip Polarity:

Positive

Audio In:

HDMI LPCM 2-channel

Audio Out:

3.5mm Stereo

HDMI In Color Space:

RGB, YUV

Output Voltage:

5 DC

Humidity:

0~60% RH

Operating Temperature:

0°C to 40°C (32°F to 104°F)

Storage Temperature:

-10°C to 60°C (14°F to 140°F)

Manufacturer Warranty
Parts

•     1 year limited

Labor

•     1 year limited
