HDMI Matrix Switch over CAT5

Specification HDMI Matrix Switch over CAT5

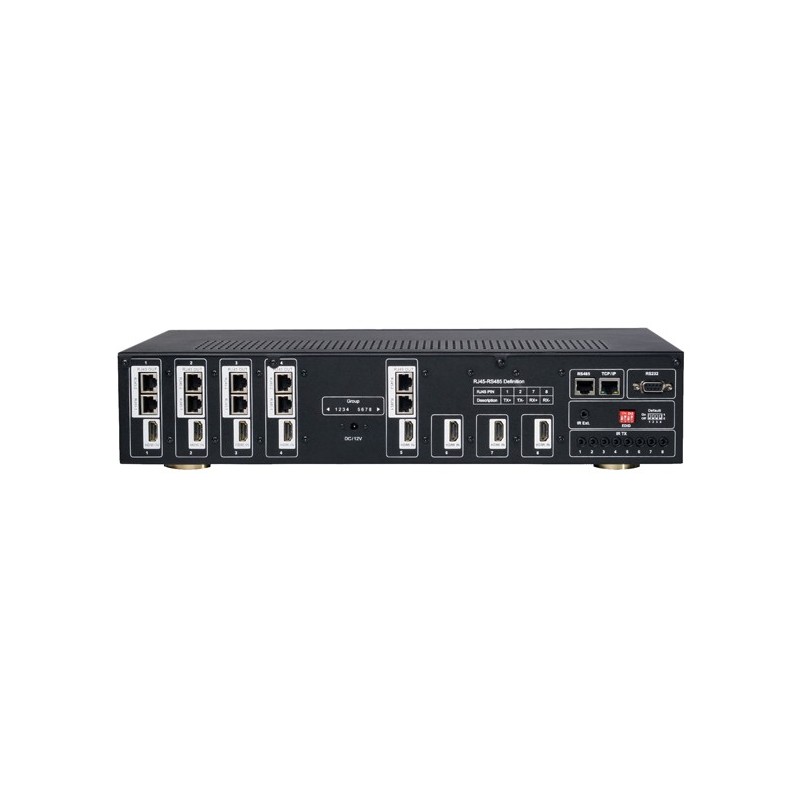

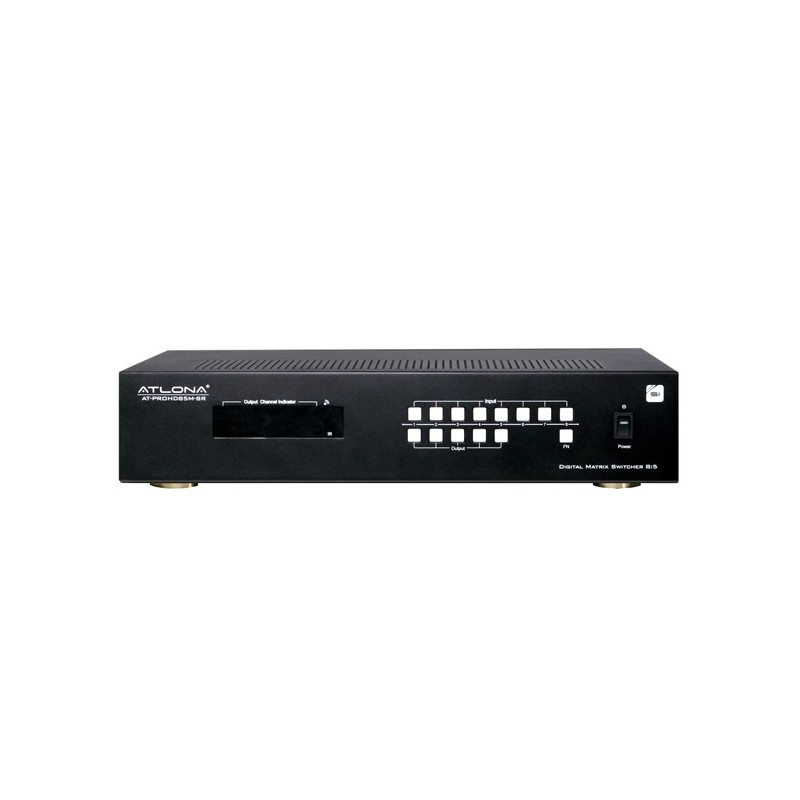

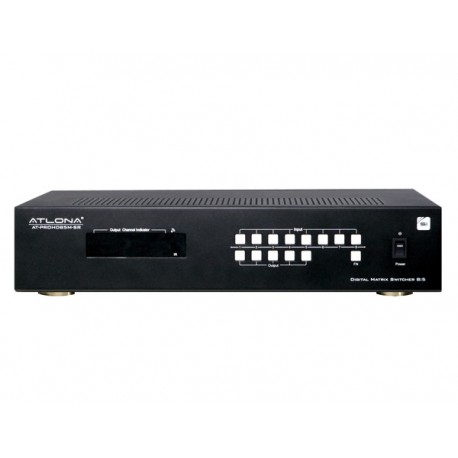

Atlona Teknologi AT-PROHD44M-SR adalah 4x4 Matrix HDMI Switcher lebih Twisted Pair dirancang untuk bekerja sebagai switcher untuk beberapa Audio / Video sumber dan menampilkan. Unit ini mampu switching sinyal HDMI antara empat sumber (seperti: BluRay player, HD set top box, sistem permainan, dll) dan empat menampilkan. Karena merupakan switch matriks, salah satu atau semua 4 input secara bersamaan dapat beralih ke salah satu atau semua output. Seiring dengan mendukung HDMI 1.3 dan HDCP Kepatuhan, switcher ini akan mendukung video definisi tinggi dalam beberapa resolusi hingga 1080p atau 1920x1200 dan 3D. Lima mode switching tersedia termasuk tombol panel depan, IR lokal, IR menelepon kembali dari lokasi terpencil, RS485 dan TCP / IP. AT-PROHD44M-SR mampu routing sinyal IR dari daerah terpencil untuk lokasi utama di mana switcher adalah. Penghasil emisi IR / receiver dapat mengendalikan saklar serta sumber sebelahnya. Para Atlona AT-PROHD44M-SR memiliki 4 output ganda. *


* Output Dual: HDMI + Ganda Pasangan keluaran Pair mana keduanya aktif pada waktu yang sama. Setiap output bisa dihubungkan ke baik 2 menampilkan atau AVR dan Tampilan sebuah, namun sinyal dari kedua keluaran akan sama.

NOTE1: AT-PROHD44M-SR dilengkapi dengan 4 modul x Receiver, tidak perlu membeli perangkat keras tambahan

Note2: AT-PROHD44M-SR mampu bekerja pada kabel CAT5/6/7 tunggal, namun software khusus diperlukan (IR pass-through tidak akan berfungsi lagi dalam kasus ini). Silakan download petunjuk.

Matrix Switcher Comparison

Key Features:
    3D Capable
    HDMI 1.3b, HDCP and EDID compatible
    4 x CAT5/6/7 receivers are included
    Allows up to four HDMI sources to be independently switched to four HDMI outputs, where each output is featured with HDMI and Twisted pair connections and both are active at the same time
    The four outputs can show the same or different sources simultaneously
    Supports high definition resolutions up to 1920x1200 or 1080p
    Supports all latest HDMI audio formats including Dolby TrueHD and DTS-HD
    Switcher is featured with IR call back function which allows each remote location to send IR signals through CAT5/6/7 receivers back to the switch and further down to the nearby sources
    Each CAT5/6/7 output can go up to 165ft @ 1080p on CAT5/6 cables and up to 250ft @ 1080p on the CAT7 cable (tested with Tyco wire). If more distance is required, Atlona offers CAT5/6/7 repeater unit which can double the distance and allow chain up to 6 units
    Each input and output port is able to support HDMI or DVI signal. For DVI signal adapter will be required
    Six switching modes: panel buttons, local IR, IR call back from remote locations, RS485, RS232and TCP/IP.
    Rack Mountable, comes with 19-inch Rack-Ears

Technical Specifications:
    Video Formats Supported: HDTV: 480p/576p/720p/1080i/1080p (50/60Hz)
    Computer: 640x480, 800x600, 1024x768, 1280x800, 1280x768, 1280x1024, 1680x1050, 1600x1200, 1920x1080, 1920x1200 and many others (use EDID learning function to pass other resolutions)
    Audio Format Supported: All latest HDMI audio formats including Dolby TrueHD and DTS-HD
    HDMI Video Format: HDMI 1.3
    Maximum Output Distance (HDMI Outputs): 55ft
    Maximum Output Distance (RJ45 Outputs): 165ft @ 1080p on CAT5/6 cables and up to 250ft @ 1080p on the CAT7 cable (Tested with Tyco wire)
    Dimensions (inch): 17.3’’L×7.9’’W×1.7’’H – 1U
    Main Unit Weight/Receiver: 6.5LB/0.3LB
    Input DDC Signal: 12v/4A (main unit) and 5v/1A (receivers)
    Power Consumption: 30W
    Operating Temperature Range: -5 to +35°C (-41 to +95 °F)
    Operating Humidity Range: 5 to 90 % RH (no condensation)
    Input Video Signal: 0.5-1.0 volts p-p

Package Includes:
    AT-PROHD44M-SR
    4 x AT-PROHD-REC (CAT5/6/7 receivers)
    4 x 5V/1A Power Supply (110/240v universal) – for receivers
    1 x 12V/4A Power Supply (110/240v universal) – for the main switch
    1 x IR Remote
    1x IR receiver extension cable
    4x IR (IR emitter cables)
    1x RS232 to RS485 converter
    1 x USB to RS232 adapter cable
    Operation Manual
    1 X rack mounting ears
