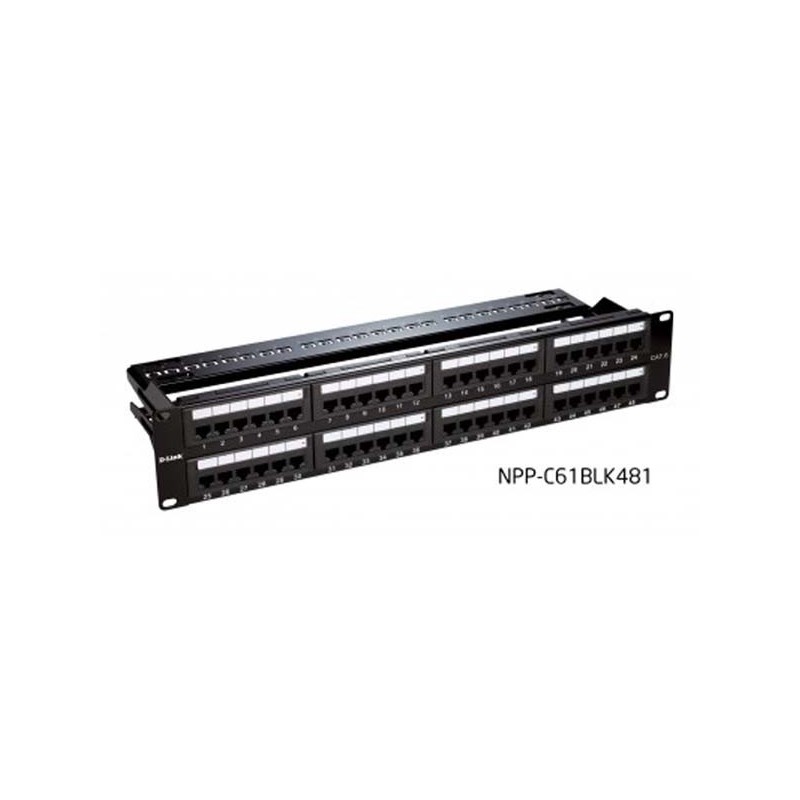

D-Link NPP-C61BLK481 Patch Panel CAT6 UTP Keystone 48 Port Fully Loaded
Kode Produk: 31960
EV12117/ET6/L10Produk baru
Info lainnya
Spesifikasi D-Link NPP-C61BLK481 Patch Panel CAT6 UTP Keystone 48 Port Fully Loaded
| Category | Cat6 |
| Loaded/Unloaded/Fully Loaded | Fully Loaded |
| Port | 48 port |
| Unshielded/Shilded | Unshielded |
| Features | Hand screw, easy to open cover Eight port RJ45 modules applied Jack shutter to keep dust away Friendly installation, right angle between IDCs and RJ45 keystone jacks ID stripes for identifying port allocations IDC compatible with 110&Krone tool Mounts in standard 19” racks RoHS/UL certified |
| Panel | SECC, 1.2mm thickness with optional color painted |
| Identification | ID plate: PVC, Transparent color with paper ID Bracket: ABS+PC, UL 94V-0 |
| RJ45 Jack | Housing: PBT+ Glass Fiber, UL94V-0 Contact Bracket: PBT+ Glass Fiber, UL94V-0 |
| RJ45 Jack Contact: | Material: Phosphor Bronze with Nickel plated Finish: 50 micro-inches Gold plated on plug contact area RJ45 Jack Shield: Bronze with Nickel plated Dust cover: PC, UL94V-2 |
| IDC: | Housing: PC+ Glass Fiber, UL 94V-2 Terminal: phosphor Bronze with Tin Plated Ground wire: 18 AWG wire, with Green/Yellow striped color PCB: FR4, UL 94V-0 |
| Performance | T568A & T568B wiring scheme on PCB Insertion force: 30N max. (IEC 60603-7-5) Retention strength: 7.7 kg between jack and plug Operating temperature: -10C to 60C ( ISO/IEC 11801, ANSI/TIA/EIA 568B.2) |
| Life ( mating cycles): | a. Jack: 750 cycle’s min (ISO/IEC 11801, IEC 60603-7-5) b. IDC: suitable for 22-26 AWG stranded and solid wire, compatible with both 110& Krone punch down tools The Cat6 transmission performance is in compliance with the ANSI/TIA/EIA 568B.2 -1 standard |
