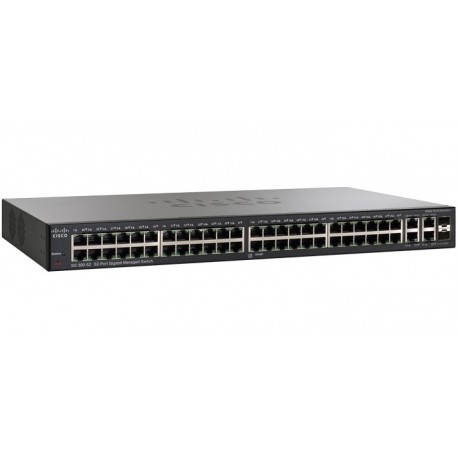

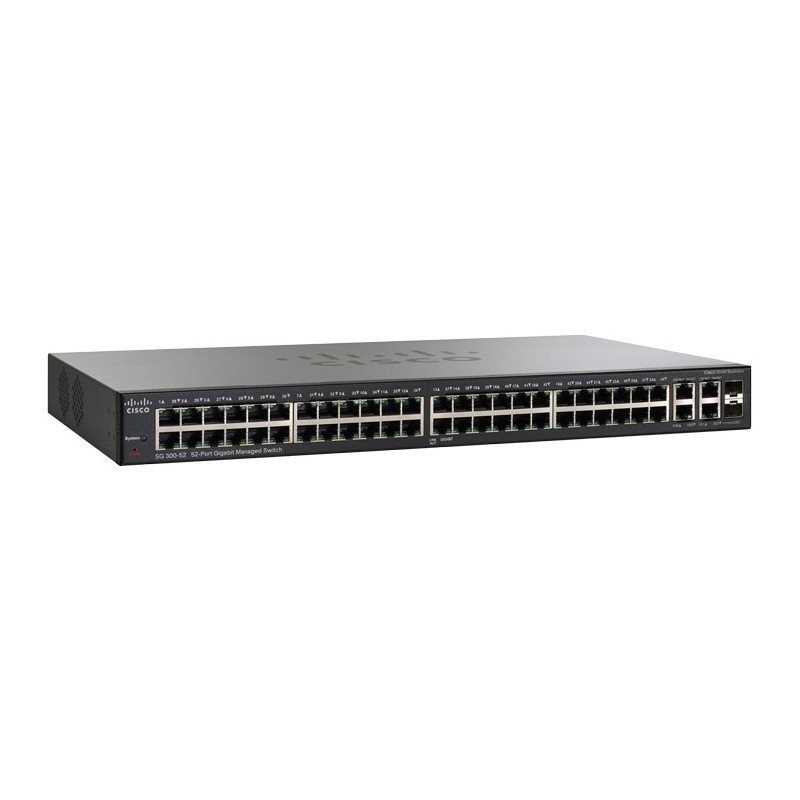

Cisco SG300-52 52-Port Gigabit Managed Switch (SRW2048-K9-EU)
Kode Produk: 32296
AI0318Produk baru
- 300 Series Switch
- 50 Gigabit+2 Gigabit Ethernet combo
- 10/100/1000Mbps
Info lainnya
.jpg)
Spesifikasi Cisco SG300-52 52-Port Gigabit Managed Switch (SRW2048-K9-EU)
| Performance | Capacity in Mpps (64-byte packets) : 77.38 Switching Capacity in Gbps : 104 |
| Layer 2 Switching | Spanning Tree Protocol: Standard 802.1d Spanning Tree support Fast convergence using 802.1w (Rapid Spanning Tree), enabled by default Multiple Spanning Tree instances using 802.1s Port Grouping: Support for IEEE 802.3ad Link Aggregation Control Protocol Up to 8 groups Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation VLAN: Support for up to 256 VLANs simultaneously (out of 4096 VLAN IDs) Port-based and 802.1Q tag-based VLANs MAC-based VLAN Management VLAN Private VLAN Edge, also known as protected ports, with multiple uplinks Guest VLAN Unauthenticated VLAN Voice VLAN: Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS Q-in-Q VLAN: VLANs transparently cross a service provider network while isolating traffic among customers Generic VLAN Registration Protocol/Generic Attribute Registration Protocol: Protocols for automatically propagating and configuring VLANs in a bridged domain Dynamic Host Configuration Protocol Relay at Layer 2: Relay of DHCP traffic to DHCP server in different VLAN. Works with DHCP Option 82 Internet Group Management Protocol Versions 1, 2 and 3 snooping: IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 256 multicast groups (source-specific multicasting is also supported) IGMP Querier: IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router Head-of-Line (HOL) Blocking: HOL blocking prevention |
| Layer 3 | IPv4 Routing : Wirespeed routing of IPv4 packets Up to 32 static routes and up to 32 IP interfaces Classless Inter-Domain Routing : Support for CIDR DHCP Relay at Layer 3 : Relay of DHCP traffic across IP domains User Datagram Protocol Relay : Relay of broadcast information across Layer 3 domains for application discovery or relaying of BootP/DHCP packets |
| Security | Secure Shell Protocol: SSH secures Telnet traffic to and from the switch; SSH v1 and v2 are supported Secure Sockets Layer: SSL support: Encrypts all HTTPS traffic, allowing highly secure access to the browser-based management GUI in the switch IEEE 802.1X (Authenticator role): RADIUS authentication and accounting, MD5 hash; guest VLAN; unauthenticated VLAN, single/multiple host mode and single/multiple sessions Supports time-based 802.1X Dynamic VLAN assignment STP Bridge Protocol Data Unit Guard: A security mechanism to protect the network from invalid configurations. A port enabled for BPDU Guard is shut down if a BPDU message is received on that port Secure Core Technology: Ensures that the switch will receive and process management and protocol traffic no matter how much traffic is received Layer 3 Isolation: Allow/disallow routing between IP subnets or directly connected IP networks Layer 2 Isolation Private VLAN Edge (PVE) with community VLAN: PVE (also known as protected ports) provides Layer 2 isolation between devices in the same VLAN, supports multiple uplinks Port Security: Locks MAC addresses to ports, and limits the number of learned MAC addresses RADIUS/TACACS+: Supports RADIUS and TACACS authentication. Switch functions as a client Storm Control: Broadcast, multicast and unknown unicast DoS Prevention: DoS attack prevention Congestion Avoidance: A TCP congestion avoidance algorithm is required to minimize and prevent global TCP loss synchronization. ACLs: Support for up to 512 rules Drop or rate limit based on source and destination MAC, VLAN ID or IP address, protocol, port, differentiated services code point/IP precedence, TCP/ UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol packets, IGMP packets, TCP flag |
| Quality of Service | Priority Levels : 4 hardware queues Scheduling : Strict priority and weighted round-robin Queue assignment based on DSCP and class of service (802.1p/CoS) Class of Service : Port based; 802.1p VLAN priority based; IPv4/v6 IP precedence/type of service/DSCP based; Differentiated Services (DiffServ); classification and re-marking ACLs, trusted QoS Rate Limiting : Ingress policer; egress shaping and rate control; per VLAN, per port and flow based |
| Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad LACP, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP),IEEE 802.1Q/p VLAN, IEEE 802.1w RSTP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 879, RFC 896, RFC 826, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 922, RFC 920, RFC 950, RFC 951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1157, RFC 1350, RFC 1533, RFC 1541, RFC 1542, RFC 1624, RFC 1700, RFC 1867, RFC 2030, RFC 2616, RFC 2131, RFC 2132, RFC 3164, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 2576, RFC 4330, RFC 1213, RFC 1215, RFC 1286, RFC 1442, RFC 1451, RFC 1493, RFC 1573, RFC 1643, RFC 1757, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2233, RFC 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 1157, RFC 1493, RFC 1215, RFC 3416 |
| Power Consumption | Power Savings Mode : Energy Detect Short Reach Power Consumption Worst Case : 110V=64.1W 220V=63.7W Heat Dissipation (BTU/hr) : 218.7 |
| Ports | Total System Ports : 52 Gigabit Ethernet RJ-45 Ports : 50 Gigabit Ethernet Combo Ports (RJ-45 + SFP) : 2 Gigabit Ethernet Combo |
| Buttons | Reset button |
| Cabling Type | Unshielded twisted pair Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5 Ethernet or better for 1000BASE-T |
| LEDs | System, Link/Act, Speed |
| Flash | 16 MB |
| CPU | 128 MB memory |
| Packet Buffer Memory | 8 MB x 2 |
| Power Supply | 100-240V 47-63 Hz, internal, universal |
Berat dan ukuran Cisco SG300-52 52-Port Gigabit Managed Switch (SRW2048-K9-EU)
| Dimensions (DxWxH) | 440 x 36.83 x 257 mm |
| Weight | 3.91 kg |
