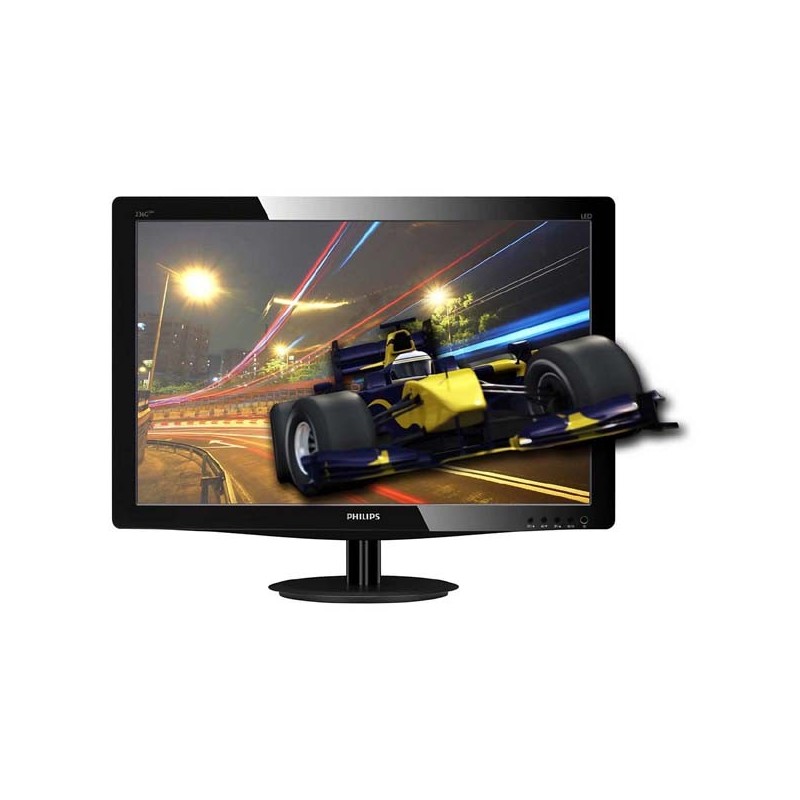

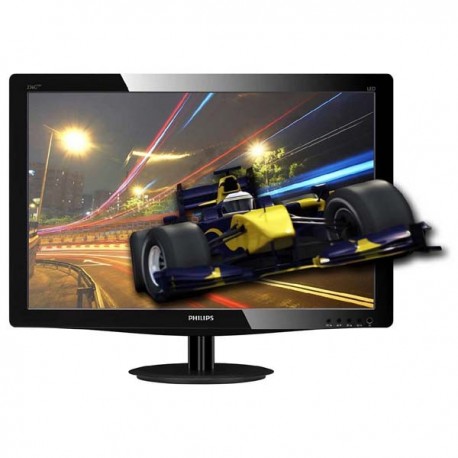

Philips 236G3DHSB 23 Inch 3D

Spesifikasi produk Monitor Philips 236G3DHSB 23 Inch 3D

Picture/Display
LCD panel type

• TFT-LCD

Backlight type

• W-LED system

Panel Size

• 23 inch / 58.4 cm

Aspect ratio

• 16:9

Optimum resolution

• 1920 x 1080 @ 60Hz

Response time (typical)

• 5  ms

SmartResponse

• 2 ms in 2D mode (Gray to Gray)

Brightness

• 250  cd/m²

Contrast ratio (typical)

• 1000:1

SmartContrast

• 20,000,000:1

Pixel pitch

• 0.265 x 0.265 mm

Viewing angle

• 170º (H) / 160º (V)
• @ C/R > 10

3D Viewing angle

• 80º (H) / 12º (V)
• 3D CT<10

Picture enhancement

• SmartImage

Display colors

• 16.7 M

Effective viewing area

• 509.2 (H) x 286.4 (V) mm

Scanning Frequency

• 30 - 83 kHz (H) / 50 - 75 Hz (V)

sRGB

• Yes

Dimensions
Product with stand (mm)

• 566 x 426 x 219  mm

Product without stand (mm)

• 566 x 355 x 54  mm

Packaging in mm (WxHxD)

• 615 x 441 x 115  mm

Weight
Product with stand (kg)

• 3.26  kg

Product without stand (kg)

• 3.03  kg

Product with packaging (kg)

• 4.61  kg

Sustainability
Environmental and energy

• EPEAT Silver
• RoHS
• EnergyStar 5.0
• Lead-free
• Mercury Free

Recyclable packaging material

• 100  %

Cabinet
Color

• Black

Finish

• Glossy/Texture

3D Requirements
Software

• Free Tridef 3D software bundle

PC hardware

• Requires AMD/nVidia VGA card*

Auto 3D

• Requires HDMI 1.4a

Connectivity
Signal Input

• HDMIx2
• VGA (Analog )

Sync Input

• Separate Sync
• Sync on Green

Audio (In/Out)

• HDMI audio out

Convenience
User convenience

• SmartImage
• 3D
• Power On/Off
• Input
• Menu

OSD Languages

• English
• French
• German
• Italian
• Portuguese
• Russian
• Simplified Chinese
• Spanish

Other convenience

• Kensington lock

Plug & Play Compatibility

• DDC/CI
• Mac OS X
• sRGB
• Windows 7

Stand
Tilt

• -5/+20  degree

Power
On mode

• 23.85 W (typical) (energyStar 5.0 test method)

Standby mode

• 0.5 W (typ.)

Off mode

• <0.3 W

Power LED indicator

• Operation - White
• Standby mode- White (blinking)

Power supply

• 100-240VAC, 50-60Hz
• Built-in

Operating conditions
Temperature range (operation)

• 0°C to 40°C  °C

Temperature range (storage)

• -20°C to 60°C  °C

Relative humidity

• 20%-80  %

MTBF

• 30,000  hour(s)

Compliance and standards
Regulatory Approvals

• BSMI
• CE Mark
• FCC Class B
• GOST
• PSB
• SASO
• SEMKO
• TUV Ergo
• TUV/GS
• UL/cUL
• WEEE
