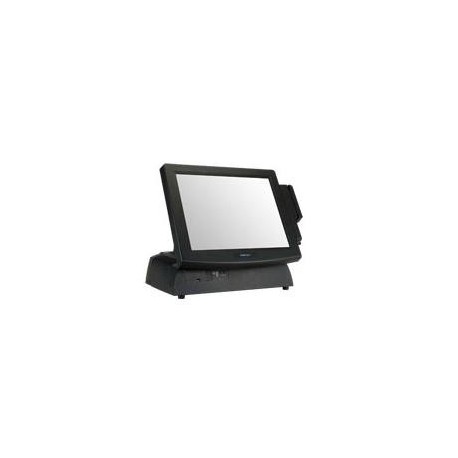

POSIFLEX FT-6615

Specification POSIFLEX FT-6615

Posiflex memberikan FT-6600 kipas bebas seri sebagai terminal POS RAID.
FT-6600 seri fitur fungsi backup data lengkap seperti RAID, UPS dan hot-swap HDD untuk aplikasi penyimpanan sensitif. Built-in fungsi UPS tertanam pada papan utama yang dikembangkan oleh Posiflex untuk stabilitas yang lebih baik daripada yang lain.

FT-6600 series mendukung Intel Celeron-M 1,5 GHz CPU, memori 2 GB, 15 "resistif (Atau IR) sentuh LCD di kandang kuat. Seri FT-6600 juga mendukung pilihan perangkat serbaguna seperti MSR, built-in kartu memori CF reader, dan berbagai konektivitas untuk memenuhi berbagai aplikasi.

Produk ini cocok untuk segmen pasar, yang diperlukan untuk tingkat yang lebih tinggi perlindungan data, misalnya untuk Sektor Publik, untuk Retail 24-hrsx365 hari operasi, Perhotelan dll

•     Resistive or IR touch screen : 15” LCD 1024 x 768 resolution
•     Equipped with Intel Celeron-M 1.5 GHz CPU, 2 GB memory
•     Fan-free design boasting quiet and anti-dust features
•     Patented aluminum die casting base design for efficient cooling
•     RAID 1 (Disk Mirroring) support with hot-swap HDD to backup important data
•     UPS (Embedded on main board developed by Posiflex) support to avoid sudden loss of power during transaction
•     Front access:
•     CF card slot and USB port
•     Brightness control
•     Power, HDD, LAN status LEDs
•     Gear button to adjust the LCD tilt angle from 20° to 45°
•     Rear cable cover for safety and neat outlook

Processor
Celeron M 1.5GHz W/ 1MB cache

System Memory
2 G DDR2 SDRAM, DIMM x 2

Video Memory
Share system memory up to 128 MB

Power Supply
+12 VDC power adaptor, 80 W

Speakers
Built-in

OS support
WEPOS, POSReady, Windows XP pro, Linux, Win 7

Compliance
FCC-A, CE-A, RoHs, WEEE

Display
LCD
15” TFT LCD Panel, 1024 x 768 resolution

Touch Sensor
Resistive

Touch Controller
USB interface

Brightness Control
Either by hardware push button switch control or by software control

Tilt Adjustment
From 20° to 45°

Expansion
Storage Device
80G SATA HDD x 2

Connectivity
Audio Port
Built-in:2 internal 2W speakers with stereo audio amplifier
and Mic. in / line out ports

CF card slot
(TypeⅡ, memory card only)
x 1

LAN Port
10/100/1000 Mb

Parallel Port
x 1

Serial Port
x 5, DB9 x 4, each with +5V power supply, +12V reserved, RJ45 x 1

PS/2 Keyboard
Yes

PS/2 Mouse
Yes

UPS Port
x 1

Standard USB Port
x 4 (1 in front, 3 in I/O plate)

Proprietary USB Port
1 for side mount option

VGA Port
D-Sub 15 pin

CR Port
x 1

Physical Dimension
Dimension
(W x D x H in mm)
LCD @ 20°: 378 mm (W) X 356 mm (D) X 370 mm (H)
(14.9” X 14.0” X 14.5”)
LCD @ 45°: 378 mm (W) X 366 mm (D) X 332 mm (H)
(14.9” X 14.4” X 13.2”)

Weight (N. W. in kg)
11.8

Environment
Operation Condition
5°C~+40°C (41°F~+104°F), 20%RH~80%RH,
non-condensing max. wet bulb 26°C (78.8°F)

Storage Condition
-20°C~60°C (-4°F~140°F) , 10%RH~80%RH,
non-condensing max. wet bulb 28.9°C (84.0°F)

Options
2nd LCD display
12” LM-6601, VGA port

Customer Pole Display
PD-2603: VFD, 20x2 Pole Display
PD-308: LCD, 20x2 Pole Display
PD-7623: LCD, 4x15 or 4x30 Pole Display

FA-200
MSR + Optical fingerprint sensor

CDROM
Through USB port

UPS Battery
2.3 AHr / 12 V in base

** The product information and specifications are subject to change without prior notice.
