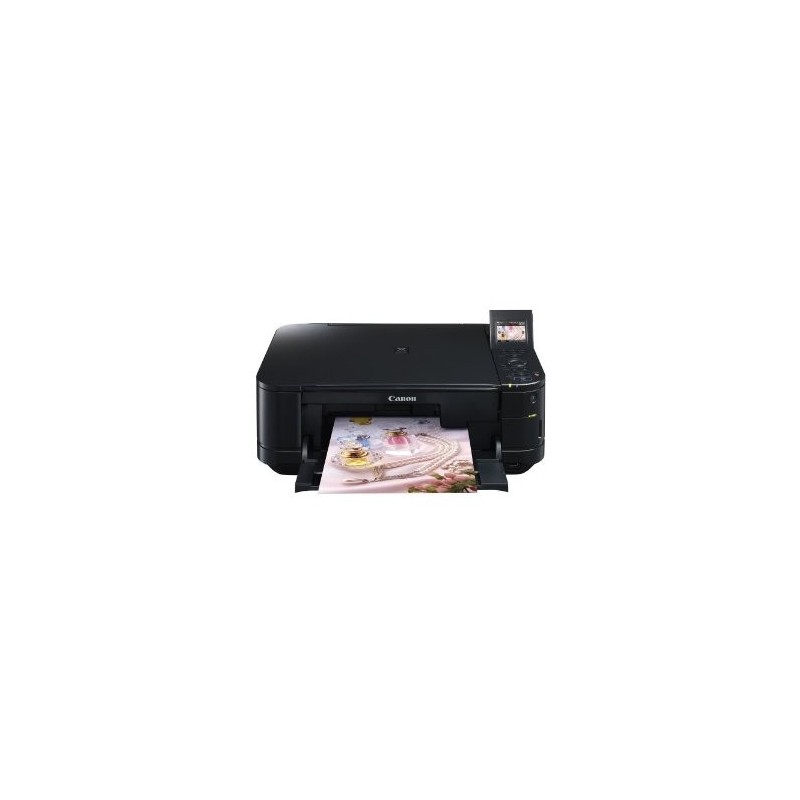

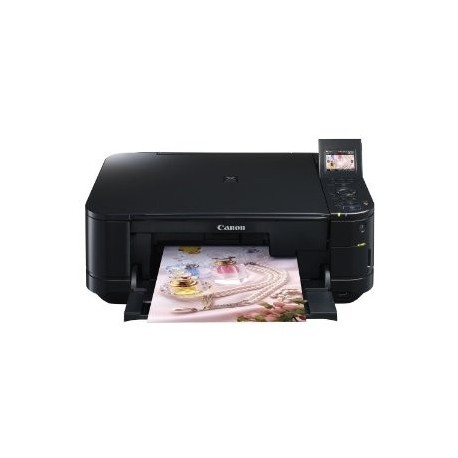

Canon Pixma MG5170 Printer

Spesifikasi produk Canon Pixma MG5170 Printer

Printing resolution (dpi)

• 9600* (horizontal) x 2400 (vertical)
• Ink droplets can be placed with a pitch of 1/9600 inch at minimum.

Interface
USB Port:

• Hi-Speed USB*1

Direct Print Port:

• PictBridge
• Bluetooth v2.0 (Option)*2 *3 *4

USB flash drive

• A computer that complies with Hi-Speed USB standard is required. Since the Hi-Speed USB interface is fully upwardly compatible with USB 1.1, it can be used at USB 1.1.
• Maximum speed: 1.44 Mbps
• JPEG/PNG only
• Bluetooth connection is for printing only.

Print width

• 8 inches/203.2 mm
• (for Borderless Printing: 8.5 inches/216 mm)

Operating environment

• Temperature: 5 to 35°C (41 to 95°F)
• Humidity: 10 to 90% RH (no condensation)

Storage environment

• Temperature: 0 to 40°C (32 to 104°F)
• Humidity: 5 to 95% RH (no condensation)

Power supply

• AC 100-240 V, 50/60 Hz

Power consumption

• Printing (Copy): Approx. 18 W
• Standby (minimum): Approx. 1.4 W*
• OFF: Approx. 0.4 W*
• USB connection to PC

External dimensions

• Approx. 17.9 (W) x 14.5 (D) x 6.3 (H) inches
• Approx. 455 (W) x 368 (D) x 160 (H) mm
• With the Paper Support and Paper Output Tray retracted.

Weight

• Approx. 7.8 kg (Approx. 17.2 lb)
• With the print head and ink tanks installed.

Print Head/Ink

• Total 2,368 nozzles (PgBK 320 nozzles, Y/DyeBK each 256 nozzles, C/M each 768 nozzles)

Multiple copy

• Max 99 pages

Intensity adjustment

• 9 positions, Auto intensity (AE copy)

Reduction/Enlargement

• 25% - 400% (1% unit)

Scanner driver

• TWAIN/WIA (for Windows 7/Windows Vista/Windows XP)

Maximum scanning size

• A4/Letter, 8.5" x 11.7"/216 x 297 mm

Scanning resolution
Optical resolution (horizontal x vertical)

• max: 1200 dpi x 2400 dpi

Interpolated resolution

• max: 19200 dpi x 19200 dpi

Gradation (Input/Output)

• Gray: 16 bit/8 bit
• Color: 48 bit/24 bit (RGB each 16 bit/8 bit)
