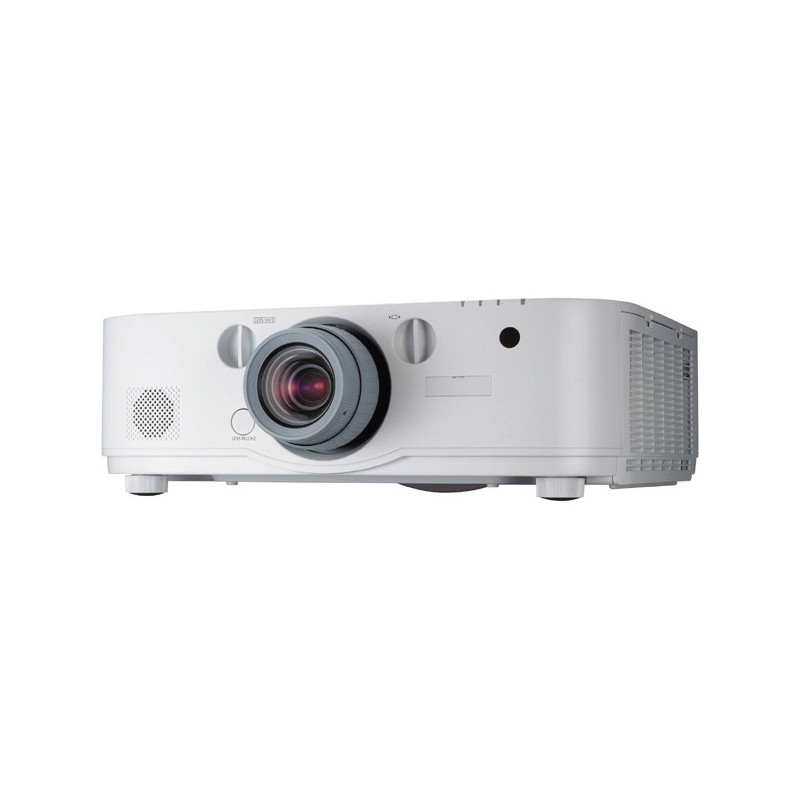

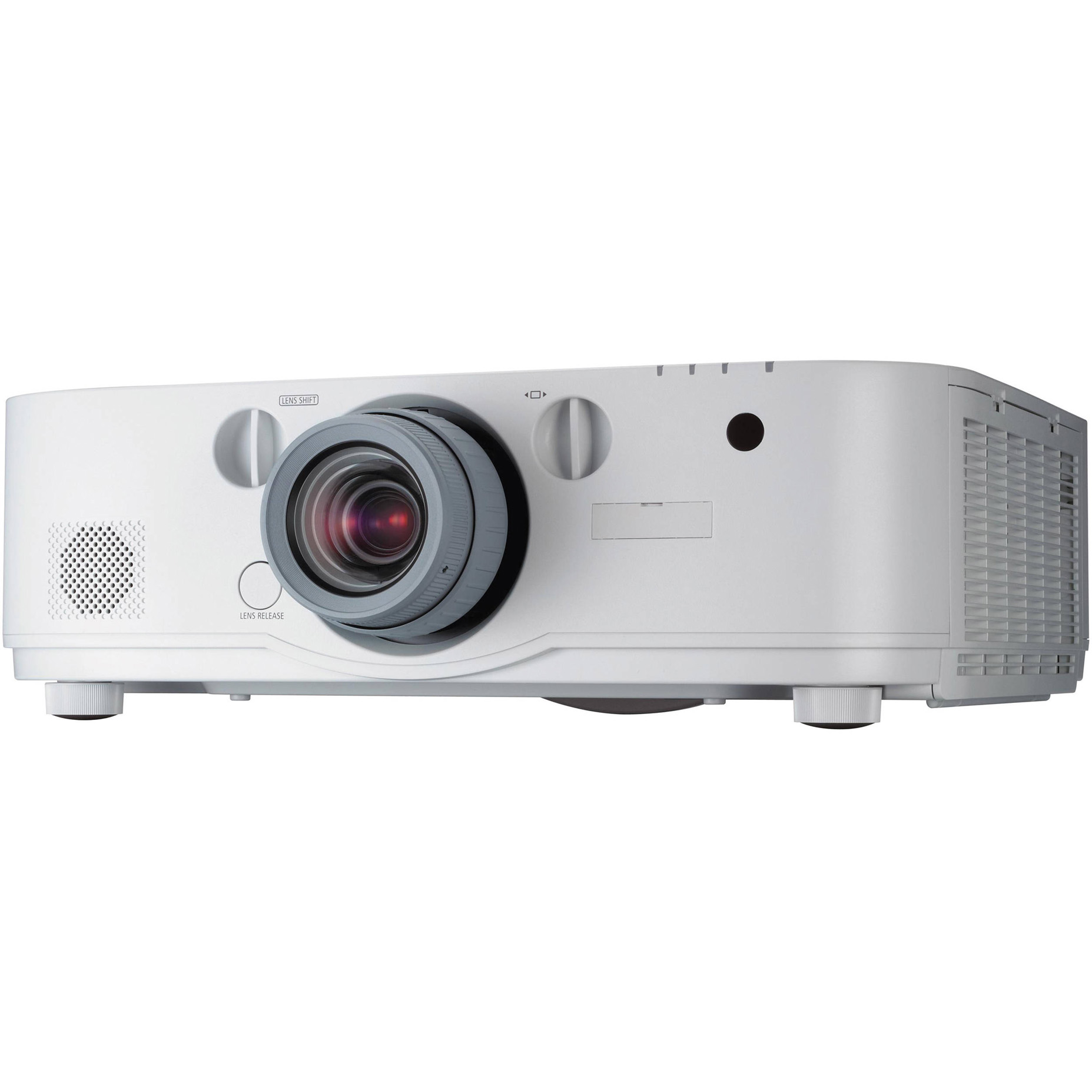

NEC NP-PA521U 5200 Lumens Professional Projector

Spesifikasi NEC NP-PA521U 5200 Lumens Professional Projector

Optical
Display Technology	0.76" LCD w/ MLA
Light Output(Lumens)	5200 normal
Resolution	Native WUXGA 1920 x 1200 Maximum WUXGA 1920 x 1200
Contrast Ratio (up to)	5000:1 with auto iris
Lamp Type	330W AC
Lamp Life (up to)	3000 hours normal / 4000 hours eco
Screen Size (diagonal)	40 to 500 in. / 1.02 to 12.7m
Throw Ratio	1.5 to 3.02
Projection Distance	2.5 to 68.5 ft. / 0.74 to 20.9m
Projector Angle	10.3 to 10.8° tele / 13.7 to 14.5° wide
Lens	Zoom 1 to 2.01 Focus Manual F number, fnumber F=1.7 to 2.37, f=24.4 to 48.6mm Shift Mechanical -0.1 to +0.5 vertical, +/-0.3 horizontal
Keystone Correction	+/- 40° horizontal, +/- 40° vertical
Signal Compatibility/Connectivity
Synchronization Range	Horizontal (Analog/Digital) Analog: 15-100kHz, Digital: 15-153kHz Vertical (Analog/Digital) Analog: 48-120Hz, Digital: 24-120Hz
Supported Video Standards	NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
PC Signal Compatibility	VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA, WQXGA, 4K
Macintosh Compatibility	Yes
Input/Output Terminals	RGB1(analog): VGA 15-pin D-sub RGB2(analog): 5-BNC RGB3(digital): HDMI w/HDCP RGB4(digital): HDMI w/HDCP RGB5(digital): DisplayPort w/HDCP Audio 1: Mini stereo Audio 2: Mini stereo Monitor out: HDMI Audio out: 1/8 in. stereo (Variable audio out)
Audio	10W mono
External Control	RS-232, IR, DDC/CI, USB
Sync Compatiblity	Separate Sync / Composite Sync / Sync on G
Electrical
Power Requirements	100-240V AC, 50/60 Hz
Input Current	5.1-2.1A
Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving)	463W / 377W / 4.7W / 0.11W
Environmental
Operating Temperature	41-104°F / 5-40°C
Humidity	20-80% non-condensing
Storage	-14-122°F / -10-50°C
Optional Lenses	NP11FL, NP12ZL, NP13ZL, NP14ZL, NP15ZL, NP30ZL

Berat dan ukuran NEC NP-PA521U 5200 Lumens Professional Projector

Dimensions (WxDxH)	19.7 x 14.4 x 6.5 in. / 499 x 366 x 164mm
Net Weight	18.5 lbs. / 8.4 kg

Isi Paket NEC NP-PA521U 5200 Lumens Professional Projector

Package Contents

1xRemote control 1xBatteries 1xPower cord 1xBuilt-in Lens cover 1xUser manual 1xQuick Start Guide 1xProduct registration card 1xLens anti-theft screw

Ringkasan Produk NEC NP-PA521U 5200 Lumens Professional Projector

PA521U NEC adalah model instalasi profesional 5200-lumen lebar canggih yang appeases pengguna pendidikan perusahaan dan lebih tinggi. Dengan RJ45 terintegrasi, opsional kecepatan tinggi nirkabel (LAN IEEE 80.11b / g / n) dan banyak teknologi manajemen aset sederhana digunakan, yang PA521U membantu pengguna hadir mulus tanpa khawatir tentang teknologi mereka. Nikmati desain dan fleksibilitas instalasi dengan garis lengkap opsional gaya bayonet lensa, kemampuan tilt-gratis dan instalasi potret bersama dengan pergeseran lensa horizontal / vertikal.

TileMatrix memungkinkan resolusi 4Kx2K memanfaatkan 4 proyektor melalui penguat distribusi eksternal
dukungan multi-display dengan Gambar oleh Gambar / Picture Out Gambar
Kinerja tinggi pemrosesan video / skala menciptakan gambar hidup seperti
aplikasi perangkat lunak yang terintegrasi seperti DisplayNote (R), Crestron Roomview, AMX Beacon dan PJ menghubungkan memungkinkan untuk interaktivitas lengkap dan kontrol
kecerahan 5200-lumen meningkatkan gambar untuk sebagian besar aplikasi

Additional Features :
Automatic keystone correction
Wireless LAN
Active Lens Cover
USB Viewer
Cornerstone
Geometric Correction
4000 hour Filter Life
Auto power on
ECO Mode technology
Closed captioning
Variable audio out
Carbon savings meter
Virtual Remote
Sleep timer
Quick power-off
Built-in wall color correction
Advanced AccuBlend
AutoSense
