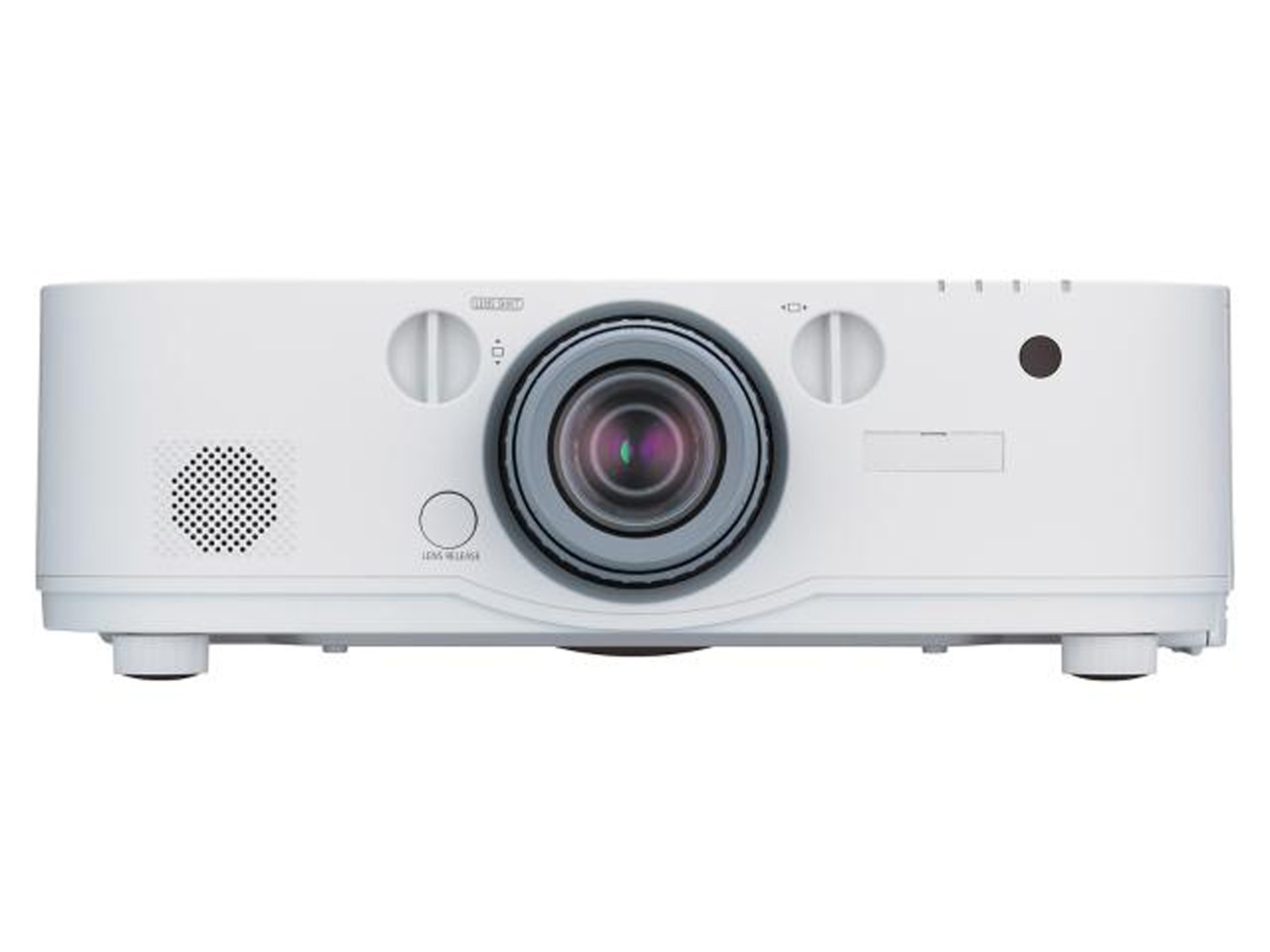

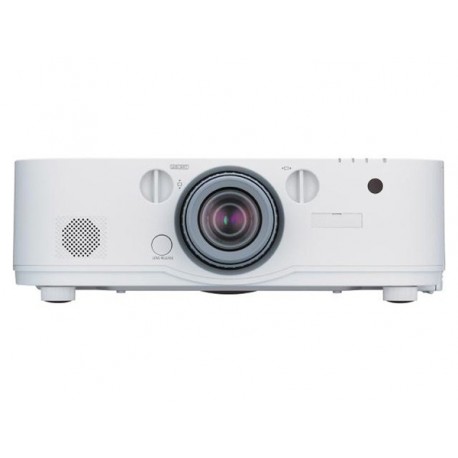

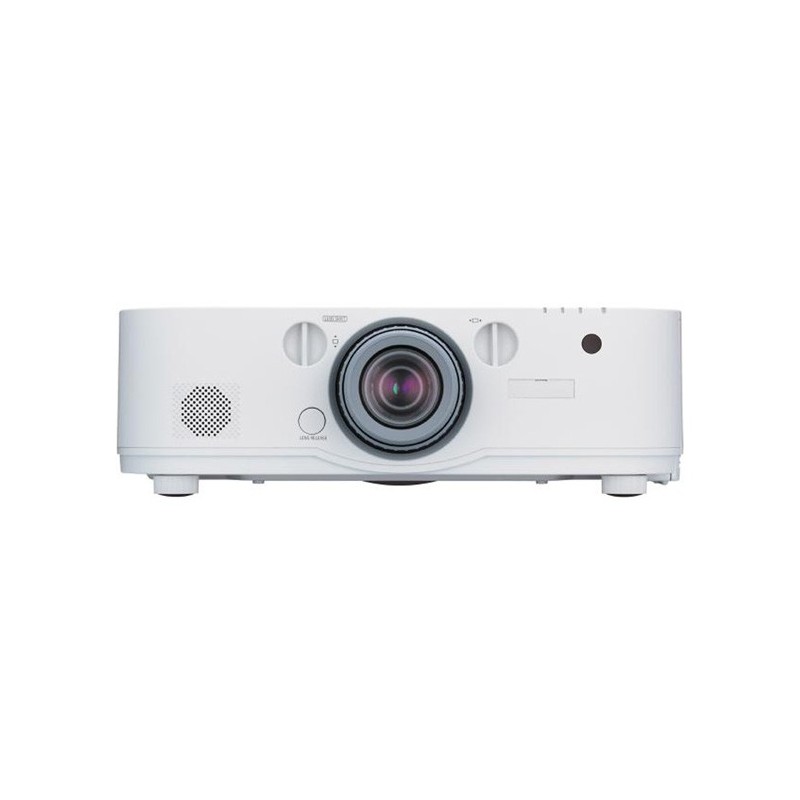

NEC NP-PA572W 5700 Lumens Projector With Lens NP13ZL

Spesifikasi NEC NP-PA572W 5700 Lumens Projector With Lens NP13ZL

Projection Technology	3LCD Technology
Native Resolution	1280 x 800 (WXGA)
Contrast Ratio 1	5000:1
Brightness 1	5700 ANSI Lumen (approx. 80% in Eco Mode), with std. optional lense
Lamp	330 W UHP AC (264 W UHP AC Eco Mode)
Lamp Life [hrs]	3000 (4000 Eco Mode, 2000 Portrait Mode)
Lens	6 optional bayonet lenses
Projection Factor	depending on lens selection (std. option NP13ZL at 1.5-3.02:1)
Projection Distance [m]	0.7 (NP11FL) - 76.4 (NP15ZL)
Screen Size (diagonal) [cm] / [inch]	Maximum: 1,270 / 500"; Minimum: 76 / 30"
Zoom	Manual (x2 with optional lens NP13ZL)
Focus Adjustment	Manual
Supported Resolutions	4096 x 2160 (4k); 2560 x 1600 (WQXGA); 2048 x 1080 (2k); 1920x1200 (WUXGA) - 640x480 (VGA); 1080i/50/60; 1080p/24/25/30/50/60; 720p/60; 720p/50; 576i/50; 576p/50; 480p/60; 480i/50
Frequency	Horizontal: analog: 15/24-100 kHz, digital: 15/24-153 kHz; Vertical: analog: 48-120 Hz, digital: 24-120 Hz
CONNECTIVITY
RGB (analog)	Input: 1 x 5BNC, shared with Component Signal (YPbPr); 1 x Mini D-sub 15-pin, compatible to component (YPbPr)
Digital	Input: 1 x DisplayPort; 1 x HDBaseT; 2 x HDMI™ supporting HDCP Output: 1 x HDMI
Video	Input: 1 x BNC R Share
S-Video	Input: 1 x BNC G/B Share
Audio	Input: 1 x DisplayPort Audio support; 1 x HDBaseT audio support; 2 x 3.5 mm Stereo Mini Jack for Computer analog; 2 x HDMI audio support  Output: 1 x 3.5 mm Stereo Mini Jack (variable)
Control	Input: 1 x D-Sub 9 pin (RS-232), Ethernet
USB	1 x Type A (USB 2.0 high speed)
3D Sync	Output: 1 x Mini DIN 3pin
Video Signals	NTSC; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM
REMOTE CONTROL
Input:	1 x 3.5 mm Stereo Mini Jack
Remote Control	3D Setup; Aspect Ratio; Audio Control; Auto Adjust; DisplayPort; Eco Mode Control; Edge-Blending; Freeze-function; Geometric Correction; HDMI; Help-function; Magnify-function; Multiscreen; Page (up, down); PBP/POP Function; Picture Adjust; Picture Mute; PIP Function; Power (On-OFF); Select (up, down, left, right); Source Select; Test Picture
ELECTRICAL
Power Supply	100-240 V AC; 50 - 60 Hz
Power Consumption [W]	460 (Normal) / 362 (Eco) / 7.9 (HDBaseT Stand-by) / 0.16 (Stand-by); Sleep Mode (Lamp off): 16
ERGONOMICS
Safety and Ergonomics	CE; ErP; RoHS; TUEV Type Approved
Speakers [W]	1 x 10 (mono)
ADDITIONAL FEATURES
Special Characteristics	4K Interface; AMX Beacon; Built-in Display/Multiscreen Splitter; Cinema Quality Picture (CQP) Processing for best image quality; Crestron RoomView; DICOM Simulation; Digital 3D Reform™; Direct Power-Off Function; Edge Blending Function (Build In); Free Tilt; Full 3D HDMI Support; Geometric Correction; HDBaseT; Keystone Correction (H=±40°, V=±40°); LAN; Lens Shift (vertical +0.5 max/-0.1 max, horizontal ± 0.3 max.); Manual Wall Color Correction; Multi-Screen compensation mode; NaViSet Administrator 2; Optional User Logo; OSD with 27 languages; Password Security System; PIP/Side by Side, HDMI - Input; PJ LINK; Portrait Setting; RS-232 Control; Stacking Function; Timer-Function; Virtual Remote for direct PC control
Energy Efficiency	Intelligent Power Management; Less than 0.16W Stand-By power Ecological Materials 100% recyclable packaging; Downloadable manuals; Unique NEC NeCycle Bio-Plastic cable cover option
Ecological Standards	ErP compliant
WARRANTY
Projectors	3 years pan-European service
Light Source	6 months, max. 1000 hrs
SHIPPING CONTENT
Shipping Contents	IR Remote Control (RD - 466E); Network Set-up Guide; Power Cord; Projector; Quick Setup Guide; Users Manual on CD-ROM
OPTIONAL ACCESSORIES
Optional Accessories	Cable Cover (NP04CV); Lamp (NP26LP)
Lenses	NP11FL (0.8:1); NP12ZL (1.19-1.56:1); NP13ZL (1.5-3.02:1); NP14ZL (2.97-4.79:1); NP15ZL (4.7-7.2:1); NP30ZL (0.79-1.03:1)

Berat dan ukuran NEC NP-PA572W 5700 Lumens Projector With Lens NP13ZL

Dimensions (W x H x D) [mm]	499 x 142 x 359 (without lens and feet)
Weight [kg]	8.4

Isi Paket NEC NP-PA572W 5700 Lumens Projector With Lens NP13ZL

Package Contents

1xNEC NP-PA572W 1xLens NP13ZL

Ringkasan Produk NEC NP-PA572W 5700 Lumens Projector With Lens NP13ZL

Deskripsi

Menyampaikan banyak fitur unik, NEC baru PA Series adalah pertama rentang proyektor dunia untuk menawarkan antarmuka 4K untuk kemampuan layar multi-layar. kualitas gambar yang luar biasa dijamin dengan generasi NEC 3 Sweetvision®, tingkat kecerahan tinggi dan scaler chip unik NEC.

PA572W baru menawarkan konektivitas yang kaya dengan berbagai masukan dan kemampuan instalasi yang tak tertandingi sehingga ideal untuk korporat, pendidikan tinggi, museum dan aplikasi signage di kamar besar dan auditorium.


Manfaat

Kualitas Gambar yang luar biasa - Seluruh pengalaman visualisasi baru dengan kecerahan tinggi, hingga 4K sinyal input dan teknologi gambar & warna pengolahan yang unik didasarkan pada scaler chip yang NEC terbaru.
cara mudah untuk gambaran besar - hingga antarmuka 4K, HDMI-out sinyal loop melalui, built-in splitter sinyal dan tepi blending kemampuan memungkinkan gambar presentasi besar tanpa perangkat eksternal. Fungsi PIP memungkinkan sumber tambahan yang akan ditampilkan.
Mudah instalasi - pilihan lensa zoom bayonet lebar, lebar vertikal dan horisontal pergeseran lensa dan kode kontrol emulasi menjamin instalasi dan penggantian proyektor instalasi lama bebas repot.
dukungan terluas aplikasi - modus potret proyeksi, 360 derajat instalasi tilt gratis, penyesuaian geometrik yang unik dan dukungan 3D menawarkan kemampuan instalasi yang tak tertandingi.
biaya yang sangat rendah kepemilikan - umur lampu yang panjang hingga 4000 jam, anorganik panel umur panjang, pemeliharaan filter gratis dan daya siaga hanya 0.15W.
konektivitas kaya - termasuk HDBaseT, pertama di dunia HDMI-out antarmuka, 2xHDMI dan jaminan teknologi DisplayPort konektivitas yang luar biasa.
Penghematan Biaya Device Management - menyimpan upaya sementara pengadministrasian semua perangkat NEC terhubung dari lokasi terpusat dengan menggunakan alat software NaViSet Administrator 2.
