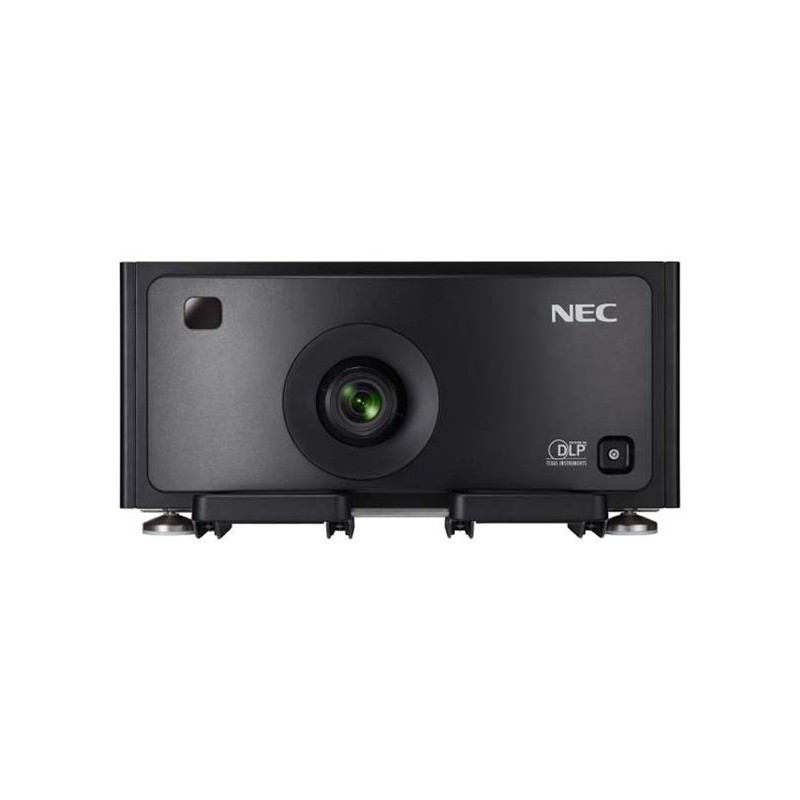

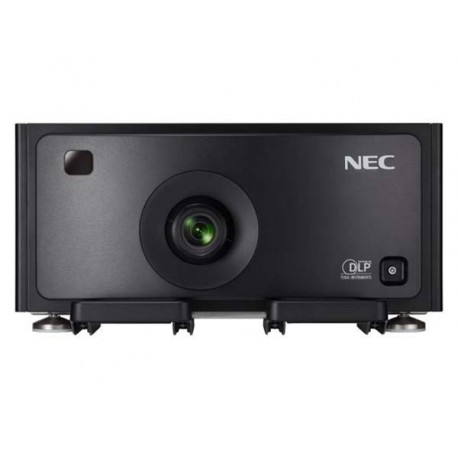

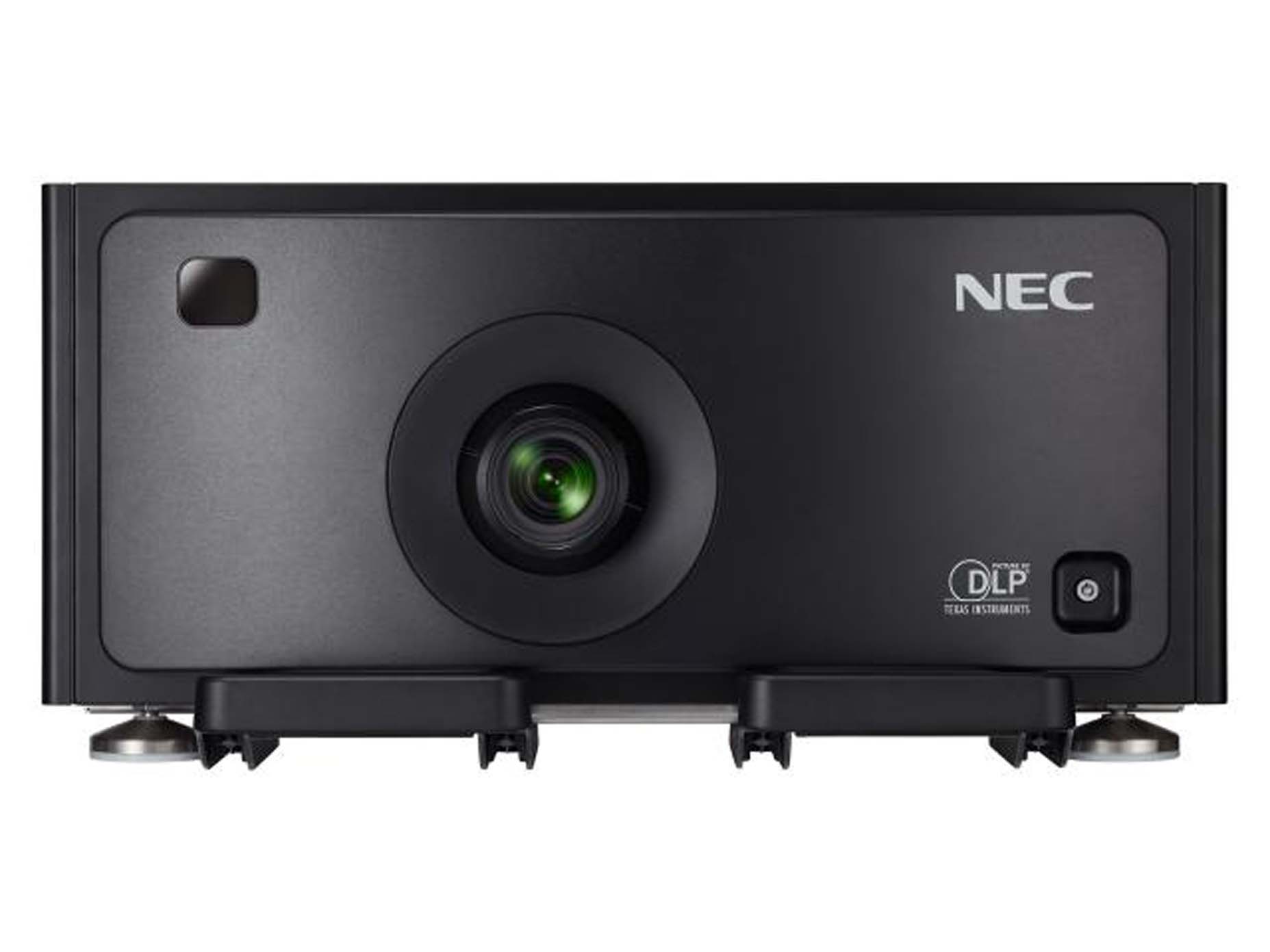

NEC PH1202HL 12,000AL Full HD Laser Projector

Kode Produk: 32133

Referensi Out Of Stock

Kondisi: Produk baru

NEC PH1202HL 12,000AL Full HD Laser Projector , 3 Chips DLP, 12000 Ansi, FULL HD, Support Wireless, Lens Shift, Stacking & Blending Function, 68 kg.

Lebih detail

Kirim ke teman

Kirim ke teman

NEC PH1202HL 12,000AL Full HD Laser Projector
NEC PH1202HL 12,000AL Full HD Laser Projector , 3 Chips DLP, 12000 Ansi, FULL HD, Support Wireless, Lens Shift, Stacking & Blending Function, 68 kg.

Penerima: :

Nama teman Anda ^* :

Alamat email teman Anda ^* :

^* Harus diisi

atau Batal
Bagikan di Facebook
Cetak

Info lainnya

Spesifikasi NEC PH1202HL 12,000AL Full HD Laser Projector


Projection Technology	3-chip DLP™ Technology
Native Resolution	1920 x 1080 (1080p)
Contrast Ratio 1	10000:1
Brightness 1	12000 ANSI Lumen, with std. optional lense
Lamp	Laser Light Source
Lamp Life [hrs]	20000; 30000 in long-life mode
Lens	6 optional bayonet lenses
Projection Factor	depending on lens selection
Projection Distance [m]	1.4 – 74.7
Screen Size (diagonal) [cm] / [inch]	Maximum: 1,524 / 600"; Minimum: 152 / 60"
Zoom	Motorized
Focus Adjustment	Motorized
Supported Resolutions	4096 x 2160 (4k); 2560 x 1600 (WQXGA); 2048 x 1080 (2k); 1920x1200 (WUXGA) - 640x480 (VGA); 1080i/50/60; 1080p/24/25/30/50/60; 720p/60; 720p/50; 576i/50; 576p/50; 480p/60; 480i/50
Frequency	Horizontal: analog: 15/24-100 kHz, digital: 15/24-153 kHz; Vertical: analog: 48-120 Hz, digital: 24-120 Hz

CONNECTIVITY

RGB (analog)	Input: 1 x 5BNC, shared with Component Signal (YPbPr); 1 x Mini D-sub 15 pin
Digital	Input: 1 x DisplayPort supporting HDCP; 1 x HDBaseT; 1 x HDMI™ supporting HDCP Output: 1 x HDMI supporting HDCP
Video	Input: 1 x BNC R Share
S-Video	Input: 1 x BNC G/B Share
Control	Input: 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet; 1 x Ethernet shared with HDBaseT
Option Slot	Input: 1 x Slot for optional OPS modules
USB	1 x Type A (USB 2.0 high speed for mouse support)
3D Sync	Output: 1 x Mini DIN 3pin
Video Signals	NTSC; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM

REMOTE CONTROL

Input:	1 x 3.5 mm Stereo Mini Jack
Remote Control	Auto Adjust; AV Mute; Direct Info; Direct Source Select; Eco Mode Control; Freeze-function; Full Lense control; Help-function; ID Select; Illuminated Buttons; Input Control; Magnify-function; On Screen On/Off Selection; Picture Adjust; PIP Function; Power (On-OFF); Select (up, down, left, right); Shutter function; Test Picture; Wired / Wireless Connection

ELECTRICAL

Power Supply	200-240 V AC; 50 - 60 Hz
Power Consumption [W]	1392 Normal Mode; 752 Eco Mode

MECHANICAL

Dimensions (W x H x D) [mm]	680 x 333 x 860 (without lens and feet)
Weight [kg]	68
Fan Noise [dB (A)]	43 / 47 (Eco / Normal)
Colour Versions	Black

ERGONOMICS

Safety and Ergonomics	CE; ErP; RoHS; TUEV Type Approved

Safety and Ergonomics

CE; ErP; RoHS; TUEV Type Approved

ADDITIONAL FEATURES

Special Characteristics	4K Interface; AMX Beacon; Built-in Display/Multiscreen Splitter; Cinema Quality Picture (CQP) Processing for best image quality; Crestron RoomView; DICOM Simulation; Digital 3D Reform™; Direct Power-Off Function; Edge Blending Function (Build In); Free Tilt; Full 3D HDMI Support; Geometric Correction; HDBaseT; Keystone Correction (H=±40°, V=±40°); LAN; Lens Shift (vertical +0,5 max/-0,5 max, horizontal ± 0,11 max.); Light Source Adjustment; Manual Wall Color Correction; Multi-Screen compensation mode; NaViSet Administrator 2; OPS module support; Optional User Logo; OSD with 27 languages; Password Security System; PIP/Side by Side, HDMI - Input; PJ LINK; Portrait Setting; RS-232 Control; Stacking Function; Timer-Function; Virtual Remote for direct PC control

Special Characteristics

4K Interface; AMX Beacon; Built-in Display/Multiscreen Splitter; Cinema Quality Picture (CQP) Processing for best image quality; Crestron RoomView; DICOM Simulation; Digital 3D Reform™; Direct Power-Off Function; Edge Blending Function (Build In); Free Tilt; Full 3D HDMI Support; Geometric Correction; HDBaseT; Keystone Correction (H=±40°, V=±40°); LAN; Lens Shift (vertical +0,5 max/-0,5 max, horizontal ± 0,11 max.); Light Source Adjustment; Manual Wall Color Correction; Multi-Screen compensation mode; NaViSet Administrator 2; OPS module support; Optional User Logo; OSD with 27 languages; Password Security System; PIP/Side by Side, HDMI - Input; PJ LINK; Portrait Setting; RS-232 Control; Stacking Function; Timer-Function; Virtual Remote for direct PC control

GREEN FEATURES

Energy Efficiency	Laser Light Source
Ecological Materials	100% recyclable packaging; Downloadable manuals
Ecological Standards	ErP compliant

WARRANTY

Projectors	3 years pan-European service
Light Source	3 years or 10000h (whatever comes first)

SHIPPING CONTENT

Shipping Contents	IR Remote Control (RD - 465E); Network Set-up Guide; Power Cord; Projector; Quick Setup Guide; Users Manual on CD-ROM; Utility software

Shipping Contents

IR Remote Control (RD - 465E); Network Set-up Guide; Power Cord; Projector; Quick Setup Guide; Users Manual on CD-ROM; Utility software

OPTIONAL ACCESSORIES

Optional Accessories	DLP-Link 3D Glasses (VolfoniFit); XpanD 3D Glasses (X105-RFX2); XpanD 3D RF Emitter (AD025-RF-X1)
Lenses	NP-9LS08ZM1 (0.9-1.35:1); NP-9LS12ZM1 (1.27-1.82:1); NP-9LS13ZM1 (1.42-2.23:1); NP-9LS16ZM1 (1.71-2.87:1); NP-9LS20ZM1 (2.25-4.18:1); NP-9LS40ZM1 (4.31-6.77:1)
OPS Slot-in Modules	Digital Signage Player; HD/SD-SDI Module; HDBaseT Receiver; Slot-in PCs

Connectors NEC PH1202HL 12,000AL Full HD Laser Projector

COMPUTER 1 IN (mini D-Sub 15 pin)
DisplayPort IN Connector
BNC Input [R/Cr/CV, G/Y/Y, B/Cb/C, H, V] Terminals (BNC × 5)
HDMI connector
USB (Type A)
HDMI OUT Connector (Type A)
HDBase T Port (RJ-45)
3D SYNC (Mini DIN 4 Pin)
3D terminal (3D) (D-sub 15P)
REMOTE (Stereo Mini Jack)
LAN (RJ-45)
USB (Type A)
PC CONTROL (D-Sub 9 pin)
External control terminal (GP I/O) (D-sub 37P)
Optional Slot (SLOT)

Ringkasan Produk NEC PH1202HL 12,000AL Full HD Laser Projector

NEC baru terang NEC PH1202HL, 3DLP Laser Instalasi Proyektor memberikan semua manfaat yang terkait dengan sumber cahaya laser terbaru. Tanpa penggantian lampu yang diperlukan, perawatan tidak diperlukan dan umur panjang terjamin. Mencapai gamut warna yang luar biasa dan detail gambar tertinggi pada resolusi tinggi, laser adalah sumber cahaya masa depan.
