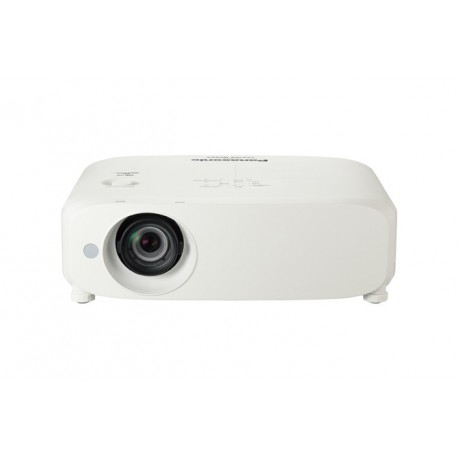

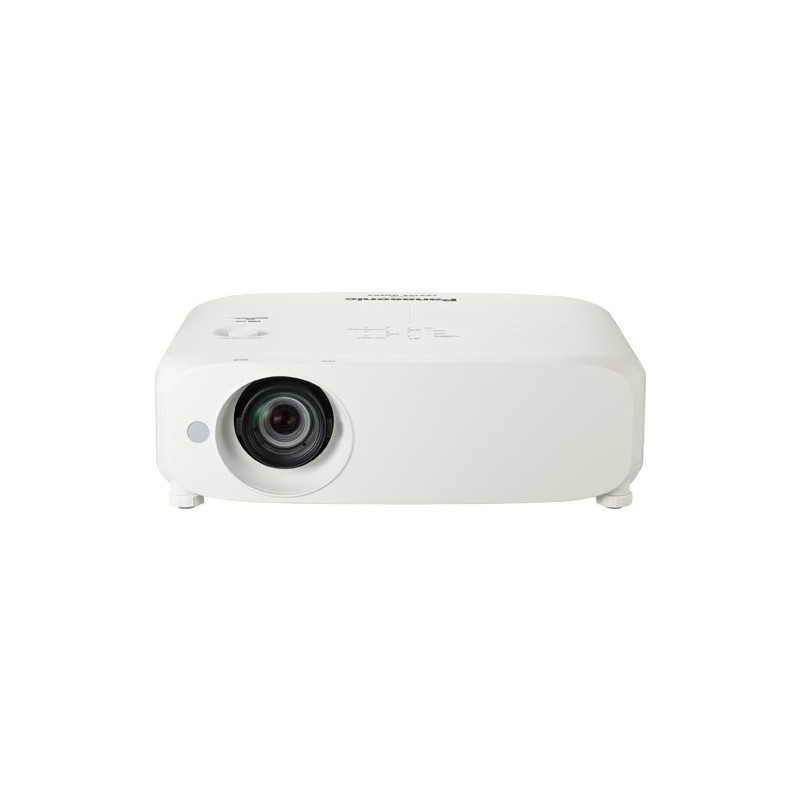

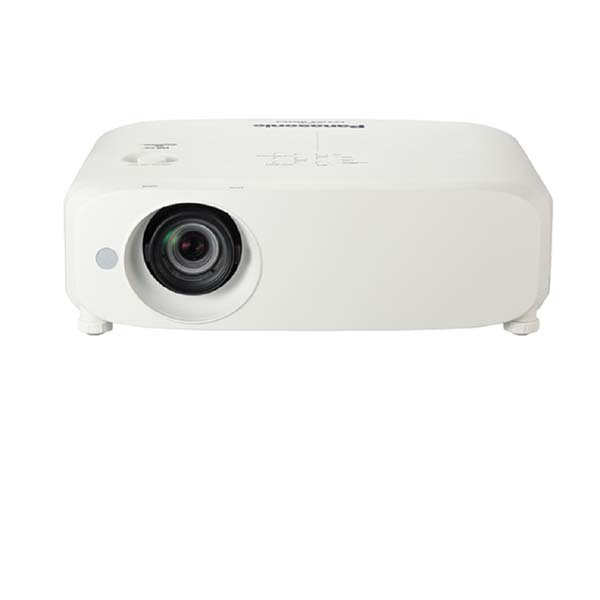

Panasonic PT-VW540 Portable projector

Kode Produk: 32580

Referensi AI0822

Kondisi: Produk baru

PT-VW540,WXGA,5.000,16.000:1,AC 120 V, 50/60 Hz,385 W,5kg,Transparent LCD panel (× 3, R/G/B),280 W UHM lamp × 1.

Lebih detail

Kirim ke teman

Kirim ke teman

Panasonic PT-VW540 Portable projector
PT-VW540,WXGA,5.000,16.000:1,AC 120 V, 50/60 Hz,385 W,5kg,Transparent LCD panel (× 3, R/G/B),280 W UHM lamp × 1.

Penerima: :

Nama teman Anda ^* :

Alamat email teman Anda ^* :

^* Harus diisi

atau Batal
Bagikan di Facebook
Cetak

Info lainnya

Spesifikasi Panasonic PT-VW540 Portable projector

Model	PT-VW540
Power supply	AC 120 V, 50/60 Hz (North America), AC 110 V, 60 Hz (Taiwan), AC 100–240 V, 50/60 Hz (other countries).
Power consumption	385 W [North America], 400 W [other countries]
Standby power consumption
Standby Mode (Eco)*²	0.3 W [North America, Taiwan], 0.5 W [other countries]
Standby Mode (Normal)	8 W
LCD Panel
Panel size	0.64 inches (1.63 cm) (16:10 aspect ratio)
Display method	Transparent LCD panel (× 3, R/G/B)
Pixels	1,024,000 (1280 × 800) × 3, total of 3,072,000 pixels
Lens	1.6x manual zoom (throw ratio: 1.08–1.76:1), manual focus F 1.60–1.90, f 15.31–24.64 mm
Lamp	280 W UHM lamp × 1
Screen size (diagonal)	30–300 inches
Brightness*³	5,500 lm [input signal: PC, lamp power: Normal, picture mode: Dynamic, Daylight View: OFF, Auto Power Save: OFF]
Center-to-corner uniformity*³	85%
Contrast*³	16,000:1 (all white/all black) [input signal: PC, lamp power: Normal, picture mode: Dynamic, Iris: On, Daylight View: OFF, Auto Power Save: OFF]
Resolution	1280 × 800 pixels (Input signals that exceed this resolution will be converted to 1280 × 800 pixels).
Scanning frequency
HDMI	480/60i⁴, 576/50i⁴, 480/60p, 576/50p, 720/60p, 720/50p, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p, 1080/60i, 1080/50i, Displayable resolution: 640 x 400 to 1920 x 1200 (non-interlace), Dot clock frequency: 25 MHz to 162 MHz
RGB (analog)	Displayable resolution: 640 x 400 to 1920 x 1200 [non-interlace], fH: 15 kHz–91 kHz, fV: 24 Hz–100 Hz, dot clock: 162 MHz or lower
YPBPR (YCBCR)	fH: 15.73 kHz, fV: 59.94 Hz [480/60i], fH: 15.63 kHz, fV: 50 Hz [576/50i], fH: 31.47 kHz, fV: 59.94 Hz [480/60p], fH: 31.25 kHz, fV: 50 Hz [576/50p], fH: 45.00 kHz, fV: 60 Hz [720/60p], fH: 37.50 kHz, fV: 50 Hz [720/50p], fH: 27.00 kHz, fV: 24 Hz [1080/24p], fH: 27.00 kHz, fV: 48 Hz [1080/24sF], fH: 28.13 kHz, fV: 25 Hz [1080/25p], fH: 33.75 kHz, fV: 30 Hz [1080/30p], fH: 67.50 kHz, fV: 60 Hz [1080/60p], fH: 56.25 kHz, fV: 50 Hz [1080/50p], fH: 33.75 kHz, fV: 60 Hz [1080/60i], fH: 28.13 kHz, fV: 50 Hz [1080/50i]*, HD/SYNC and VD terminals do not support 3 value SYNC.
Video	fH: 15.73 kHz/15.63 kHz, fV: 59.94 Hz/50 Hz (NTSC/NTSC4.43/PAL/PAL60/PAL-N/PAL-M/SECAM)
Optical axis shift	Vertical 0 to +44 % from center of screen (manual), U/D ratio on top end: 17:1
Keystone correction range	Vertical: maximum ±35 ° (auto/manual, input: WXGA), Horizontal: maximum ±35 ° (manual, input: WXGA), Up to a total of ±55 ° during simultaneous horizontal and vertical correction.
Installation	Front ceiling/Front desk/Rear ceiling/Rear desk
Terminals
HDMI IN	HDMI 19-pin × 2 (Deep Color, compatible with HDCP), audio signal: Linear PCM [sampling frequency: 48 kHz/44.1 kHz/32 kHz]
COMPUTER IN 1	D-sub 15-pin (female) x 1 [RGB/Y • PB (CB) • PR (CR)]
COMPUTER IN 2 / MONITOR OUT	D-sub 15-pin (female) x 1 [RGB/Y • PB (CB) • PR (CR) (input/output switching)]
VIDEO IN	Pin jack x 1
AUDIO IN 1	M3 stereo mini jack x 1
AUDIO IN 2	M3 stereo mini jack x 1
AUDIO IN 3	Pin jack (L/R) x 1
AUDIO OUT	M3 stereo mini jack x 1 (monitor out: variable)
SERIAL IN	D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
USB A	Type A for DC output x 1 (for power supply, DC 5 V, max. 2 A)*⁵
LAN	RJ-45 × 1 for network connection, 10Base-T/100Base-TX, compatible with PJLink™
Built-in speaker	4.0 cm (1 1/16”) round shape × 1, output power: 10 W (monaural)
Operation noise*³	37 dB (lamp power: Normal), 35 dB (lamp power: ECO1), 29 dB (lamp power: ECO2)
Cabinet materials	Molded plastic
Operating environment	Operating temperature: 0–40 °C (32–104 °F)*⁸ (altitude: less than 1,200 m [3,937 ft]), 0–30 °C (32–86 °F) (altitude: 1,200–2,700 m [3,937 ft–8,858 ft] ), Operating humidity: 20–80 % (no conden
Supplied accessories	Wireless remote control unit × 1, Power cord with power cord holder x 1 (x 2 for UK and Asia), Software CD-ROM × 1 (Operating instructions, Multi Monitoring and Control Software, Logo Transfer Software, Wireless Manager ME software [PT-VZ585N/VW545N/VX615N only]), Batteries (AAA type × 2), RGB cable x 1, Lens cap x 1

Berat dan ukuran Panasonic PT-VW540 Portable projector

Dimensions (W × H × D)	389 × 125⁷ × 332 mm (15-5/16” × 4-29/32”⁷ × 13-1/16”)
Weight	4.8 kg

Ringkasan Produk Panasonic PT-VW540 Portable projector

Dilengkapi dengan video komposit RCA, dua HDMI, dan dua input VGA untuk dihubungkan ke hampir semua perangkat. Input dan output audio analognya akan memungkinkan Anda untuk menyampaikan suara melalui proyektor ke sistem pilihan suara Anda, dan satu input VGA malah dapat bertindak sebagai output untuk beberapa rangkaian proyektor daisy atau display bersama-sama. PT-VW540 dapat dikontrol melalui remote control atau Ethernet, dengan berbagai pilihan perangkat lunak kontrol.

Resolusi WUXGA (1200 x 800) yang berasal dari PT-VW540 membawa citra HD ke ruang pertemuan dan ruang kelas untuk tampilan yang mendalam. Dengan 5000 lumen kecerahan dan rasio kontras dinamis 16.000: 1, audiens Anda akan menikmati teks dan warna yang dapat dibaca.
