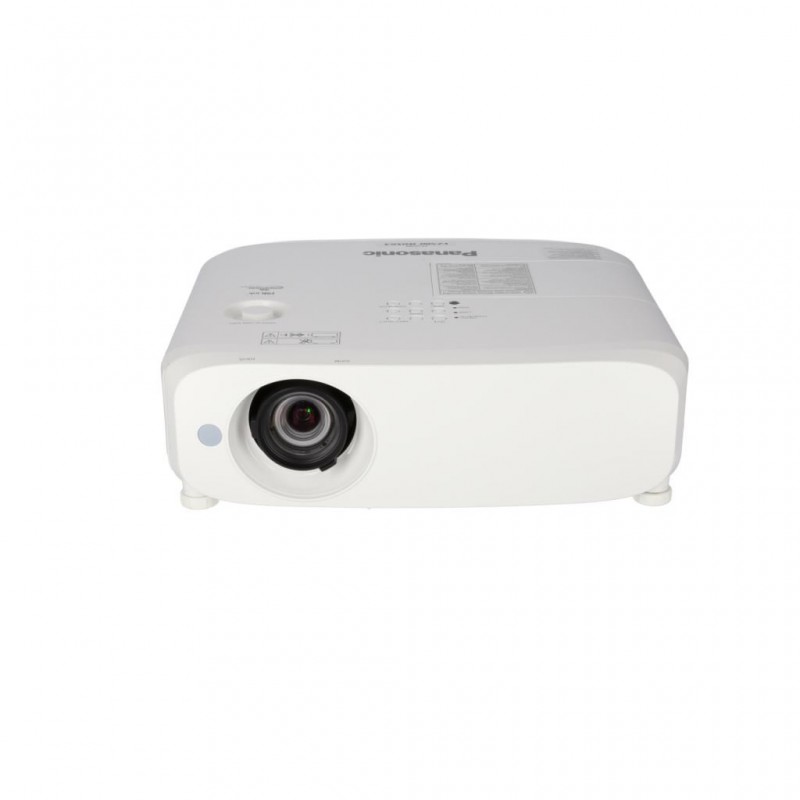

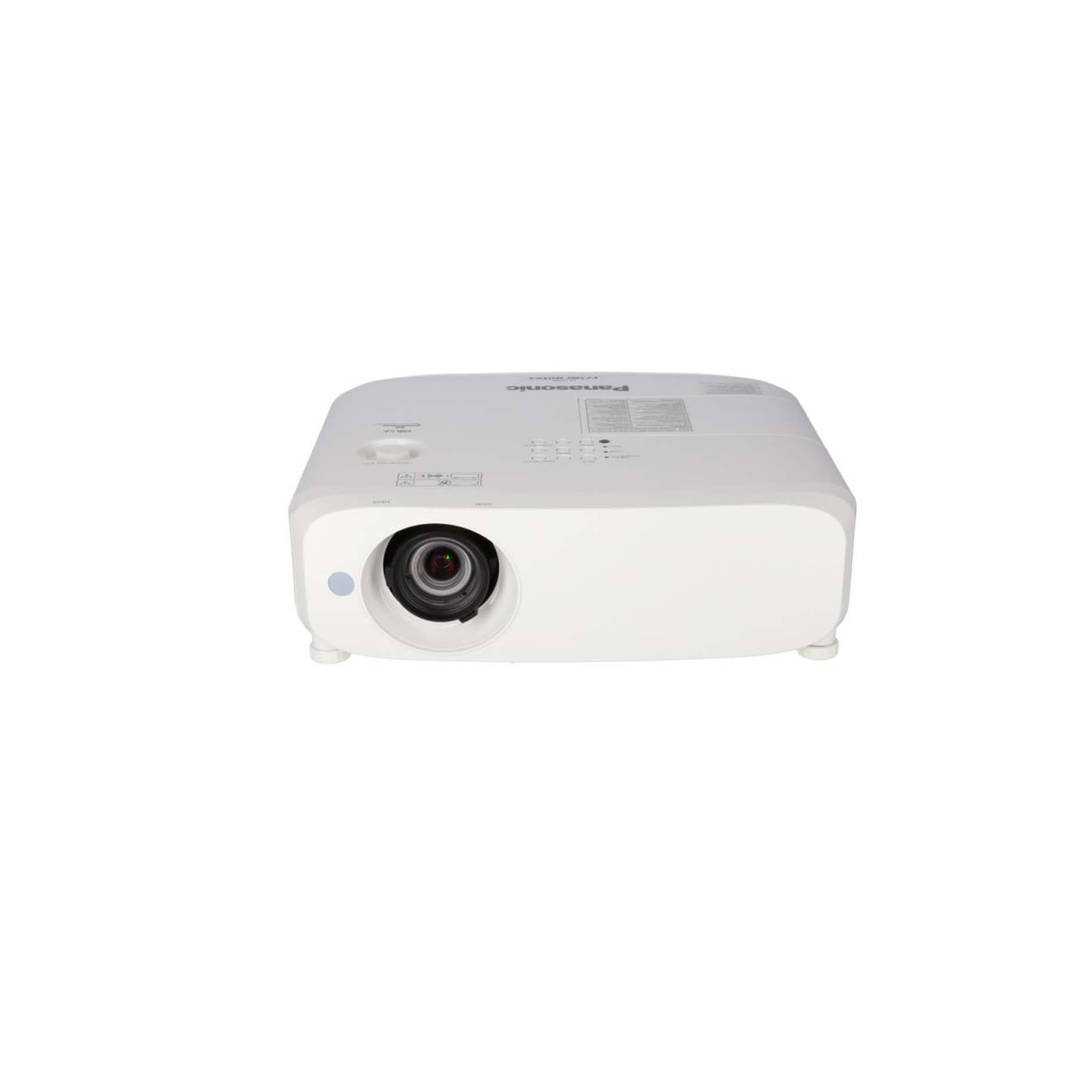

Panasonic PT-VZ580 LCD Portable Projector

Kode Produk: 32581

Referensi Out Of Stock

Kondisi: Produk baru

PT-VZ580,LCD,XGA,4800 ansi lumens,10.000:1,HDMI x 2, Serial in,LAN,Project onto curved survaces,Color-Board &Blackboard color-adjustment modes,Direct power off,10w speaker,7.000,5 kg.

Lebih detail

Kirim ke teman

Kirim ke teman

Panasonic PT-VZ580 LCD Portable Projector
PT-VZ580,LCD,XGA,4800 ansi lumens,10.000:1,HDMI x 2, Serial in,LAN,Project onto curved survaces,Color-Board &Blackboard color-adjustment modes,Direct power off,10w speaker,7.000,5 kg.

Penerima: :

Nama teman Anda ^* :

Alamat email teman Anda ^* :

^* Harus diisi

atau Batal
Bagikan di Facebook
Cetak

Info lainnya

Spesifikasi Panasonic PT-VZ580 LCD Portable Projector

Power supply	AC 100-240 V, 50/60 Hz
Power consumption *1	400 W (North America),410 W (other countries) When [STANDBY MODE] is set to [ECO] : approx. 0.3 W (North America, Taiwan), approx. 0.5 W (Other countries) When [STANDBY MODE] is set to [NORMAL] and [IN STANDBY MODE] of [AUDIO SETTING] is set to [OFF]: approx. 12 W
BTU value	1,365 BTU (North America), 1,399 BTU (Other countries)
LCD Panel size	16.3 mm (0.64 inches) diagonal (16:10 aspect ratio)
LCD panel Display method	Transparent LCD panel (x 3, R/G/B)
LCD panel Drive method	Active matrix method
LCD panel Pixels	2,304,000 (1920 x 1200) x 3, total of 6,912,000 pixels
LENS	Manual zoom (1.6x), manual focus, F 1.6-2.12, f 15.30 - 24.64 mm
Lens Throw ratio	1.09-1.77:1
Lamp	280 W UHM lamp
Projection size	0.76-7.62 m (30-300 inches) diagonally, 16:10 aspect ratio
Colors	Full color (16,777,216 colors)
Light output *2	5,000 lumens (Lamp power: Normal, Dynamic mode, Iris off, Daylight View:off, Auto Power Save:off)
Center-to-corner uniformity	85%
Contrast ratio*2	16,000:1(all white/all black, Image mode:Dynamic,Lamp power: Normal, Iris: On)
Resolution	1920 x 1200 pixels (Input signals that exceed this resolution will be converted to 1920 x 1200 pixels.)
Lamp replacement cycle	Normal: 5,000 hours, Eco1: 6,000 hours, Eco2: 7,000 hours
Filter replacement cycle	7,000 hours (Period varies depending on usage environment. It can be washed and reused up to 2 times.)
Scanning frequency HDMI/DIGITAL LINK	- Moving image signal resolution: 480i (525i)3, 576i (625i)3, 480p (525p), 576p (625p), 720 (750)/60p, 720 (750)/50p, 1080 (1125)/60i, 1080 (1125)/50i, 1080 (1125)/25p, 1080 (1125)/24p, 1080 (1125)/24sF, 1080 (1125)/30p, 1080 (1125)/60p, 1080 (1125)/50p Still image signal resolution: 640 x 400 to 1920 x 1200 (non-interlace) - Dot clock frequency: 25 MHz to 162 MHz
Scanning frequency RGB	fH: 15- 91kHz, fV: 24 - 100Hz, dot clock: 162 MHz or less
Scanning frequency YPBPR (YCBCR)	480i (525i): fH 15.73 kHz; fV 59.94 Hz, 576i (625i): fH 15.63 kHz; fV 50 Hz, 480p (525p): fH 31.47 kHz; fV 59.94 Hz, 576p (625p): fH 31.25 kHz; fV 50 Hz, 720 (750)/60p: fH 45.00 kHz; fV 60 Hz, 720 (750)/50p: fH 37.50 kHz; fV 50 Hz, 1080 (1125)/60i: fH 33.75 kHz; fV 60 Hz, 1080 (1125)/50i: fH 28.13 kHz; fV 50 Hz, 1080 (1125)/25p: fH 28.13 kHz; fV 25 Hz, 1080 (1125)/24p: fH 27.00 kHz; fV 24 Hz, 1080 (1125)/24sF: fH 27.00 kHz; fV 48 Hz, 1080 (1125)/30p: fH 33.75 kHz; fV 30 Hz, 1080 (1125)/60p: fH 67.50 kHz; fV 60 Hz, 1080 (1125)/50p: fH 56.25 kHz; fV 50 Hz
Scanning frequency Video	fH: 15.73 kHz / 15.63 kHz fV: 59.94 Hz / 50 Hz [NTSC/NTSC4.43/PAL/PAL60/PAL-N/PAL-M/SECAM]
Installation	CEILING/DESK/AUTO, FRONT/REAR
Speaker	4.0 cm round-type x 1
Maximum usable volume output	Maximum usable volume output
Optical axis shift	Vertical 0 - +44% from center of screen (manual) U/D ratio 17:1 (when on top end)
Terminals
COMPUTER 1 IN	high-density D-Sub 15 p (female) [RGB signal] R: 0.7 Vp-p ,75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G) , 75 ohms, B: 0.7 Vp-p ,75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic [YPBPR signal] Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohmshigh-density D-Sub 15 p (female) [RGB signal] R: 0.7 Vp-p ,75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G) , 75 ohms, B: 0.7 Vp-p ,75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic [YPBPR signal] Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms
Computer 2 IN/1 OUT	high-density D-Sub 15 p (female) [RGB signal] R: 0.7 Vp-p ,75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G) , 75 ohms, B: 0.7 Vp-p ,75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic [YPBPR signal] Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms
VIDEO IN	Pin jack 1.0 Vp-p, 75 ohms
HDMI 1 IN	HDMI 19 pin, HDCP and Deep color compatible Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz)
HDMI 2 IN	HDMI 19 pin, HDCP and Deep color compatible Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz)
AUDIO IN 1	M3 stereo mini jack, 0.5 V[rms], input imedance 22 k ohms and more
AUDIO IN 2	M3 stereo mini jack, 0.5 V[rms], input imedance 22 k ohms and more
AUDIO IN 3	Pin jack x 2(L-R), 0.5 V[rms], input imedance 22 k ohms and more
VARIABLE AUDIO OUT	M3 stereo mini jack, 0 V[rms] to 2.0 V[rms] variable, output imedance 2.2 k ohms and less
USB A (DC OUT)	USB connector (type A)
SERIAL IN	D-sub 9 pin, RS-232C compliant, for computer control use
LAN	RJ-45, for network, PJLink™ compatible, 100Base-TX
length	3.0 m(9 ft 10 in)(India), 2.0 m(6 ft 7 in)(Other countries)
Cabinet materials	Molded plastic
Dimensions (W x H x D)
Noise level *2	37dB (LAMP POWER: NORMAL/ECO1), 29dB (LAMP POWER: ECO2)
Operating Environment
Temperature*6	0°C (32°F) to 40°C (104°F) (Elevation: below 1,200 m (3,937')) 0°C (32°F) to 30°C (86°F) (Elevation: 1,200 m (3,937') - 2,700m (8,858'))
Humidity	20% to 80% (no condensation)
