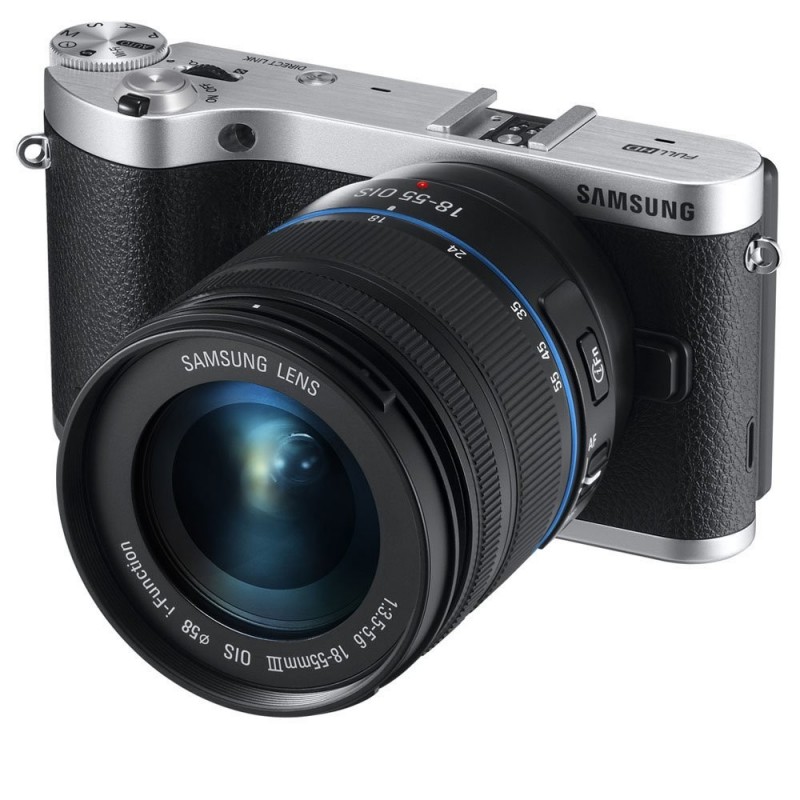

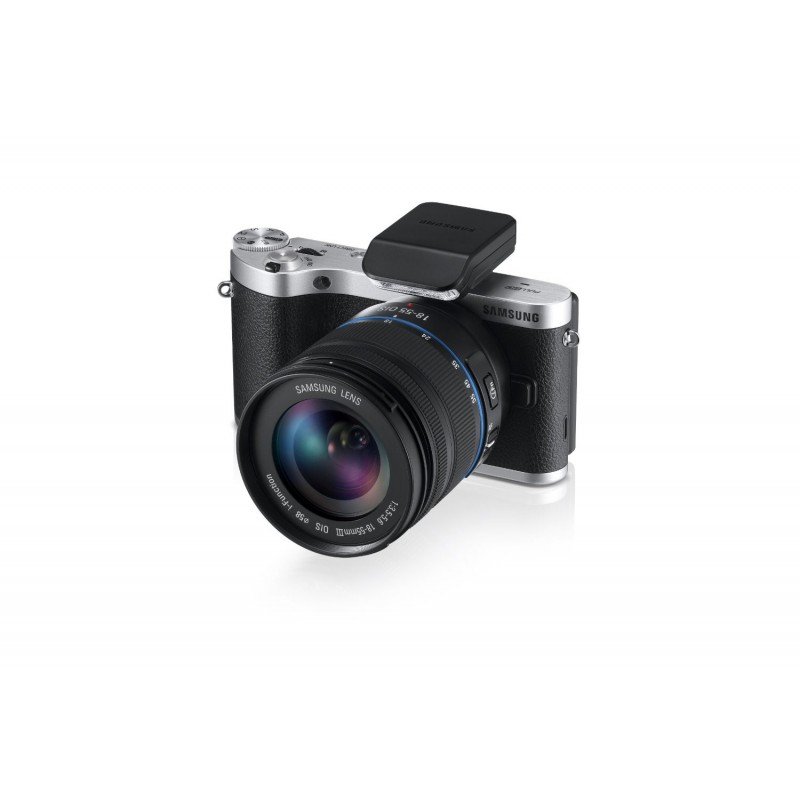

Samsung NX300 20.3MP CMOS Smart WiFi Camera With 18-55mm

Spesifikasi Produk Samsung NX300 20.3MP CMOS Smart WiFi Camera With 18-55mm

Image Sensor
Sensor Type

• CMOS

Sensor Size

• 23.5 x 15.7mm

Effective Pixel

• Approx 20.3MP

Total Pixel

• Approx 21.6MP

Color Filter

• RGB Primary Colour Filter

Lens
Usable Lens

• Samsung Lenses for Samsung NX Mount

Mount

• Samsung NX

Display
Type

• AMOLED with Touch (C-type Touch Control Enabled) and Tilt (Up 90°, Down 45°)

Size

• 84mm (3.31")

Resolution

• WVGA ( 800 x 480 ) 768k dots (Pentile)

Filed of View

• Approx 100%

User Display

• Grid (4types), Histgram, Icons : On / Off, Distance Scale : ft / m / Off

Focusing
Type

• Phase Detection & Contrast AF

Mode

• Single AF, Continuous AF, MF, Touch AF&Shutter

Focusing point

• Total AF Point : 105 points (Phase Detection AF), 247 points (Contrast AF) Selection : 1 point ( Free selection ) Multi : Normal 21 (3 x 7) points (Cross point 1), Closeup 35 points
• Face Detection : Max. 10 faces

AF-Assist Lamp

• Yes

Exposure
Metering System

• TTL 221 (17 x 13) Block segment
• Metering : Multi, Centre-weighted, SpotMetering range : EV 0-18 (ISO 100 · 30mm, F2)

Compensation

• ±3 EV (1/3EV step)

AE Lock

• CUSTOM Keyapplicable

ISO Equivalent

• Auto, 100, 200, 400, 800, 1600, 3200, 6400, 12800, 25600 (1 or 1/3EV step)* AUTO ISO upper level is selectable. (Up to ISO 1600)

Drive Mode
Mode

• Single, Continuous, Burst (5M size only), Self-timer, Bracket (AE / WB / PW)

Continuous

• JPEG : High (8.6fps) , Normal (up to 5fps) selectableBurst : 10, 15, 30fps selectable, 30 shots by 1 release
• RAW : High (8.6fps), Normal (up to 5fps) selectable

Bracket

• Auto Exposure Bracket (±3EV), WB, PW

Self-Timer

• 2 - 30sec. (1sec. step)

Remote Controller

• via Micro USB port

Flash
Type

• External Flash only (Bundle with SEF8A)

Mode

• Smart Flash, Auto, Auto+Red-eye reduction, Fill-in, Fill-in+Red-eye reduction, 1st Curtain, 2nd Curtain, Off

Guide Number

• 8 (at ISO 100) (SEF8A)

Angle of View Coverage

• 28mm wide-angle (Equivalent to 35mm)

Sync. Speed

• Less than 1/180sec.

Flash Compensation

• -2 - +2EV (1/2EV step)

External Flash

• Samsung External Flash available

Synchro (Flash attachment)

• Hot Shoe

Movie Clip
Format

• MP4 (H.264)

Compression

• Movie : H.264 , Sound : AAC

Mode

• Program, Aperture Priority, Shutter Priority, Manual

Recording

• With Audio or without Audio (user selectable, recording time : 29 minutes 59 seconds)

Smart Filter

• Vignetting, Minature, Coloured Pencil, Watercolour, Wash Drawing, Oil Sketch, Ink Sketch, Acryl, Negative, Selective Colour (R / G / B / Y 4 Colours) (1920 x 1080, 1280 x 720, 640 x 480, 320 x 240)

Image Size

• 1920 x 1080, 1920 x 810, 1280 x 720 , 640 x 480, 320 x 240 for Sharing

Frame Rate

• 60fps, 30fps, 24fps (1920 x 810 Only) (* 3D - 30fps Only)

Multi-Motion Recording

• x0.25 (640, 320 only), x0.5 (1280, 640, 320 only), x5, x10, x20

Quality

• High Quality , Normal

Sound

• Stereo Sound

Movie Editing

• Still Image Capture, Time Trimming

Interface
Digital Output Connector

• USB 2.0 (micro USB Jack)

Video Output

• NTSC, PALHDMI 1.4a

External Release

• Yes

DC Power Input Connector

• DC 5V, 1A via Micro USB port

Physical Specification
Dimension (WxHxD)

• 122 x 63.7 x 40.7mm (excluding the projection part)

Weight

• 284 g (without battery)

Operating Temperature

• 0 - 40°C

Operating Humidity

• 5 - 85%
