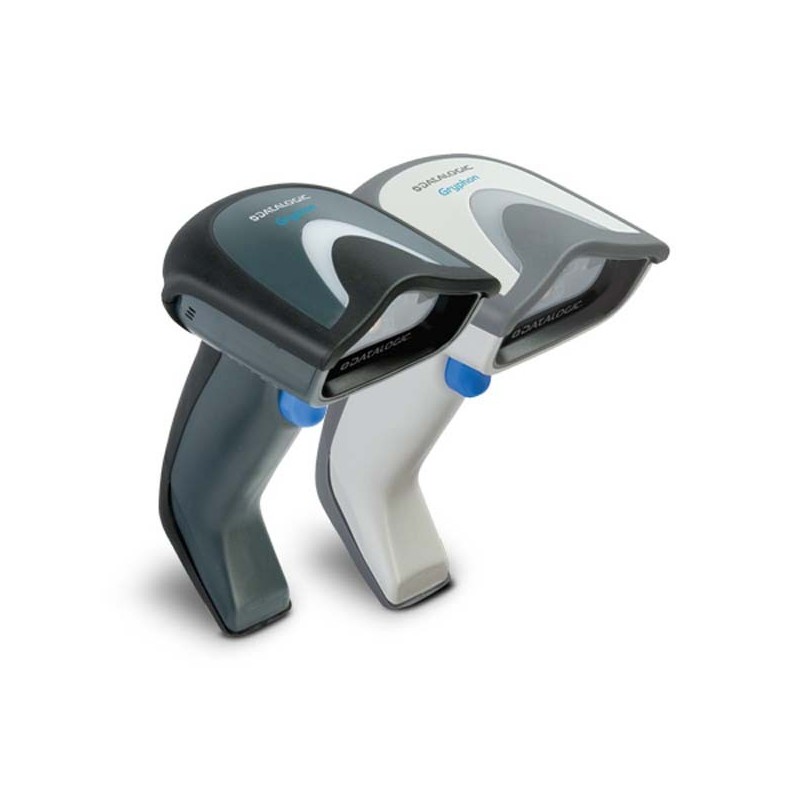

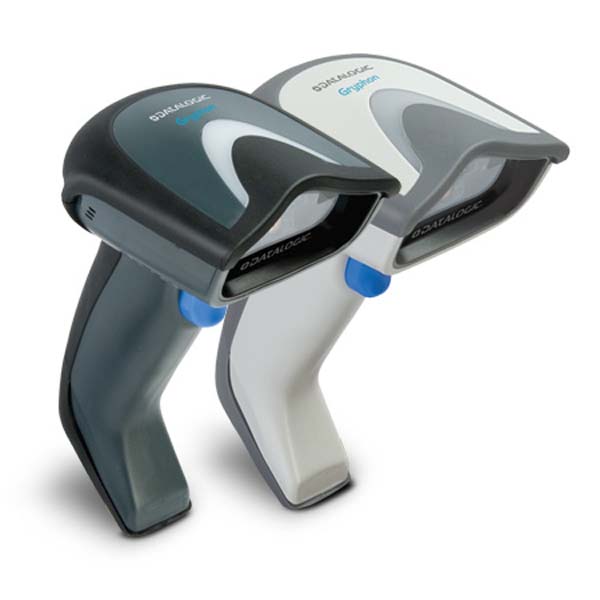

Datalogic Gryphon L GD4300 Barcode Scanner

Kode Produk: 34812

Referensi Out Of Stock

Kondisi: Produk baru

Out Of Stock

Lebih detail

Kirim ke teman

Kirim ke teman

Datalogic Gryphon L GD4300 Barcode Scanner
Out Of Stock

Penerima: :

Nama teman Anda ^* :

Alamat email teman Anda ^* :

^* Harus diisi

atau Batal
Bagikan di Facebook
Cetak

Info lainnya

Spesifikasi Datalogic Gryphon L GD4300 Barcode Scanner

Color	White/Grey Black/Grey
Electrical Characteristics
Voltage & Current	GD4330 model: Input current at 5V±5% = 260 mA (max) 2.5 mA (USB suspend) Standby (typical) ≤ 30mA
Voltage & Current	GD4310 model: Input Power = 1.2W max in the 4.5÷14V range 2.5 mA (USB suspend) Standby (typical): 30mA @5V, except 90mA @5V in IBM 46xx
Performance Characteristics
Pitch (Yaw)	± 50°
Skew	± 65°
Roll (Tilt)	± 35°
Scan Angle	47° (normal) or 35° (narrow)
Depth of Field (Typical)	5 mil - 1.4" to 6.22" (3,6cm to 15,8cm) 13 mil* – 0.87" to 18.7" (2,2cm to 47,5cm) 20 mil – up to 27.1" (to 69cm)
Minimum Element	Width 4 mil
Print Contrast Minimum (Typical)	15% minimum reflectance
Decode Capability	UPC/EAN/JAN, P2 /P5 add-ons; Code 39; Code 32; Code 128; Code 128 ISBT; Code 128 add-ons; Interleaved 2 of 5; Standard 2 of 5; Code 11; Codabar; EAN 128; GS1 DataBar™ Omnidirectional, GS1 DataBar™ Limited, GS1 DataBar™ Expanded, Code 4, Code 5, Follett 2 of 5
Interfaces Supported	RS-232 Std., RS-232 Wincor-Nixdorf, RS-232 OPOS, IBM 46xx (ports5B and 9B), USB Com Std., USB Keyboard, USB Alternate Keyboard,USB OEM, Keyboard Wedge (AT with or w/o Alternate Key, IBM AT PS2 with or w/o Alternate Key, PC-XT, IBM 3153, IBM Terminals 31xx, 32xx,34xx, 37xx make only and make break keyboard, Digital Terminals VT2x, VT3xx, VT4xx, and Apple) and Wand Emulation.
User Environment	Operative Temperature 32° to 122° F (0° to 50° C) Storage Temperature -4° to 158° F (-20° to 70° C) Humidity Operating: 5% to 90% relative humidity, non condensing
Drop specifications	18 drops from 1.8 meters (5.9 feet) to concrete
Ambient Light immunity	Up to 100,000 Lux
Contaminants	IP52
ESD Level	16 KV
Regulatory	Electrical Safety IEC 60950-1 , CAN/CSA-C22.2 No. 60950-1-03; UL 60950-1 Laser Safety EN/IEC 60825-1 Class 2 21 CFR 1040 (CDRH) (Class2) Led class Safety IEC Class 1 EMI/RFI North America (FCC) : Part 15 Class B, Canada ( IC) : ICES-003 Class B, European Union EMC Directive, Australian (C-tick) , Russia (Gost), Mexico (NOM NYCE), South Korea (KCC)

Berat dan ukuran Datalogic Gryphon L GD4300 Barcode Scanner

Dimensions	Height 7.1” / 181mm Length 3.9” / 100mm Width 2.8” / 71mm
Weight	Weight (without cable) Approximately 6.0 ounces/169 g

Ringkasan Produk Datalogic Gryphon L GD4300 Barcode Scanner

Datalogic Gryphon L GD4300 adalah solusi ideal yang menyediakan jarak baca yang lebih lama, kinerja yang tajam dengan garis pemindaian yang cerah dan terdefinisi dengan baik. Barcode berkualitas rendah dan label kontras rendah dengan definisi tepi buruk tidak menjadi masalah untuk pemindai Gryphon L GD4300, ditambah Datalogics Green Spot yang dipatenkan memberikan umpan balik visual yang baik dibaca langsung pada kode, memungkinkan pemindaian cepat dan akurat yang sangat berguna dalam kebisingan lingkungan atau di tempat-tempat di mana bacaan "bebas bip" diinginkan.
