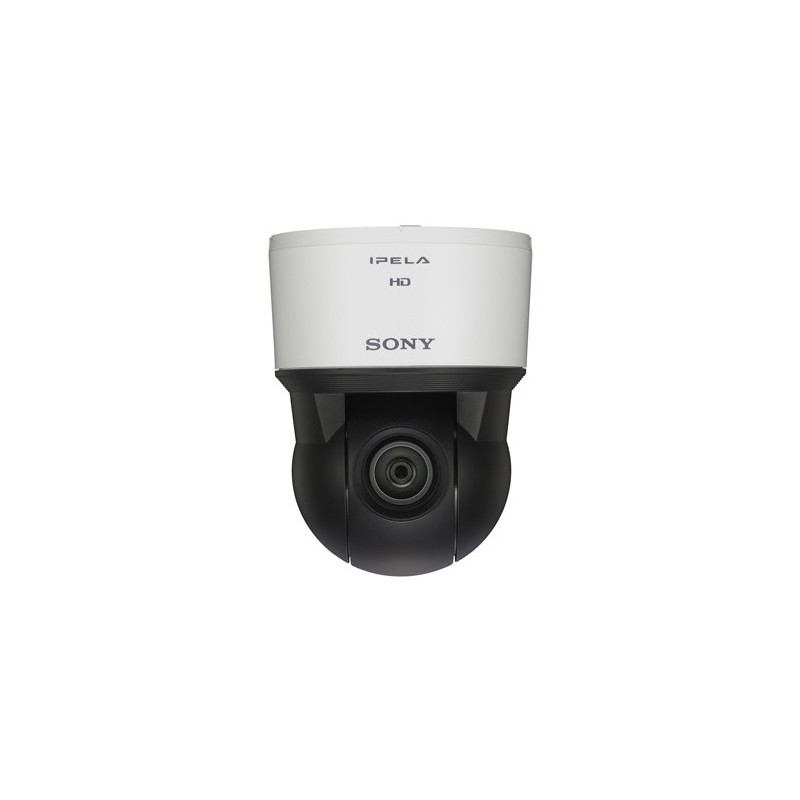

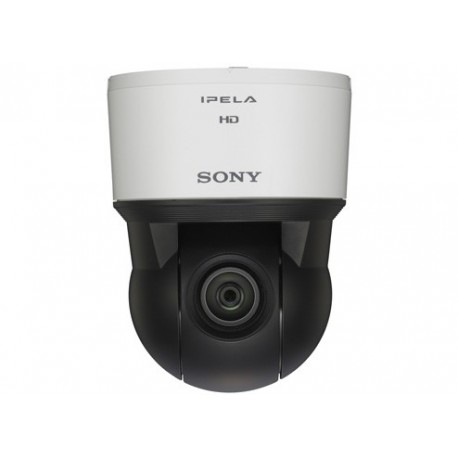

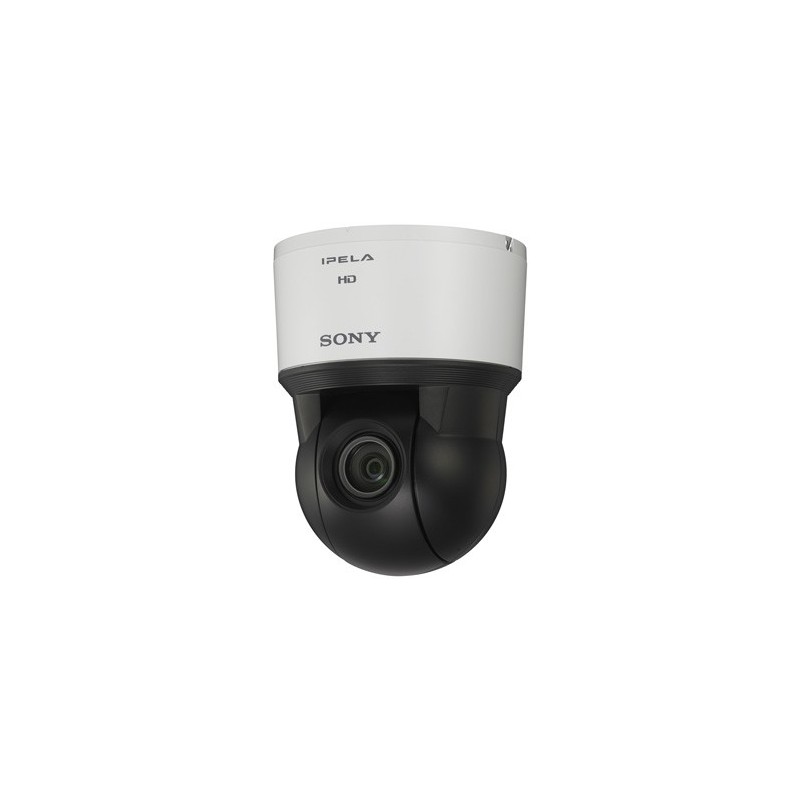

Sony SNC-EP550 Network SD PTZ camera With 28x Optical Zoom Lens

Spesifikasi Produk Sony SNC-EP550 Network SD PTZ camera With 28x Optical Zoom Lens

Camera Specifications

IP/Analog

• IP

Camera Type

• HD PTZ Camera

Type

• HD

Camera

• SNCEP550

Image Device

• 1/4-type Exmor CMOS

Effective Pixels

• Approx. 1.43 Megapixel

Minimum Illumination

• Color: 1.0lx (F1.35, shutter 1/30sec, AGC ON, 50IRE[IP]); B/W: 0.1lx (F1.35, shutter 1/30sec, AGC ON, Night Mode, 50IR [IP])

Lens Type

• Auto-focus Zoom Lens

Focal Length

• f=3.5 to 98 mm

F-Number

• F1.35 to F3.7

Compression Format

• H.264, MPEG-4, JPEG

Pan Angle

• 340 degrees

Pan Speed

• 300 degrees/s (max)

Tilt Angle

• 105 degrees

Tilt Speed

• 300 degrees/s (max)

Day Night

• Yes

Wide-D

• Yes

Zoom Ratio

• Optical zoom 28x, Digital zoom 12x, Total zoom 336x

Minimum Object Distance

• 10mm (wide) to 1500mm (tele)

White Balance Mode

• Auto, ATW, Indoor, Outdoor, One-push, Manual, Sodium vapour lamp

Horizontal Viewing Angle

• 55.9 to 2.1 degrees

Electronic Shutter

• 1/1 to 1/10,000 s

Exposure Control

• Full auto, Shutter priority, Iris priority, Manual

Gain

• Auto/Manual (-3 to 28 dB)

Image Specifications
Image Size

• Various up to 1280x720

Compression Format

• H.264, MPEG-4, JPEG

Frame Rate

• 30 fps

Interface Specifications
Interface

• 10BASE-T / 100BASE-TX (RJ-45)

External Microphone Input

• Mini-jack (monaural)

Audio Line Output

• Mini-jack (monaural), Max ouput level: 1 Vrms

General Specifications
Weight

• 3 lb 12 oz (1.7 kg) (including ceiling bracket)

Dimensions (W x H x D)

• ø 5 7/8 x 7 5/8 inches (147.4 x 190.9 mm)

Finish

• White

Power Requirements

• HPoE (IEEE802.3at compliant), AC24V

Power Consumption

• Approx. 25W

Operating Temperature

• 23 to 122°F (-5 to +50 °C)

Storage Temperature

• -4 to +140°F (-20 to +60 °C)

Compression

• H.264, MPEG4, JPEG

FPS

• variable up to 30

Resolution

• 1.3 megapixel/720p

Watts

• Approx. 25W
