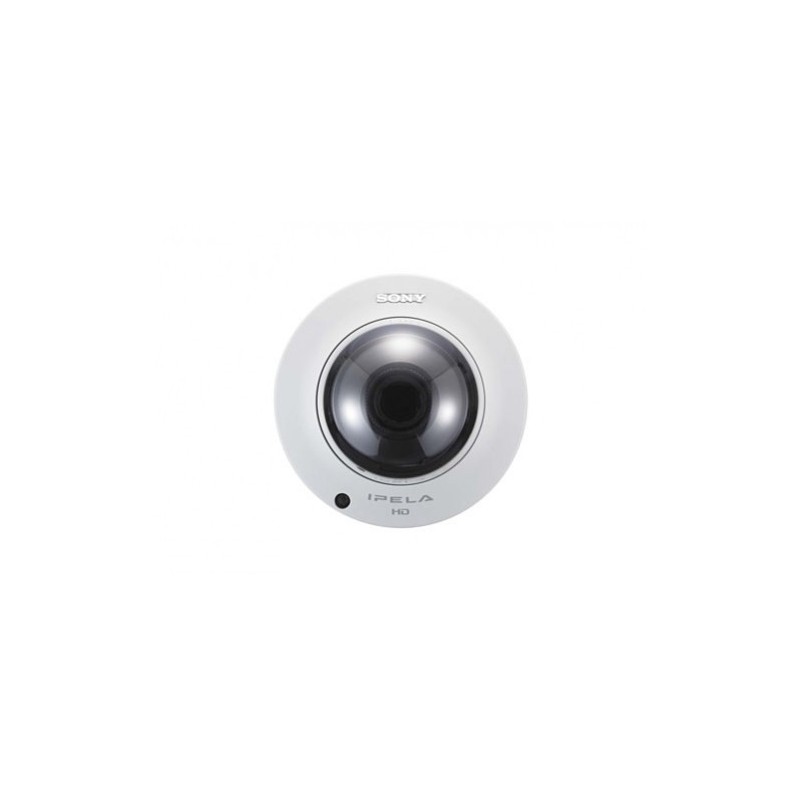

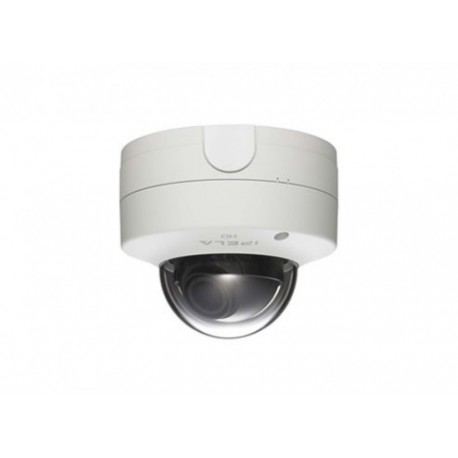

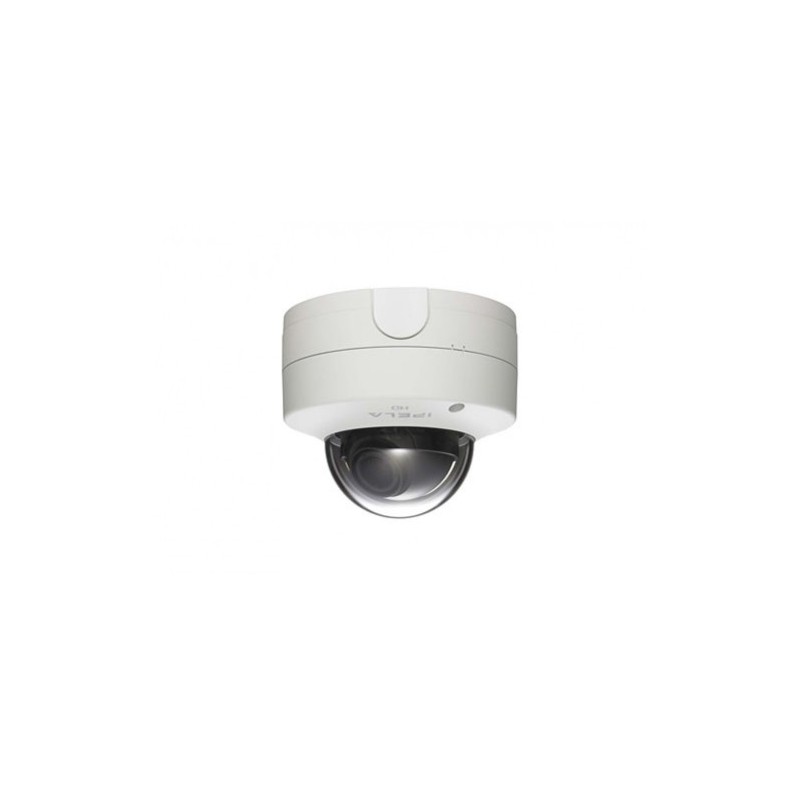

Sony SNC-DH220T 1080p Vandal-Resistant Indoor Network Minidome HD Camera

Spesifikasi Produk Sony SNC-DH220T 1080p Vandal-Resistant Indoor Network Minidome HD Camera

Camera Specifications
IP/Analog

• IP

Image Device

• 1/2.8 type progressive scan Exmor CMOS sensor

Effective Pixels

• Approx. 3.27Megapixel(2096×1561)

Minimum Illumination

• 0.70 lx (Color), 0.45 lx (BW) (F1.2/ AGC 42dB/ 50IRE [IP])

Lens Type

• Buil-in Vari-focal lens

Focal Length

• f=3.1 mm to 8.9 mm

F-Number

• F1.2 (Wide), F2.1 (Tele)

Compression Format

• H.264, MPEG-4, JPEG

Day Night

• Yes

Minimum Object Distance

• 300 mm

White Balance Mode

• Auto (ATW, ATW-PRO), Preset, One-push WB, Manual

Horizontal Viewing Angle

• 88.5 degrees to 32.3 degrees

Electronic Shutter

• 1 s to 1/10000 s

Exposure Control

• Auto, EV Compensation, Auto Slow Shutter

Gain

• Auto

Image Specifications
Compression Format

• H.264, MPEG4, JPEG

Frame Rate

• H264: 20fps (1920 x 1440) / 30fps (1920 x 1080)

• MPEG-4: 15fps (1920 x 1440) / 20 fps (1920 x 1080)
  JPEG: 10fps (1920 x 1440) / 15fps (1920 x 1080)

Analog Video Output Specifications
Signal System

• NTSC / PAL

General Specifications
Weight

• 1 lb 9 oz (715 g), not including the cables and bracket

Dimensions (W x H x D)

• ø 5 5/8 inches × 4 3/4 inches (140 mm × 118 mm)

Power Requirements

• PoE (IEEE802.3af compliant)

Power Consumption

• 6.0 W max.

Operating Temperature

• 14°F to 122°F (-10°C to +50°C)

Storage Temperature

• -4°F to +140°F (-20°C to +60°C)

Compression

• H.264, MPEG4, JPEG

FPS

• variable up to 30

Resolution

• 3.0 megapixel/1080p
