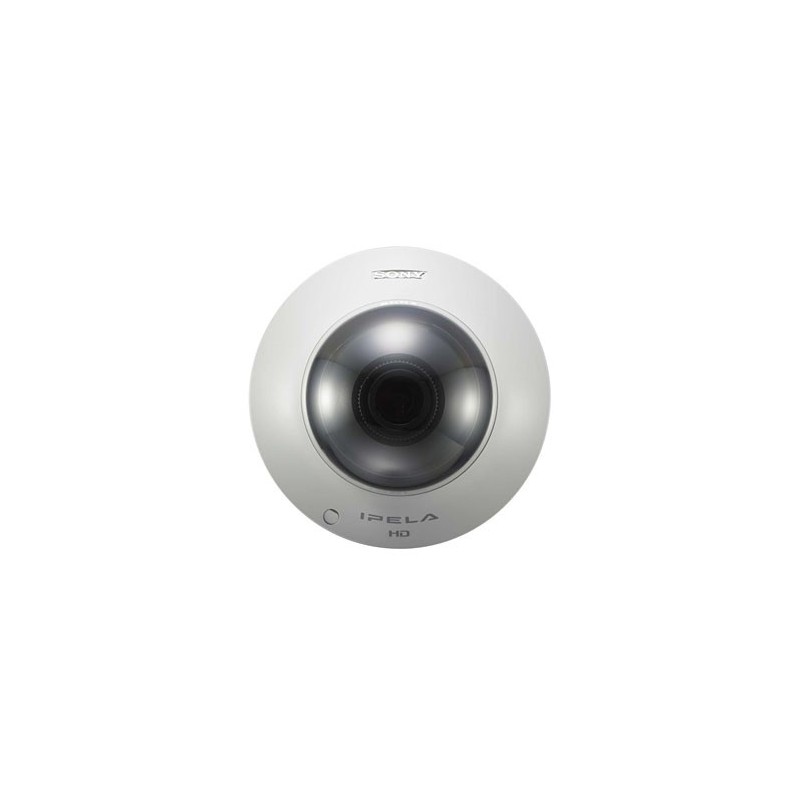

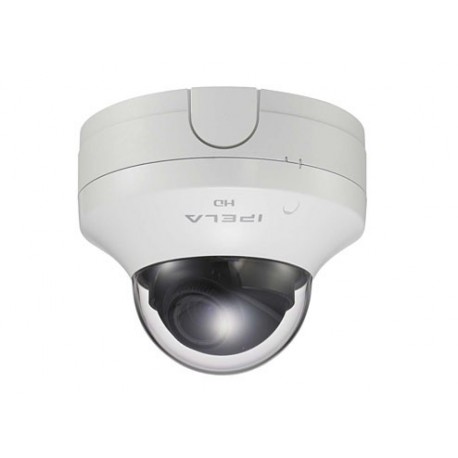

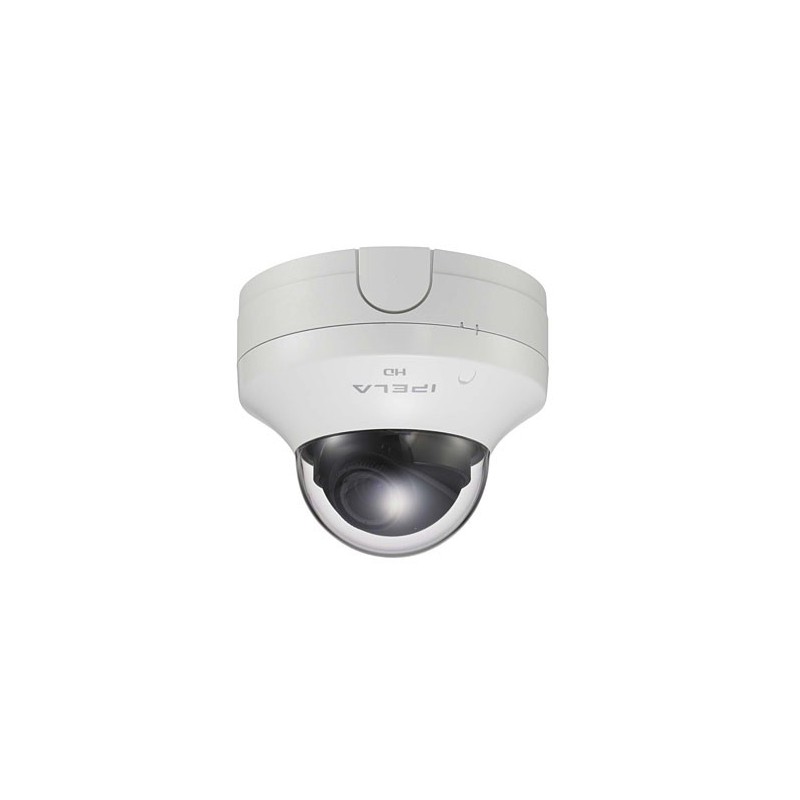

Sony SNC-DH240 Network 1080p HD Minidome Camera

Spesifikasi Produk Sony SNC-DH240 Network 1080p HD Minidome Camera

Camera Specifications
IP/Analog

• IP

Image Device

• 1/2.8 type progressive scan Exmor™ CMOS sensor

Effective Pixels

• 3.27 Megapixels (2096 x 1561)

Horizontal Resolution

• 600 TV lines

Minimum Illumination

• Color: 0.40 lx, BW: 0.25 lx(F1.2 VIEW-DR OFF/ XDNR ON-Middle/VE OFF/AGC High/ 50IRE [IP])

Lens Mount

• CS mount lens

Lens Type

• Built-in Vari-focal lens

Focal Length

• f=3.1 mm to 8.9 mm

F-Number

• F1.2 (Wide), F2.1 (Tele)

Compression Format

• H.264, MPEG-4, JPEG

Day Night

• Yes (True day/night)

Wide-D

• Yes

Zoom Ratio

• Optical 2.9x (x2 Digital Zoom)

Minimum Object Distance

• 300 mm

Slow Shutter

• Auto Slow Shutter

White Balance Mode

• Auto (ATW, ATW-PRO), Preset, One-push WB, Manual

Horizontal Viewing Angle

• 88.5 to 32.3 degrees

Electronic Shutter

• 1s to 1/10000s

Exposure Control

• Auto, EV Compensation, Auto Slow Shutter

Gain

• Auto (3 levels)

Analog Video Output Specifications
Signal System

• NTSC / PAL

Horizontal Resolution

• 600 TV lines

S/N Ratio

• More than 50 dB

Interface Specifications
Network

• 10BASE-T / 100BASE-TX (RJ-45)

I/O Port

• Sensor input: x1, alarm output: x2

External Microphone Input

• Mini-jack (Monaural), MIC IN/LINE IN: 2.5 VDC plug-in power

Analog Video Output

• BNC x1

Audio Line Output

• Mini-jack (Monaural), Max output level: 1 Vrms

Audio Specifications
Audio Compression

• G.711/G.726

General Specifications
Weight

• 1 lb 10 oz (750 g)

Dimensions (W x H x D)

• Ø 5 5/8 x 4 3/4 inches (140 x 118 mm)

Power Requirements

• AC24 V, DC 12 V PoE (Class 0) (IEEE802.3af compliant)

Power Consumption

• 10.2 W max.

Operating Temperature

• 14°F to 122°F (-10°C to +50°C)

Storage Temperature

• -4°F to +140°F (-20°C to +60°C)

Compression

• H.264, MPEG4, JPEG

FPS

• variable up to 30

Resolution

• 3.0 megapixel/1080p
