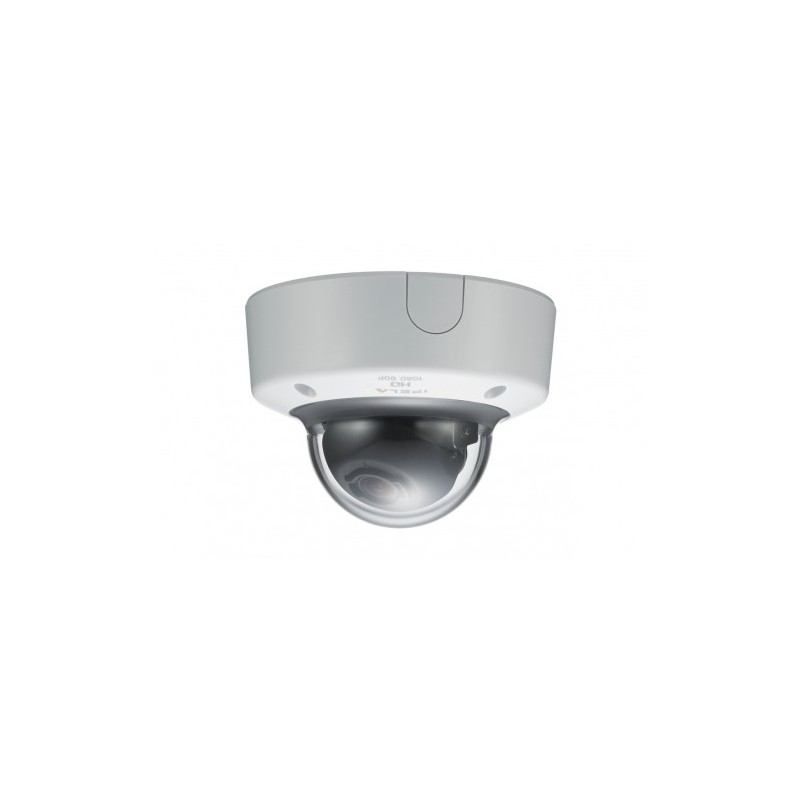

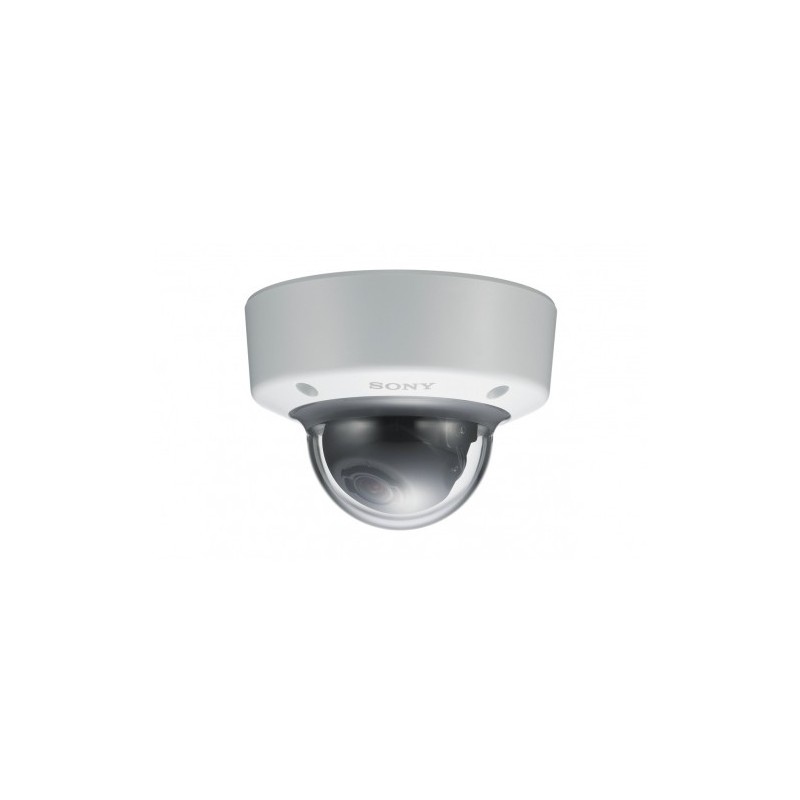

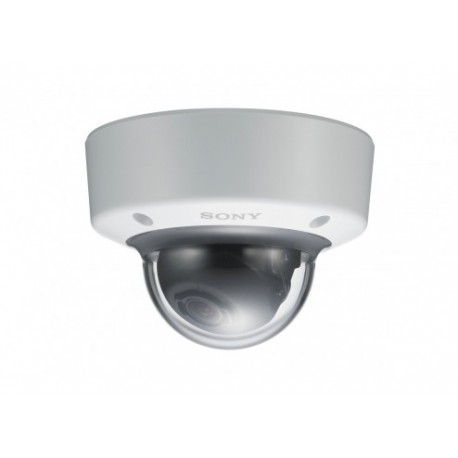

Sony SNC-VM631 Indoor Vandal-Proof Mini Dome Network Camera

Spesifikasi Produk Sony SNC-VM631 Indoor Vandal-Proof Mini Dome Network Camera

Camera Specifications
IP/Analog

• IP

Camera Type

• Mini Dome

Type

• Mini Dome

Effective Pixels

• Approx. 2.14 Megapixels

Minimum Illumination

• Color: 0.1 lx (F1.2, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps) B/W: 0.07 lx (F1.2, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)

Lens Type

• Built-in vari-focal lens

Focal Length

• f = 3.0 mm to 9.0 mm

F-Number

• F1.2 (Wide), F2.1 (Tele)

Compression Format

• H.264 (High/Main/Baseline Profile), JPEG

Day Night

• Yes

Wide-D

• Yes

Zoom Ratio

• Optical zoom 3x, Digital zoom 2x

Minimum Object Distance

• 300 mm

White Balance Mode

• ATW, ATW-PRO, Fluorescent lamp, Mercury lamp, Sodium vapor lamp, Metal halide lamp,White LED, One push WB, Manual

Horizontal Viewing Angle

• 105.2 °to 35.4°

Exposure Control

• Exposure compensation, AGC, Shutter speed, Iris

Gain

• Auto

Image Specifications
Image Size

• 1920 x 1080, 1280 x 720, 1024 x 576, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 184 (H.264, JPEG)

Compression Format

• H.264 (High/Main/Baseline Profile), JPEG

Frame Rate

• H.264: 60 fps (1920 x 1080) JPEG: 60 fps (1280 x 720)

Analog Video Output Specifications
S/N Ratio

• More than 50 dB (Gain 0 dB)

Interface Specifications
Network

• 10BASE-T/100BASE-TX (RJ-45)

External Microphone Input

• Mini jack (monaural)

Analog Video Output

• BNC x1, 1.0 Vp-p, 75 Ω, unbalance, sync negativ

General Specifications
Weight

• Approx. 1 lb 12 oz (800 g)

Dimensions (W x H x D)

• ø5 7/8 inches x 4 3/8 inches (ø148 x 108 mm)

Power Requirements

• PoE system (IEEE 802.3af compliant), DC 12 V ± 10%, AC 24 V ± 20%

Power Consumption

• 6.0 W max.

Operating Temperature

• 14°F to 122°F (-10°C to +50°C)

Storage Temperature

• -4°F to +140°F (-20°C to +60°C)

Storage Humidity

• 20% to 95%

Compression

• H.264 or JPEG

FPS

• variable up to 60

Resolution

• 2.1 megapixel/1080p

Watts

• 6.0 W max.
