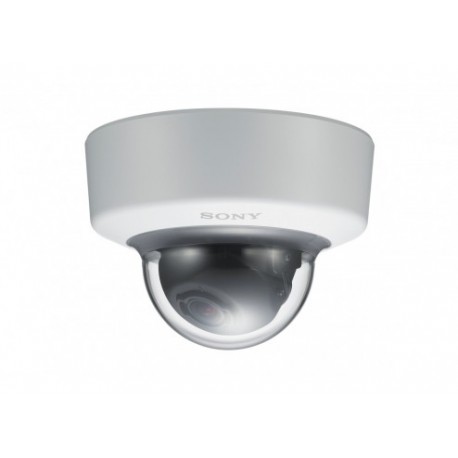

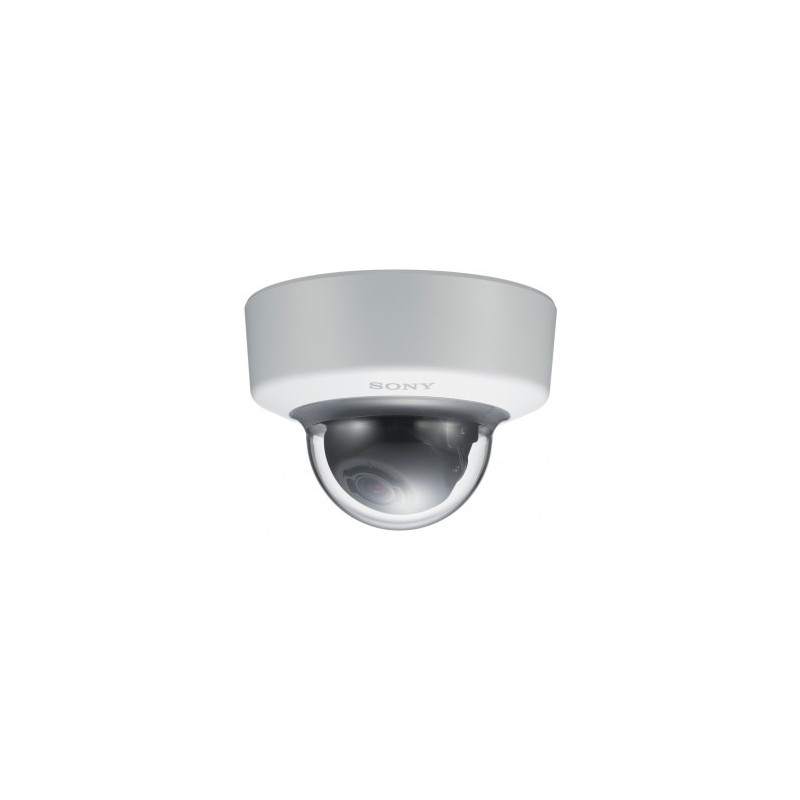

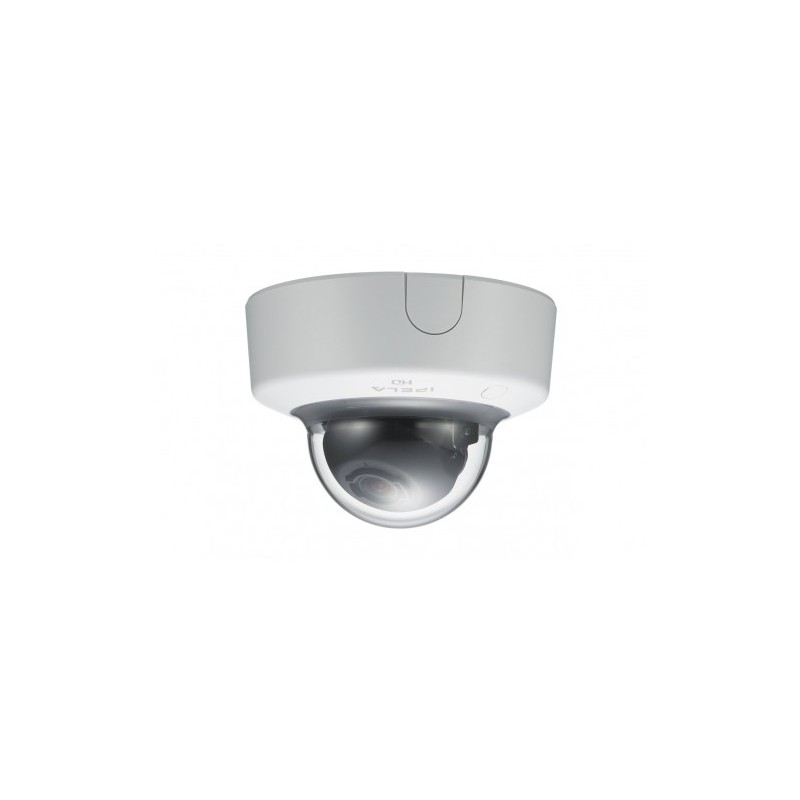

Sony SNC-VM600 720 HD Mini Dome Network Camera (60 fps)

Spesifikasi Produk Sony SNC-VM600 720 HD Mini Dome Network Camera (60 fps)

Camera Specifications
IP/Analog

• IP

Camera Type

• Mini dome

Type

• HD network mini dome

Camera

• SNCVM600

Image Device

• 1/3 type progressive scan Exmor CMOS

Effective Pixels

• Approx. 1.37 Megapixels

Horizontal Resolution

• 600 TV lines (analog video)

Minimum Illumination

• 0.05 lx in colorand 0.04 lx in B/W (50 IRE @ 1/30 sec)

Lens Type

• Built-in vari-focal lens

Focal Length

• f=3.0 mm to 9.0 mm

F-Number

• F1.2 (wide), F2.1 (tele)

Compression Format

• H.264 (High/Main/Baseline Profile), JPEG

Day Night

• Yes

Wide-D

• Yes

Zoom Ratio

• Optical zoom 3x, digital zoom 2x

Minimum Object Distance

• 300 mm

White Balance Mode

• One push WB, Manual

Horizontal Viewing Angle

• 93.0 to 31.6

Exposure Control

• Exposure compensation, AGC, Shutter speed, Iris

Gain

• Auto

Image Specifications
Image Size

• 1280x1024, 1280x960, 1024x768, 1280x720, 800x600, 720x576, 720x480, 704x576, 640x480, 352x288, 320x240

Compression Format

• H.264 (High/Main/Baseline Profile), JPEG

Frame Rate

• H.264: 60 fps (1280x1024); JPEG: 60 fps (1280x1024)

Interface Specifications
Network

• 10BASE-T/100BASE-TX (RJ-45)

I/O Port

• Mini jack (monaural)

External Microphone Input

• Mini jack (monaural)

Analog Video Output

• BNC x1, 1.0 Vp-p, 75 Ω, unbalanced, sync negative

Audio Line Output

• Mini jack (monaural)

General Specifications
Weight

• Approx. 1 lb. 11 oz. (760 g)

Dimensions (W x H x D)

• 5 7/8 inches x 4 3/8 inches (148 mm x 108 mm)

Finish

• White

Power Requirements

• PoE system (IEEE 802.3af compliant), DC 12 V ± 10%, AC 24 V ± 20%

Power Consumption

• 6.0 W max.

Operating Temperature

• 14° F to 122° F (-10° C to +50° C)

Storage Temperature

• -4° F to +140° F (-20° C to +60° C)

Storage Humidity

• 20% to 95%

Compression

• H.264 or JPEG

FPS

• variable up to 60

Resolution

• 1.3 megapixel/720p

Watts

• 6.0
