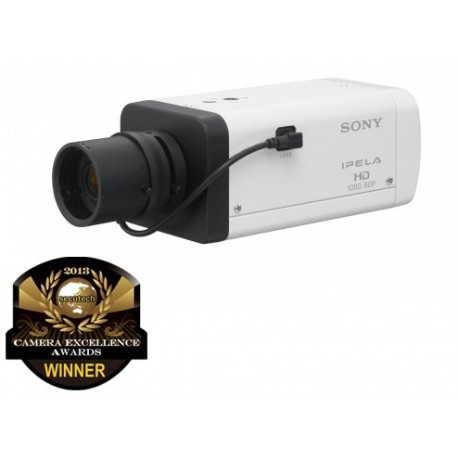

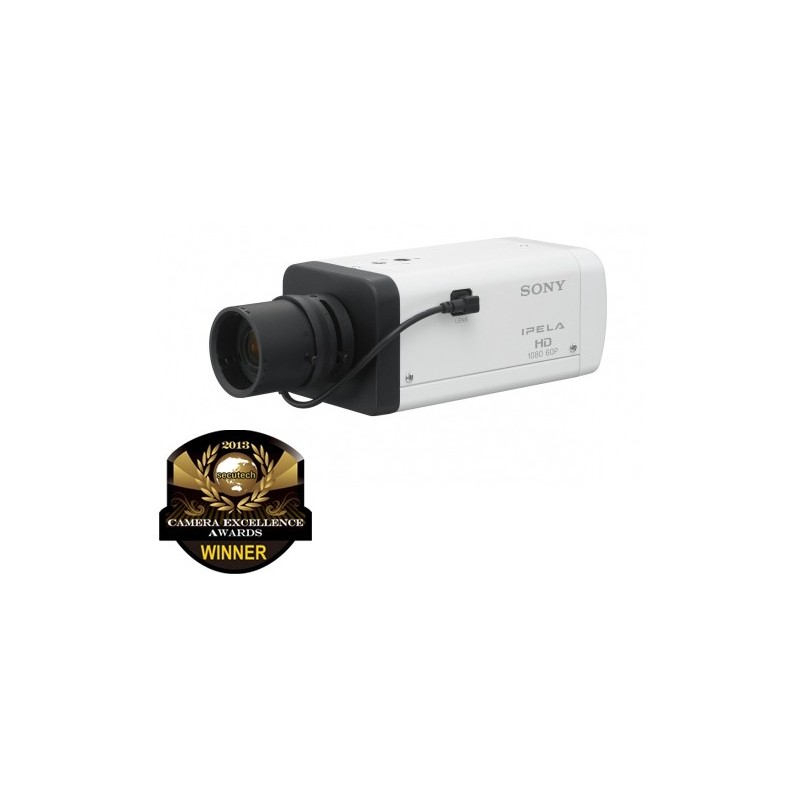

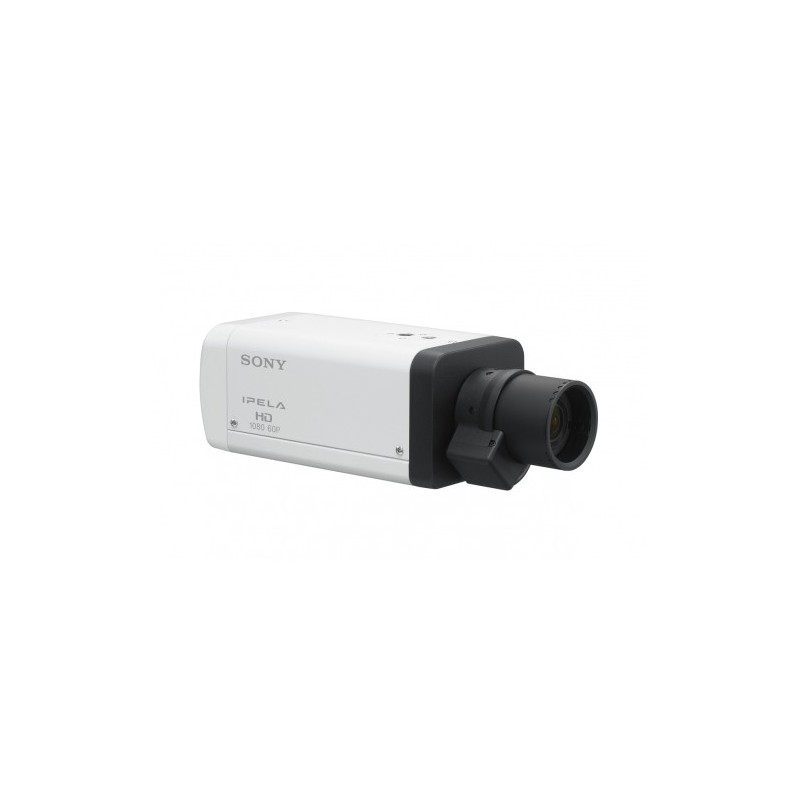

Sony SNC-VB630 High-Quality 1080/60p HD Fixed Network Box-Type Camera

Spesifikasi Produk Sony SNC-VB630 High-Quality 1080/60p HD Fixed Network Box-Type Camera

Camera Specifications
IP/Analog

• IP

Camera Type

• 1080p/60fps HD Fixed Camera

Type

• 1080p/60fps HD Fixed Camera

Image Device

• 1/2.9-type progressive scan Exmor CMOS sensor

Effective Pixels

• Approx. 2.14 Megapixels

Minimum Illumination

• Color: 0.1 lx, B/W: 0.07 lx (F1.2, shutter 1/30 s, AGC on, 30 fps, 50 IRE)

Lens Mount

• CS mount

Lens Type

• Varifocal lens

Focal Length

• f=2.8mm to 8.0mm

F-Number

• F1.2 (Wide) to F1.95 (Tele)

Compression Format

• JPEG / H.264

Day Night

• Yes, true Day/Night

Wide-D

• Yes

Zoom Ratio

• Optical 2.9x, Digital zoom 2x

Minimum Object Distance

• 300 mm

White Balance Mode

• ATW, ATW-PRO, Fluorescent lamp, Mercury lamp, Sodium vapor lamp, Metal halide lamp White LED, One push WB, Manual

Horizontal Viewing Angle

• 114.2º to 40.0º

Exposure Control

• Exposure compensation, AGC, Shutter speed, Iris

Gain

• Auto (Max. limit value selectable)

Analog Video Output Specifications
Signal System

• NTSC / PAL (selectable)

Interface Specifications
Interface

• Card Slot: SD card x1

Network

• 10BASE-T/100BASE-TX (RJ-45)

I/O Port

• Sensor input: x2, make contact, break contact
• Alarm output: x2, 24V AC/DC, 1 A (mechanical relay outputs electrically isolated from the camera)

External Microphone Input

• Mini jack (monaural)

Analog Video Output

• BNC x1, 1.0 Vp-p, 75 ohms, unbalanced, sync, negative

Audio Line Output

• Mini jack (monaural), Maximum output level: 1 Vrms

General Specifications
Weight

• Approx. 1 lb 4 oz (565 g) with lens

Dimensions (W x H x D)

• 2 7/8 inches x 2 1/2 inches x 5 3/4 inches (72 mm x 63 mm x 145 mm) not including the projecting parts
• 2 7/8 inches x 2 1/2 inches x 7 7/8 inches (72 mm x 63 mm x 197 mm) with lens not including the projecting parts

Power Requirements

• PoE system (IEEE 802.3af compliant), DC 12V, AC 24V

Power Consumption

• 6.0 W max.

Operating Temperature

• 14° F to 122° F (-10° C to +50° C)

Storage Temperature

• -4 °F to +140 °F (-20 °C to +60 °C)

Storage Humidity

• 20% to 95%

Compression

• H.264 or JPEG

Watts

• 6.0 W max.
