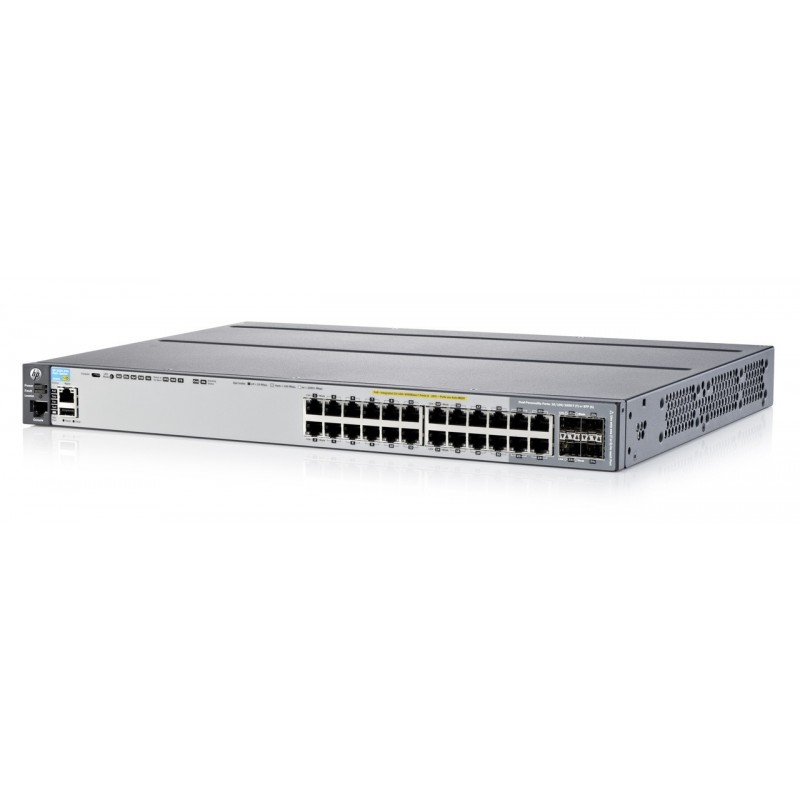

HP 2920-24G-PoE+ 24 Port Gigabit Ethernet Network Switch (J9727A)

Kode Produk: 31025

Referensi AI0117

Kondisi: Produk baru

24 x Gigabit Ethernet Network
2 x Expansion Slot
4 x Gigabit Ethernet Expansion Slot
10/100/1000Base-T
1U
Rack-mountable

Lebih detail

Kirim ke teman
Kirim ke teman
HP 2920-24G-PoE+ 24 Port Gigabit Ethernet Network Switch (J9727A)

24 x Gigabit Ethernet Network

2 x Expansion Slot

4 x Gigabit Ethernet Expansion Slot

10/100/1000Base-T

1U

Rack-mountable
Penerima: :

Nama teman Anda ^* :

Alamat email teman Anda ^* :

^* Harus diisi

atau Batal
Bagikan di Facebook
Cetak

Info lainnya

Spesifikasi HP 2920-24G-PoE+ 24 Port Gigabit Ethernet Network Switch (J9727A)

General Information
Product Name	HPE 2920-24G-PoE+ Switch
Manufacturer Part Number	J9727A#ABA
Product Series	2920
Product Model	2920-24G-PoE+
Product Type	Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports	20
Modular	No
Port / Expansion Slot Details	24 x Gigabit Ethernet Network 2 x Expansion Slot 4 x Gigabit Ethernet Expansion Slot
I/O Expansions
Number of Total Expansion Slots	6
Expansion Slot Type	SFP
Stacking Module
Shared SFP Slot	Yes
Number of SFP Slots	4
Media & Performance
Media Type Supported	Twisted Pair
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T
Network & Communication
Layer Supported	4
Power Description
Power Source	Power Supply
Redundant Power Supply Supported	No
Management & Protocols
Manageable	Yes
Physical Characteristics
Compatible Rack Unit	1U
Form Factor	Rack-mountable
Environmental Certification	RoHS 80 Plus
Other Information
PoE (RJ-45) Port	Yes
Token Ring Port	No
LRE Port	No
USB	Yes
Management Port Yes
Number of PoE+ (RJ-45) Ports	20
Certifications & Standards	Safety: CE EN 60825-1 FCC Part 15 EN 55022 Class A EN 55024: 1998 C-Tick ICES-003, Class A VCCI Class A IEC 60950-1 :Second Edition IEC 60825-1 EN62479:2010 CSA C22.2 No. 60950-1-07 2nd Edition EN 60950- 1:2006+A11:2009+A1:2 010+A12:2011 IEC 60950-1 (ed.2): am1 Emissions: FCC part 15 Class A VCCI Class A EN 55022/CISPR 22 Class A Immunity: EN 55024, CISPR 24 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-11 IEC 61000-3-2 IEC 61000-3-3 IEC 60825-1 IEEE Standards: 802.1AX 802.1D 802.1p 802.1Q 802.1s 802.1v 802.1w 802.3ab 802.3ad 802.3af 802.3at 802.3az 802.3x
Management	IMC - Intelligent Management Center Command Line Interface (CLI) Web-based Management SNMP v1/2c/3 Telnet RMON QoS DHCP VLAN MIB sFlow Find-Fix-Inform XRMON
Flash Memory	1 GB
Input Voltage	110 V AC 220 V AC
Standard Memory	512 MB

Berat dan ukuran HP 2920-24G-PoE+ 24 Port Gigabit Ethernet Network Switch (J9727A)

Height x Width x Depth	1.8" x 17.4" x 13.2"

Isi Paket HP 2920-24G-PoE+ 24 Port Gigabit Ethernet Network Switch (J9727A)

Package Contents	2920-24G-PoE+ Switch 1 x Power Cord 1 x Modular Power Supply

Ringkasan Produk HP 2920-24G-PoE+ 24 Port Gigabit Ethernet Network Switch (J9727A)

HP 2920 Beralih Series terdiri dari empat switch: HP 2920-24G dan 2920-24G-PoE + Switches dengan 24 10/100/1000 port, dan HP 2920-48G dan 2920-48G-PoE + Switch dengan 48 10/100/1000 port. Setiap switch memiliki empat port dual-kepribadian untuk 10/100/1000 atau konektivitas SFP. Selain itu, 2.920 saklar seri mendukung hingga empat opsional 10 Gigabit Ethernet (SFP + dan / atau 10GBASE-T) port, serta dua-port susun modul. Pilihan ini memberi Anda uplinks fleksibel dan mudah menyebarkan dan susun. Bersama-sama dengan statis dan RIP routing, keamanan yang kuat dan manajemen, fitur kelas enterprise, garansi seumur hidup bebas, dan update perangkat lunak bebas, yang 2920 saklar seri adalah, solusi hemat biaya bagi pelanggan yang sedang membangun jaringan berkinerja tinggi. Switch ini dapat digunakan di tepi perusahaan, di kantor-kantor cabang terpencil, dan dalam konvergensi jaringan.
