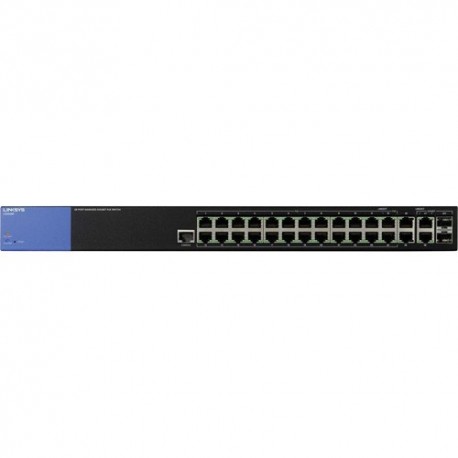

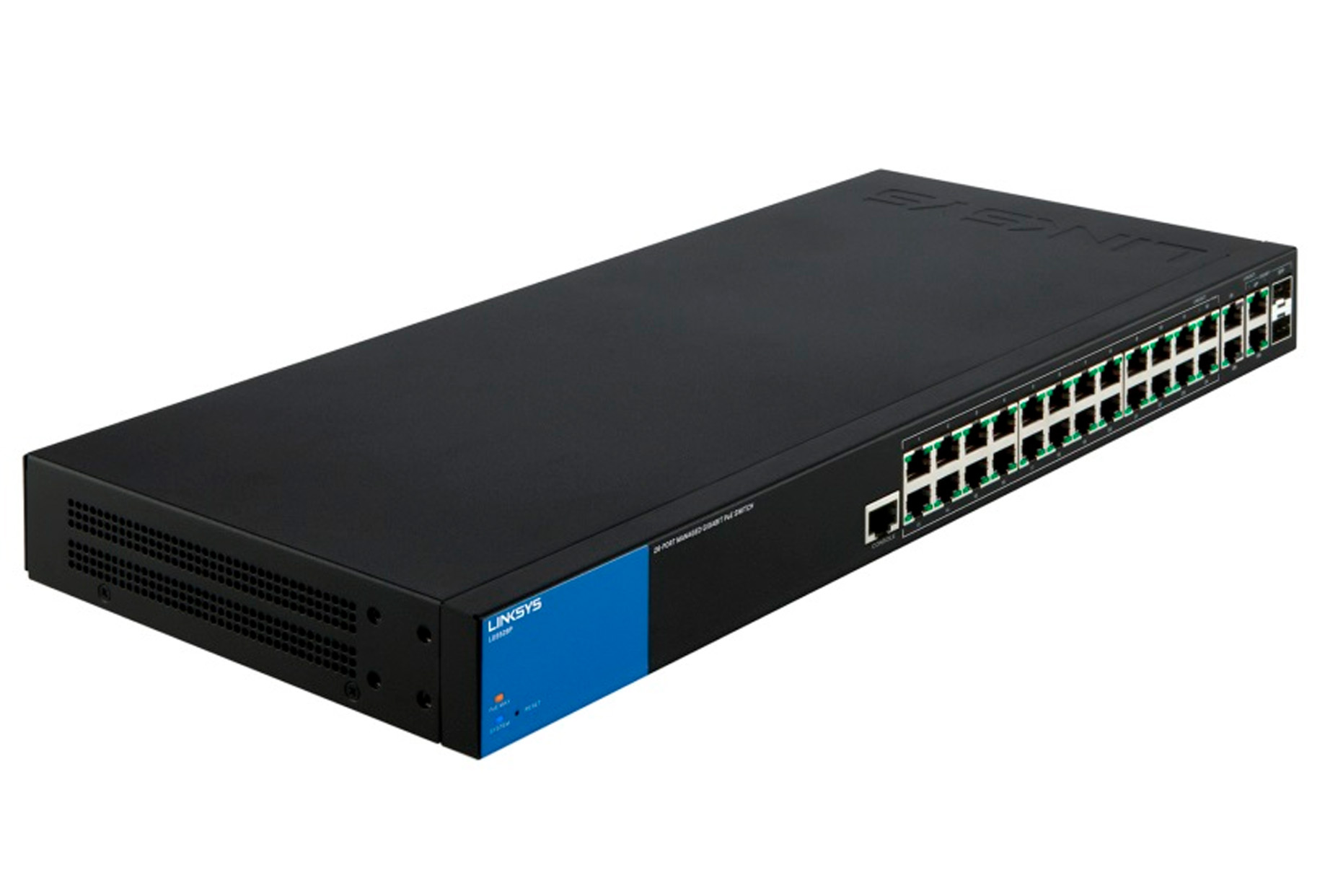

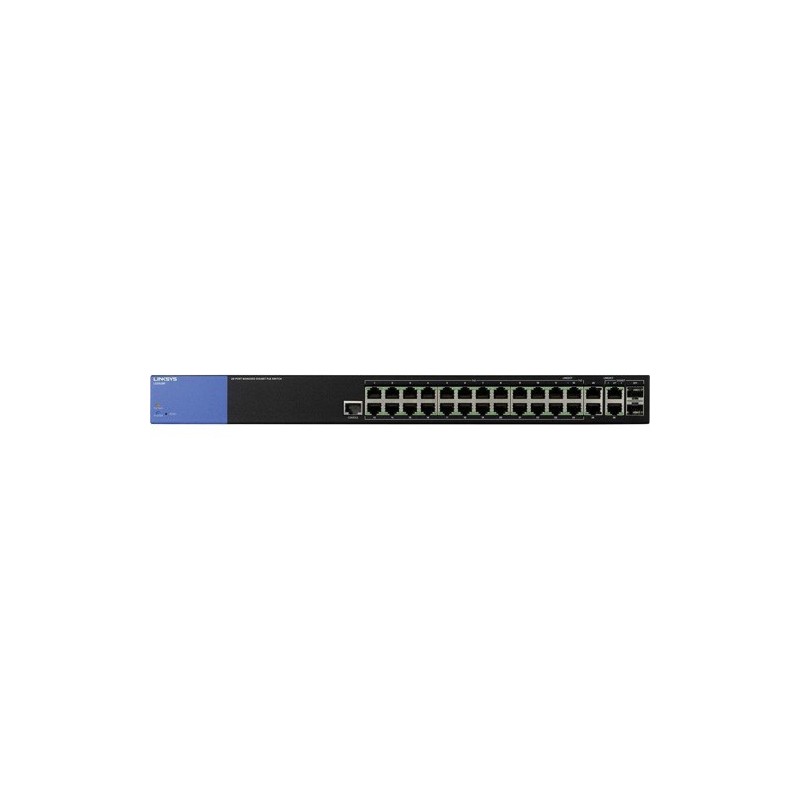

Linksys LGS528P 28-Port Managed Business Gigabit PoE+ Switch

Spesifikasi Linksys LGS528P 28-Port Managed Business Gigabit PoE+ Switch

Network Standards	IEEE 802.3  IEEE 802.3u  IEEE 802.3ab  IEEE 802.3z  IEEE 802.3ae  IEEE 802.3x  IEEE 802.3ad  IEEE 802.3az  IEEE 802.1D  IEEE 802.1w  IEEE802.1Q/p  IEEE802.1X
Number of Ports with PoE+ Support:	24
Memory	128 MB
LEDs	System (blue/yellow), Link/Act/PoE (green/green), Max PoE (amber)
System Power Consumption without PoE+	110V: 30.73W  220V: 28.88W
Forwarding Rate	41.67 Mpps
Switching Capacity	56 Gbps
MAC Address Table Size	16K
Jumbo Frame (FE, GE)	9K
Fans	Yes (two 8,200 rpm)
Power Dedicated to PoE+:	192W
Power Input	100–240V  50–60 Hz  (3.5A max)
Operating Temperature	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Operating Humidity	10 to 90% RH
Storage Humidity	10 to 90% RH (non-condensing)
Spanning Tree	IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree
Link Aggregation	IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group
VLAN	Port-based and IEEE 802.1Q tag-based VLANs
Auto Voice VLAN	VLAN voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels
IGMP Snooping	IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requesters; supports 256 multicast groups
HOL Blocking Prevention	Head-of-line (HOL) blocking prevention
Port Mirroring	Traffic on multiple ports can be mirrored to another port for analysis with a network analyzer
Security Features	IEEE 802.1X radius authentication,  DHCP snooping  IP-MAC-Port binding  IP source guard  ARP inspection  STP root guard  STP BPDU guard  DHCP relay  Port security supports limited dynamic lock and locked MAC address  Management access control
Storm Control	Broadcast, unknown-unicast, and multicast
Access Control	Support up to 512 rules for enhanced security and/or advanced QoS policy: allow, deny, or rate limit based on Layer1 to 4 protocol fields at packet header level with MAC ACL and IP ACL
RMON	Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis
Management Interface	HTTP  HTTPS
Other Management	Telnet (menu-driven), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP
SNMP	Version 1 Version 2c
QoS - Class of Service	Port-based, IEEE 802.1p priority-based, IPv4/v6 IP DSCP-based
Combo Ports (RJ45 + SFP)	2 combo on ports g27, g28
Copper FE/GE Ports (RJ45)	g01–g13, g14–g26
Green Power Mode	EEE+, Short Reach + Energy Detect
QoS - Priority Levels	4 hardware queues
QoS - Scheduling	Priority queuing and weighted round robin (WRR)
Total System Ports	28GE

Berat dan ukuran Linksys LGS528P 28-Port Managed Business Gigabit PoE+ Switch

Dimensions (LxWxH):	440 x 200 x 44.45 mm (17.32 x 7.87 x 1.75 in.)
Weight:	3.12 kg (6.88 lbs.)

Isi Paket

Linksys LGS528P 28-Port Managed Business Gigabit PoE+ Switch

Ringkasan Produk Linksys LGS528P 28-Port Managed Business Gigabit PoE+ Switch

28 - port switch menampilkan kecepatan Gigabit , meningkatkan keamanan , PoE + , dan manajemen lalu lintas maju .

• Dua combo mini- GBIC ( SFP ) port
• Integrated Power Over Ethernet Plus ( PoE + )
• Layer 3 routing statis
• Dukungan IPv6
• canggih QoS
• advanced Security
• Memenuhi EEE ( Hemat Energi Ethernet ) standar 802.3az

Fitur Produk Linksys LGS528P 28-Port Managed Business Gigabit PoE+ Switch

INTEGRATED POWER OVER ETHERNET PLUS (POE+)
Makes installation simple and inexpensive by eliminating the need for additional power cables and nearby power outlets. Backwards compatible with 802.3af (PoE) standard.

TERPADU Power over Ethernet PLUS ( POE + )
Membuat instalasi sederhana dan murah dengan menghilangkan kebutuhan untuk kabel listrik tambahan dan outlet listrik di dekatnya . Kompatibel dengan standar 802.3af ( PoE ) .

ADVANCED TRAFFIC - PENANGANAN KECERDASAN
Layer 2 MAC dan Layer 3 Kebijakan berbasis Arus IP dan Tingkat Membatasi Kontrol memprioritaskan lalu lintas , menawarkan solusi ideal untuk mengelola dan mengendalikan real-time , bandwidth yang tinggi , lalu lintas suara dan video tanpa memperlambat aplikasi bisnis Anda yang lain .

ADVANCED NETWORK SECURITY FEATURES
Ekstensif Access Control Lists ( ACL ) kontrol dan blok bagian dari jaringan dari pengguna yang tidak sah dan serangan jaringan eksternal , sedangkan DHCP mengintip, IP dan MAC - Pelabuhan fungsi Binding membantu memastikan integritas jaringan . IEEE 802.1X Keamanan Pelabuhan ketat batas akses ke segmen tertentu dari jaringan Anda , dan Port Otentikasi dan berbasis MAC Keamanan Pelabuhan memerlukan klien untuk mengotentikasi diri sebelum data apapun berlalu .

FIBER - OPTIC NETWORK EKSPANSI SUPPORT
Port ekspansi Gigabit SFP + Fiber - Optic tambahan memberikan kombinasi yang kuat dari skalabilitas bisnis untuk setiap lingkungan pusat pertanian server dan data , dan meningkatkan tuntutan bandwidth tinggi sambil memberikan redundansi untuk pertumbuhan jaringan mudah dan cepat . Mini Gigabit Interface Converter ( mini- GIBC ) port ekspansi menawarkan pilihan untuk menambahkan serat optik atau konektivitas uplink Gigabit Ethernet untuk ini dikelola switch .

OPTIMAL ENERGY-EFFICIENT ETHERNET SUPPORT
Reduce energy consumptions by monitoring the amount of traffic and states of any inactive ports without compromising performance. Linksys 500 Series Switches are specifically designed to optimize power and efficiency and support the Energy-Efficient Ethernet (IEEE 802.3az) Standards.
