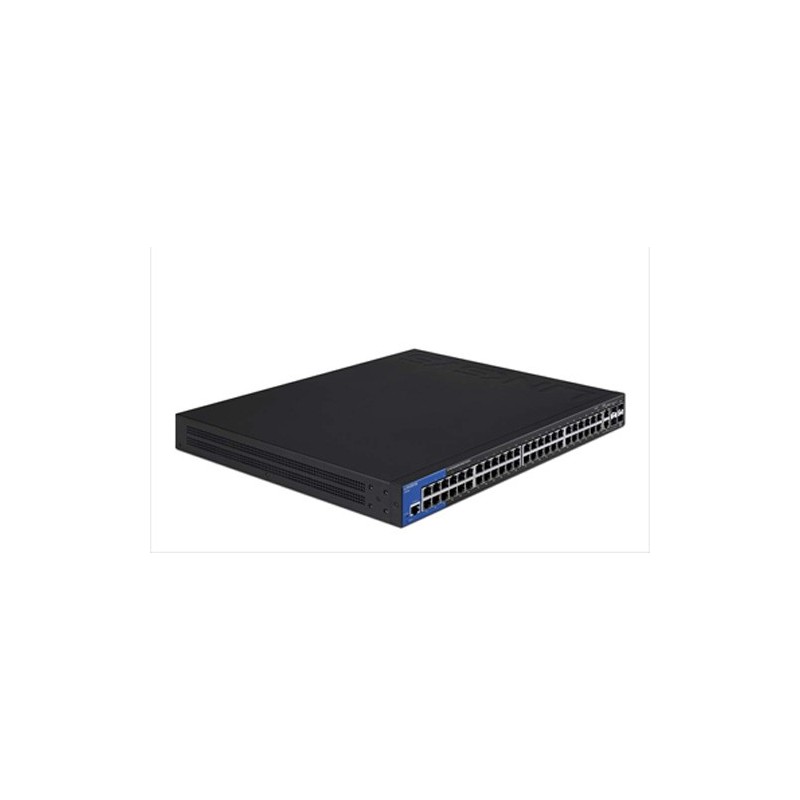

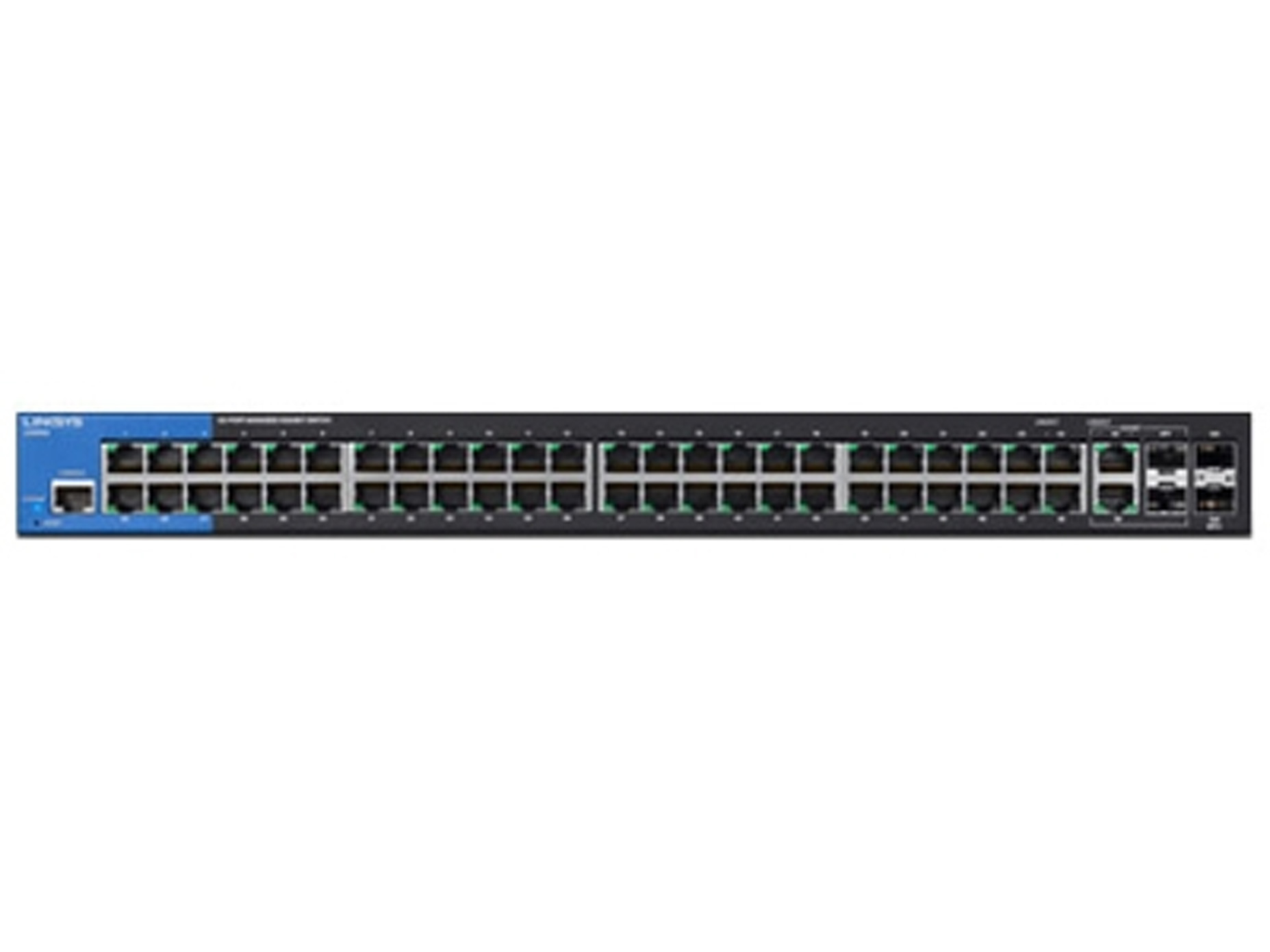

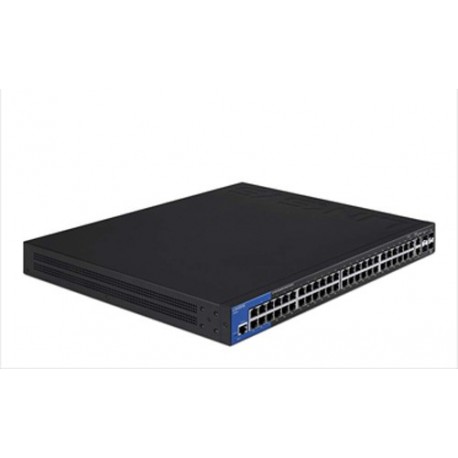

Linksys LGS552P 52-Port Managed Business Gigabit PoE+ Switch

Spesifikasi Linksys LGS552P 52-Port Managed Business Gigabit PoE+ Switch

Network Standards	IEEE 802.3  IEEE 802.3u  IEEE 802.3ab  IEEE 802.3z  IEEE 802.3ae  IEEE 802.3x  IEEE 802.3ad  IEEE 802.3az  IEEE 802.1D  IEEE 802.1w  IEEE 802.1Q/p  IEEE 802.1X
Number of Ports with PoE+ Support:	48
Memory	128 MB
LEDs	System (blue/yellow), Link/Act/PoE (green/green), Max PoE (amber)
System Power Consumption without PoE+	110V: 66.63W 220V: 66.62W
Forwarding Rate	104.16 Mpps
Switching Capacity	140 Gbps
MAC Address Table Size	16K
Jumbo Frame (FE, GE)	9K
Fans	Yes (three 8,200 rpm)
Power Dedicated to PoE+:	375W
Power Input	100–240V 50–60 Hz (8.4A max)
Operating Temperature	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Operating Humidity	10 to 90% RH
Storage Humidity	10 to 90% RH (non-condensing)
Spanning Tree	IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree
Link Aggregation	IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group
VLAN	Port-based and IEEE 802.1Q tag-based VLANs
Auto Voice VLAN	VLAN voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels
IGMP Snooping	IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requesters; supports 256 multicast groups
HOL Blocking Prevention	Head-of-line (HOL) blocking prevention
Port Mirroring	Traffic on multiple ports can be mirrored to another port for analysis with a network analyzer
Security Features	IEEE 802.1X radius authentication  DHCP snooping  IP-MAC-Port binding  IP source guard  ARP inspection  STP root guard  STP BPDU guard  DHCP relay  Port security supports limited dynamic lock and locked MAC address,  Management access control
Storm Control	Broadcast, unknown-unicast, and multicast
Access Control	Support up to 512 rules for enhanced security and/or advanced QoS policy: allow, deny, or rate limit based on Layer1 to 4 protocol fields at packet header level with MAC ACL and IP ACL
RMON	Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis
Management Interface	HTTP  HTTPS
Other Management	Telnet (menu-driven), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP
SNMP	Version 1 Version 2c
QoS - Class of Service	Port-based, IEEE 802.1p priority-based, IPv4/v6 IP DSCP-based
Combo Ports (RJ45 + SFP)	2 combo on ports g49, g50
Copper FE/GE Ports (RJ45)	g01–g25, g26–g50
Green Power Mode	EEE+, Short Reach + Energy Detect
QoS - Priority Levels	4 hardware queues
QoS - Scheduling	Priority queuing and weighted round robin (WRR)
10Gb Ports (SFP+)	XG1, XG2
Total System Ports	52GE

Berat dan ukuran Linksys LGS552P 52-Port Managed Business Gigabit PoE+ Switch

Dimensions (LxWxH):	440 x 350 x 44.45 mm (17.32 x 13.78 x 1.75 in.)
Weight:	5.32 kg (11.73 lbs.)

Isi Paket

Linksys LGS552P 52-Port Managed Business Gigabit PoE+ Switch

Ringkasan Produk Linksys LGS552P 52-Port Managed Business Gigabit PoE+ Switch

52 - port switch menampilkan kecepatan Gigabit , meningkatkan keamanan , PoE + , dan manajemen lalu lintas maju .

• Dua combo mini- GBIC ( SFP ) port
• Dua 10 - Gigabit Ethernet uplink SFP + port
• Integrated Power Over Ethernet Plus ( PoE + )
• Layer 3 routing statis
• Dukungan IPv6
• canggih QoS
• Memenuhi EEE ( Hemat Energi Ethernet ) standar 802.3az

Fitur Produk Linksys LGS552P 52-Port Managed Business Gigabit PoE+ Switch

KEMAMPUAN PENGELOLAAN ADVANCED JARINGAN
Fitur canggih termasuk Layer 2 Switching dan Layer 3 Static Routing antara komunikasi VLAN yang berbeda tanpa penurunan kinerja untuk jaringan yang lebih efisien. Linksys 500 Series Switches mengelola routing internal dengan router Anda dan mendedikasikan jalur tetap untuk lalu lintas eksternal dan keamanan.

TERPADU Power over Ethernet PLUS ( POE + )
Membuat instalasi sederhana dan murah dengan menghilangkan kebutuhan untuk kabel listrik tambahan dan outlet listrik di dekatnya . Kompatibel dengan standar 802.3af ( PoE ) .

ADVANCED TRAFFIC - PENANGANAN KECERDASAN
Layer 2 MAC dan Layer 3 Kebijakan berbasis Arus IP dan Tingkat Membatasi Kontrol memprioritaskan lalu lintas , menawarkan solusi ideal untuk mengelola dan mengendalikan real-time , bandwidth yang tinggi , lalu lintas suara dan video tanpa memperlambat aplikasi bisnis Anda yang lain .

ADVANCED NETWORK SECURITY FEATURES
Ekstensif Access Control Lists ( ACL ) kontrol dan blok bagian dari jaringan dari pengguna yang tidak sah dan serangan jaringan eksternal , sedangkan DHCP mengintip, IP dan MAC - Pelabuhan fungsi Binding membantu memastikan integritas jaringan . IEEE 802.1X Keamanan Pelabuhan ketat batas akses ke segmen tertentu dari jaringan Anda , dan Port Otentikasi dan berbasis MAC Keamanan Pelabuhan memerlukan klien untuk mengotentikasi diri sebelum data apapun berlalu .

FIBER - OPTIC NETWORK EKSPANSI SUPPORT
Port ekspansi Gigabit SFP + Fiber - Optic tambahan memberikan kombinasi yang kuat dari skalabilitas bisnis untuk setiap lingkungan pusat pertanian server dan data , dan meningkatkan tuntutan bandwidth tinggi sambil memberikan redundansi untuk pertumbuhan jaringan mudah dan cepat . Mini Gigabit Interface Converter ( mini- GIBC ) port ekspansi menawarkan pilihan untuk menambahkan serat optik atau konektivitas uplink Gigabit Ethernet untuk ini dikelola switch .

OPTIMAL ENERGY-EFFICIENT ETHERNET SUPPORT
Reduce energy consumptions by monitoring the amount of traffic and states of any inactive ports without compromising performance. Linksys 500 Series Switches are specifically designed to optimize power and efficiency and support the Energy-Efficient Ethernet (IEEE 802.3az) Standards.
