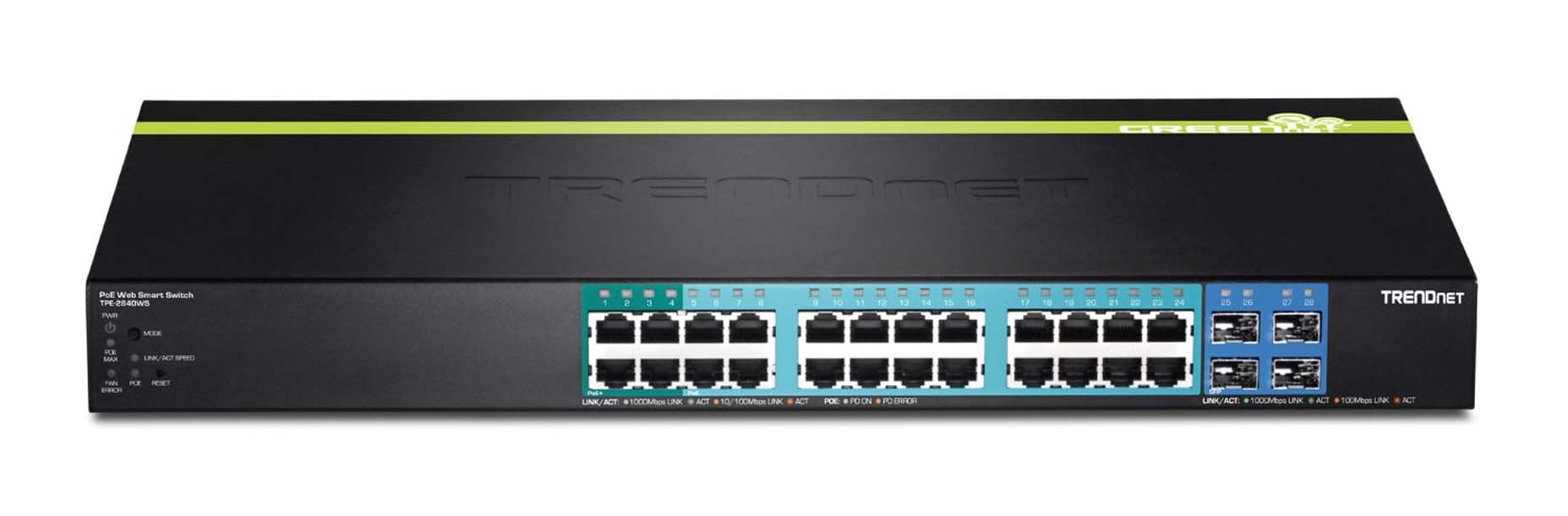

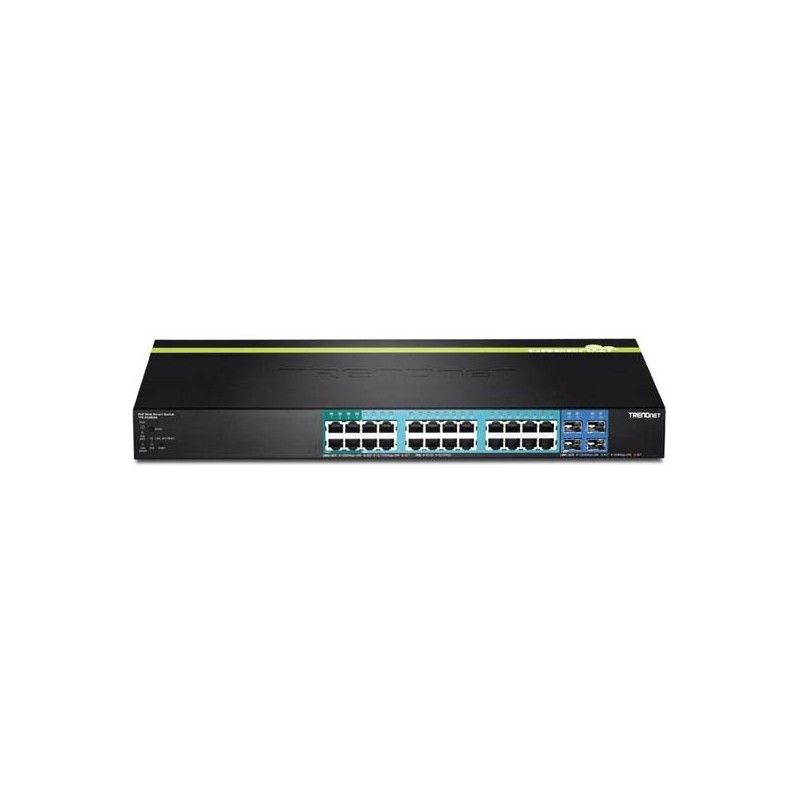

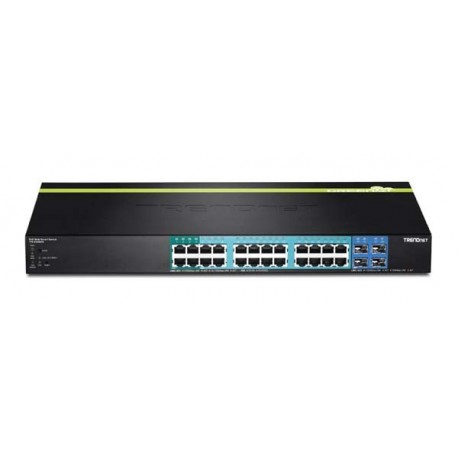

Trendnet TPE-2840WS 28-Port Gigabit Web Smart PoE+ Switch

Spesifikasi Trendnet TPE-2840WS 28-Port Gigabit Web Smart PoE+ Switch

Standard	IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.1ab, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af (15.4 Watts/port), IEEE 802.3at (30 Watts/port), IEEE 802.3az
Device Interface	4 x Gigabit PoE+ ports (ports 1-4) 20 x Gigabit PoE ports (ports 5-24) 4 x SFP slots (slots 25-28) LED indicators LED Display Mode button (Toggles LED indicators to display Link/Activity or PoE only port status) Reset button
Data Transfer Rate	Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit Ethernet: 2000 Mbps (full duplex)
Performance	Switch fabric: 56 Gbps Ram buffer: 1 MB MAC Address Table: 16 K entries HOL Blocking Prevention Forwarding rates: 41.7 Mpps (64-byte packet size)
Management	HTTP/HTTPS (SSL v2/3 TLS) Web based GUI SNMP v1, v2c, v3 RMON v1 Static Unicast MAC Address Enable/disable 802.3az Power Saving LLDP Virtual cable test IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
VLAN	Multiple management VLAN assignment Asymmetric VLAN 802.1Q Tagged VLAN Dynamic GVRP Up to 256 VLAN groups, ID Range 1-4094 Private VLAN (Protected Ports) Voice VLAN (10 user defined OUIs)
Special Features	PoE+ (ports 1-4) IPv6 802.3az power saving Rack mountable
Multicast	IGMP Snooping v1, v2, v3 (per VLAN) Static Multicast Address Up to 256 multicast entries
Port Mirror	RX, TX, or Both One-to-one Many-to-one
Access Control	802.1X Port-Based Network Access Control, RADIUS, TACACS+ Local Dial In User Authentication DHCP Snooping (per VLAN) Loopback Detection Duplicated Address Detection Denial of Service (DoS)
ACL IPv4 L2-L4 & IPv6	MAC Address VLAN ID Ether Type (IPv4 only) IP Protocol 0-255 TCP/UDP Port 1-65535 802.1p DSCP (IPv4 only) IPv6 Address (IPv6 only)
Compatibility	Optional Software Utility: Windows® 8.1, 8, 7, Vista, XP, Windows Server® 2003,2008
Power	Input: 100 - 240 V AC, 50/60 Hz, internal power supply Consumption: 240.2 Watts (max.)
PoE	PoE budget: 185 Watts Pin 3,6 for power+ and pin 1,2 for power- (mode A)
MTBF	257,362 hours
Warranty	Limited Lifetime Warranty

Berat dan ukuran Trendnet TPE-2840WS 28-Port Gigabit Web Smart PoE+ Switch

Weight	3.8kg
Dimension	440 x 250 x 44.45 mm (17.3 x 9.8 x 1.75 in.) Rack mountable 1U height

Isi Paket Trendnet TPE-2840WS 28-Port Gigabit Web Smart PoE+ Switch

Package Contents

TPE-2840WS Multi Language Quick Installation Guide CD-ROM (Utility & User’s Guide) Power cord (1.8 m/6 ft.) Rack mount hardware

Ringkasan Produk Trendnet TPE-2840WS 28-Port Gigabit Web Smart PoE+ Switch

TRENDnet ini 28 Port Gigabit Web Cerdas PoE + Beralih model TPE-2840WS, menawarkan 4 x Gigabit PoE + port (port 1-4 802.3at), 20 port Gigabit x PoE (Ports 5-24 802.3af), 4 x slot SFP, dan anggaran PoE Power of 185 Watt. siap beralih IPv6 ini menawarkan manajemen yang canggih lalu lintas, tips, kontrol akses, hemat GreenNet energi, dan fitur pemantauan pada biaya dikurangi.

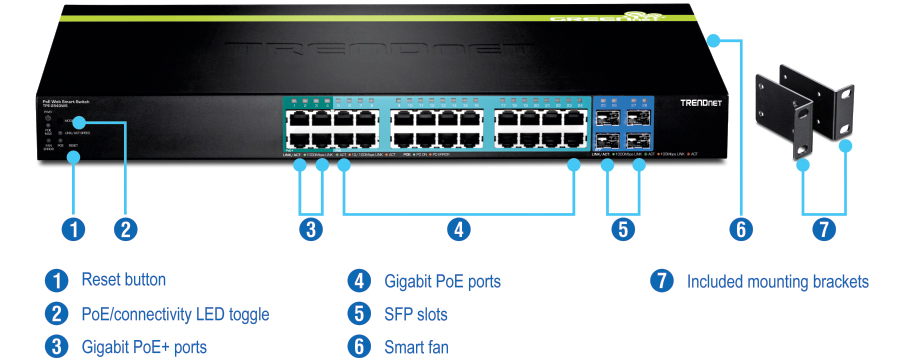

• Desain hardware
• Memberikan 4 x Gigabit PoE + port (port 1-4 802.3at), 20 port Gigabit x PoE (Ports 5-24 802.3af), 4 slot SFP x, anggaran PoE Power of 185 Watts, dan termasuk kurung rackmount.
• Smart Fan
• Pintar fan menghemat energi dengan memvariasikan kecepatan kipas dan penggunaan berdasarkan kebutuhan pendinginan.
• IPv6 Ready
• Switch ini mendukung konfigurasi IPv6 dan IPv6 penemuan tetangga.
• Manajemen lalu lintas
• Sebuah berbagai konfigurasi jaringan yang didukung oleh: link agregasi 802.3ad, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, VLAN Swasta, Kontrol Bandwidth, GVRP, IGMP v1-v3, Kelas 802.1p of Service (CoS), Spanning Tree ( STP, RSTP, dan MSTP), dan QoS penjadwalan antrian.
• Penyelesaian masalah
• Real time chart perbandingan lalu lintas, grafik kelompok kesalahan, dan kabel diagnostik bantuan tes nyaman dalam pemecahan masalah yang cepat.
• Kontrol akses
• Fitur seperti ACL, SSL, MAC / port filtering, Denial of kontrol Service, 802.1X, TACACS +, dan RADIUS yang kompatibel dengan kontrol akses jaringan berlapis.
• Pemantauan
• RMON, SNMP, SNMP perangkap, dan Port Mirroring solusi pemantauan dukungan administrator.
