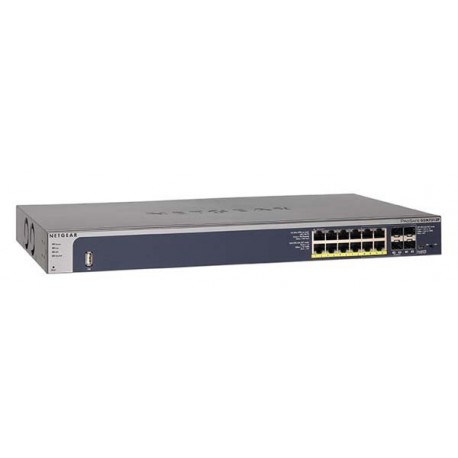

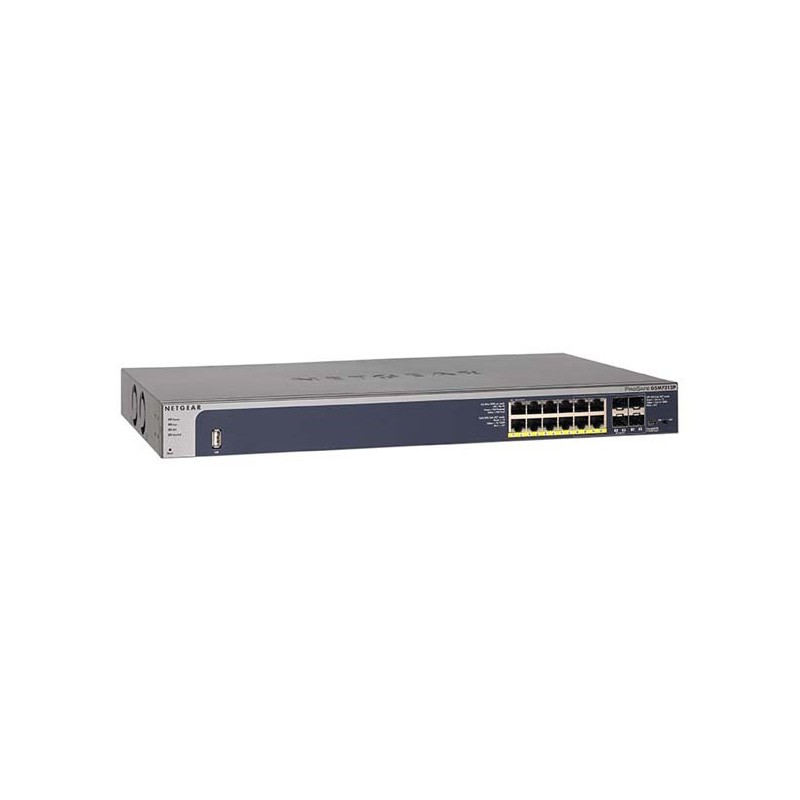

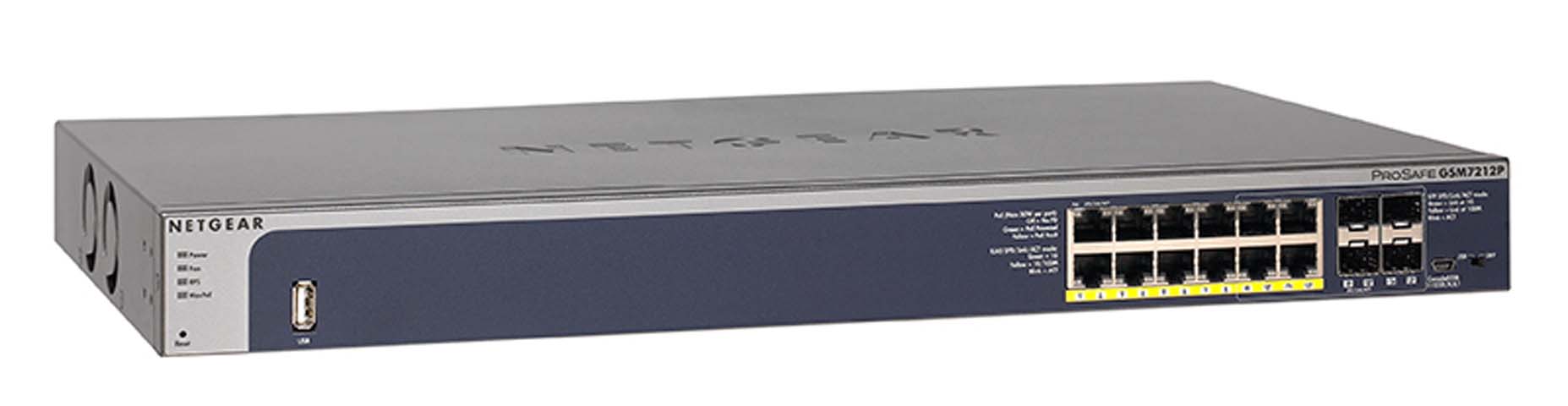

Netgear GSM7212P M4100-12G-POE L2 Fully Managed Switch 12 Port 10/100/1000BaseT

Kode Produk: 29910

Referensi EV0516/ET7/L8

Kondisi: Produk baru

Netgear GSM7212P M4100-12G-POE L2 Fully Managed Switch 12 Port 10/100/1000BaseT, IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af, 12 x RJ45 + 4 x SFP + Mini-USB RS-232 + Serial DB9 RS-232, 10/100/1000Mbps.

Lebih detail

Kirim ke teman

Kirim ke teman

Netgear GSM7212P M4100-12G-POE L2 Fully Managed Switch 12 Port 10/100/1000BaseT
Netgear GSM7212P M4100-12G-POE L2 Fully Managed Switch 12 Port 10/100/1000BaseT, IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af, 12 x RJ45 + 4 x SFP + Mini-USB RS-232 + Serial DB9 RS-232, 10/100/1000Mbps.

Penerima: :

Nama teman Anda ^* :

Alamat email teman Anda ^* :

^* Harus diisi

atau Batal
Bagikan di Facebook
Cetak

Info lainnya

Spesifikasi Netgear GSM7212P M4100-12G-POE L2 Fully Managed Switch 12 Port 10/100/1000BaseT

Format	Rackmount
Standards	IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af
Network Management Type	Managed
Primary Ports	12 x RJ45 + 4 x SFP + Mini-USB RS-232 + Serial DB9 RS-232
Primary Port Speed	10/100/1000Mbps
MAC Address Table	16K
Switching Method	Store and Forward
VLAN Support	Yes
Jumbo Frames	Up to 9K packet size
Buffer Memory	12M Packet
PoE,SNMP,QoS	Yes
Layer	L2+
Features	Switching fabric: 24 Gbps Throughput: 17.8 Mpps PoE+ Budget: 380W 12-port Gigabit PoE+ with 380W PoE+ budget (full power across 12 ports) Four (4) ports SFP for Gigabit and Fast Ethernet fiber RPS connector for external, redundant power supply and interruptible operation Mini-USB console port in addition to traditional DB9 RS232 port MVR (Multicast VLAN Registration) for convergent deployments More granular L2/L3/L4 QoS and ingress/egress ACLs.
Temperature	0ºC to 50ºC (32ºF to 122ºF)
Humidity	90% Maximum, Non-condensing

Berat dan ukuran Netgear GSM7212P M4100-12G-POE L2 Fully Managed Switch 12 Port 10/100/1000BaseT

Weight	8.86 lbs
Dimensions	17.32" x 10.12" x 1.73"

Isi Paket Netgear GSM7212P M4100-12G-POE L2 Fully Managed Switch 12 Port 10/100/1000BaseT

Package contents	ProSAFE® M4100 series switch (M4100-12G-POE) Power cord Rubber footpads for tabletop installation Rubber caps for the SFP sockets Mini-USB console cable with one Mini B connector and one type A connector Resource CD with links to online documentation: USB drivers for the Mini-USB console; Switch MIB; ProSAFE M4100 Managed Switch Quick Installation Guide, ProSAFE M4100 Hardware Installation Guide; ProSAFE Managed Switch Command-Line Interface (CLI) User Manual; ProSAFE M4100 and M7100 Managed Switches Administration Manual

Ringkasan Produk Netgear GSM7212P M4100-12G-POE L2 Fully Managed Switch 12 Port 10/100/1000BaseT

NETGEAR® Cerdas Ujung M4100 seri terdiri dari 12 switch sepenuhnya dikelola, mulai dari 8-port Fast Ethernet 50-port Gigabit Ethernet. Mereka adalah ideal untuk semua organisasi mempertimbangkan handal, terjangkau dan sederhana beralih lapisan akses dengan CLI, kemampuan scripting maju dan Layer 3 routing.

Sebagai komponen biaya-efektif konvergensi suara, video dan jaringan data solusi, NETGEAR seri M4100 memberikan keunggulan aman pada bangunan komersial dan kampus lingkungan LAN: PoE (802.3af) dan PoE + (802.3at) versi seri M4100 yang sempurna untuk Wireless jalur akses, IP telephony dan penyebaran IP surveillance.

Dikelola switch dengan CLI standar industri, telnet dan antarmuka web yang berfungsi penuh
kombinasi terbaik dari kinerja kecepatan kawat, keamanan dan konvergensi
Mudah diatur dan digunakan dengan VoIP otomatis dan IP Kamera - termasuk VLAN routing Wizard.
