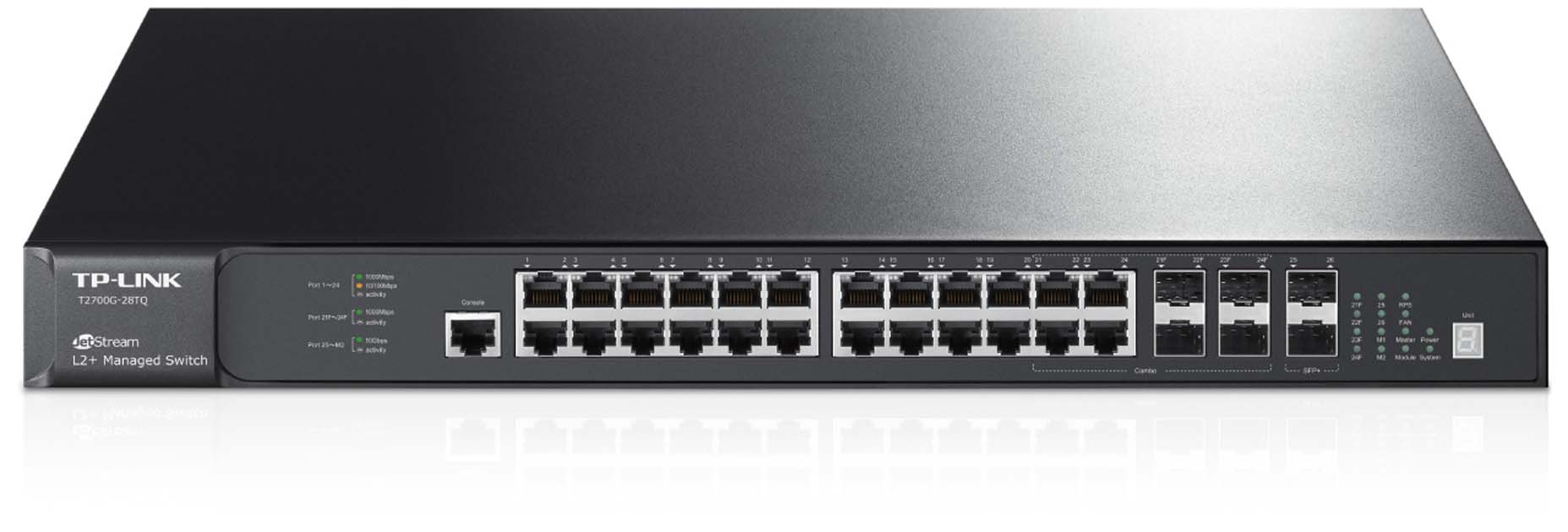

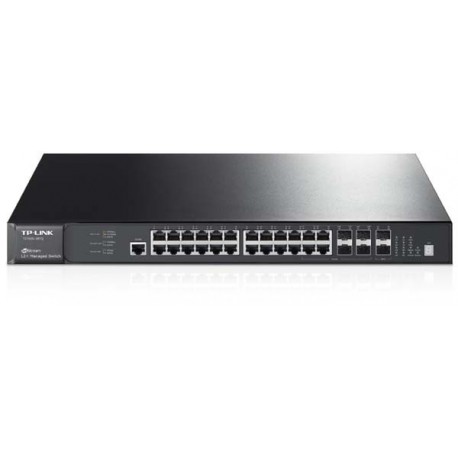

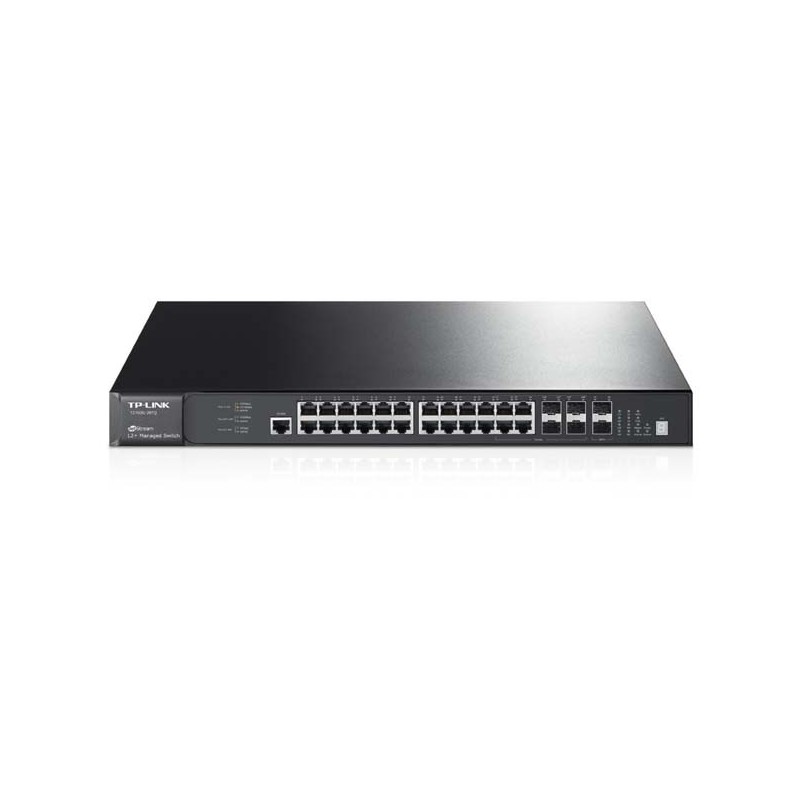

TP-Link T2700G-28TQ JetStream 28-Port Gigabit Stackable L2+ Managed Switch

Kode Produk: 29978

Referensi EV0616/ET8/L8

Kondisi: Produk baru

TP-Link T2700G-28TQ JetStream 28-Port Gigabit Stackable L2+ Managed Switch , JetStream™ 28-port Pure-Gigabit L2+ Managed Switch, 24 10/100/1000Mbps RJ45 ports 4 combo Gigabit SFP slots, 2 integrated 10G SFP+ Slots, 2 optional 10G SFP+ Slots.

Lebih detail

Kirim ke teman

Kirim ke teman

TP-Link T2700G-28TQ JetStream 28-Port Gigabit Stackable L2+ Managed Switch
TP-Link T2700G-28TQ JetStream 28-Port Gigabit Stackable L2+ Managed Switch , JetStream™ 28-port Pure-Gigabit L2+ Managed Switch, 24 10/100/1000Mbps RJ45 ports 4 combo Gigabit SFP slots, 2 integrated 10G SFP+ Slots, 2 optional 10G SFP+ Slots.

Penerima: :

Nama teman Anda ^* :

Alamat email teman Anda ^* :

^* Harus diisi

atau Batal
Bagikan di Facebook
Cetak

Info lainnya

Spesifikasi TP-Link T2700G-28TQ JetStream 28-Port Gigabit Stackable L2+ Managed Switch

Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface	24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4 combo gigabit SFP Slots Up to 4 10G SFP+ Slots (2 fixed and 2 optional 10G SFP+ Slots) 1 Console Port
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 100BASE-FX: MMF, SMF 1000BASE-X: MMF, SMF 10GBASE-LR 10GBASE-SR
Fan Quantity	4
Power Supply	100~240VAC, 50/60Hz
Stacking Speed (Per Port)	20 Gbps (Full-Duplex)
No. of Units Per Stack	8
Installable SFP+ Transceivers and Direct Attach Copper (DAC) Cables	TXM431-SR TXM431-LR TXC432-CU1M TXC432-CU3M
Max Number of Stacking Ports Installable	2 SFP+
Switching Capacity	Up to 128Gbps for a standalone switch
Bandwidth/Backplane	Up to 320Gbps when 8 units in the stack
Packet Forwarding Rate	Up to 95.2Mpps for a standalone switch
MAC Address Table	32K
Packet Buffer Memory	16 Mbits
Jumbo Frame	10240 Bytes
Number of Routes	12K Number of Static Routes 256 Number of IP Interfaces 128
Basic L3 Features	Wire-speed IP forwarding Static Routing RIP v1, v2 DHCP Server/Relay Advanced L3 Features (License Required) OSPF v2 ECMP PIM-SM/PIM-DM/IGMP ARP Proxy VRRP
Quality of Service	Support 802.1p CoS/DSCP priority Support 8 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting Voice VLAN
L2 Features	IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 32 aggregation groups, containing 8 ports per group) Spanning Tree STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loop back detection 802.3x Flow Control
VLAN	Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) IEEE 802.1Q VLAN/MAC VLAN/Protocol VLAN/QinQ/Private VLAN/GVRP Access Control List L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID Time Range Based
Security	IP-MAC-Port-VID Binding IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN DoS Defence Dynamic ARP inspection (DAI) SSH v1/v2 SSL v2/v3/TLSv1 Port Security Broadcast/Multicast/Unknown-unicast Storm Control
Management	Web-based GUI and CLI management SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) DHCP/BOOTP Client, DHCP Snooping, DHCP Option82 CPU Monitoring Port Mirroring Time Setting: SNTP Integrated NDP/NTDP feature Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS Dual Image
Certification	CE, FCC, RoHS
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.
Environment	Operating Temperature: 0~40 (32~104) Storage Temperature: -40~70 (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

Ukuran TP-Link T2700G-28TQ JetStream 28-Port Gigabit Stackable L2+ Managed Switch

Dimensions (W X D X H)	17.32131.73 in.(44033044 mm)

Isi Paket TP-Link T2700G-28TQ JetStream 28-Port Gigabit Stackable L2+ Managed Switch

Package Contents	Switch; Power Cord; Quick Installation Guide; Resource CD; Rackmount Kit; Rubber Feet

Ringkasan Produk TP-Link T2700G-28TQ JetStream 28-Port Gigabit Stackable L2+ Managed Switch

TP-LINK T2700G-28TQ adalah L2 + beralih berhasil dirancang untuk membangun jaringan yang sangat mudah diakses, terukur, dan kuat. saklar ini dilengkapi dengan 24 Gigabit RJ-45 port, 4 Combo Gigabit SFP dan sampai 4 slot 10Gbps SFP, memberikan administrator jaringan fleksibilitas jaringan besar. Mendukung dasar Layer3 fitur seperti routing statis dan RIP v1 / v2 secara default dan dapat ditingkatkan untuk mendukung berlimpah Layer 3 fitur seperti OSPF / ECMP / PIM / VRRP dengan penambahan lisensi Layer3. Terlebih lagi, dengan fitur susun fisik dan opsional berlebihan unit daya eksternal, T2700G-28TQ menyediakan jaringan yang kuat dengan redundansi efisien. T2700G-28TQ memberikan keamanan yang kuat untuk membantu mengamankan jaringan perusahaan Anda.

T2700G-28TQ L2 + berhasil beralih TP-LINK menyediakan solusi handal dan hemat biaya untuk perusahaan, kampus dan ISP jaringan.
