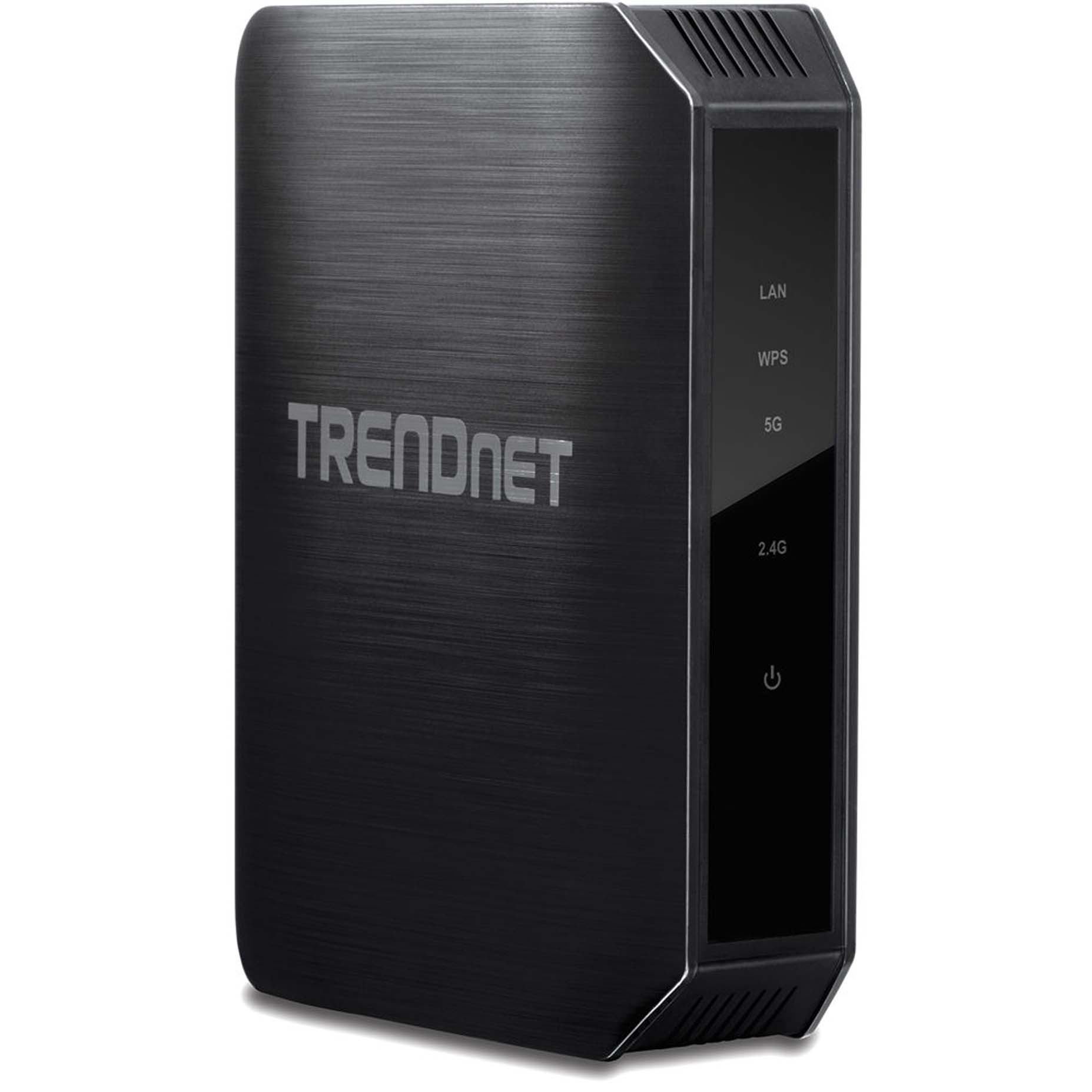

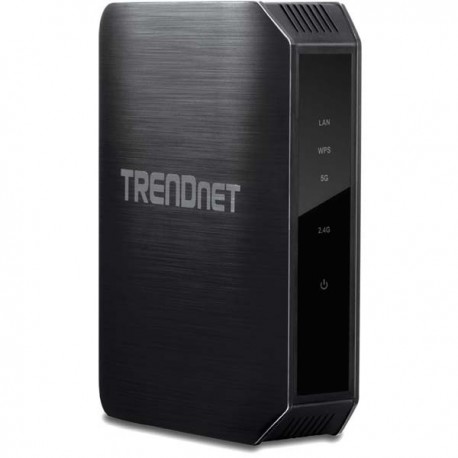

Trendnet TEW-814DAP AC1200 Dual Band Wireless Access Point

Spesifikasi Trendnet TEW-814DAP AC1200 Dual Band Wireless Access Point

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3az IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n (up to 300 Mbps) IEEE 802.11ac (up to 867 Mbps)
Wireless Data Rates	Up to 450Mbps
Frequency Band	5 GHz: FCC 5.180 – 5.240 + 5.745 – 5.825, ETSI:5.180 – 5.240 GHz 2.4 GHz: FCC 2.412 – 2.472, ETSI: 2.412 – 2.462 GHz
Antenna	5 GHz: 5.88 dBi (max.) internal 2.4 GHz: 6.32 dBi (max.) internal
Receiver Sensitivity	802.11a: FCC: 20 dBm, CE: 22 dBm (max.)/-73 dBm (typical) @ 54 Mbps 802.11b: FCC: 24 dBm, CE: 13 dBm (max.)/-84 dBm (typical) @ 11 Mbps 802.11g: FCC: 22 dBm, CE: 14 dBm (max.)/-70 dBm (typical) @ 54 Mbps 802.11n (2.4 GHz): FCC: 22 dBm, CE: 14 dBm (max.)/-66 dBm (typical) @ 300 Mbps 802.11n (5 GHz): FCC: 20 dBm, CE: 22 dBm (max.)/-66 dBm (typical) @ 300 Mbps 802.11ac: FCC: 18 dBm, CE: 21 dBm (max.)/-56 dBm (typical) @ 867 Mbps
Modulation	802.11b: CCK, DQPSK, DBPSK 802.11a/g/n: BPSK, QPSK, 16 QAM, 64 QAM sub carrier with OFDM 802.11ac: BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM with OFDM
Interface	Ethernet Port Buttons WPS button
Power Adapter	Input: 100 – 240 V AC, 50 - 60 Hz, 0.5 A Output: 12 V DC, 1 A external power adapter Consumption: 8.8 Watts (max.)
Features	High performance concurrent dual band Wireless AC access point AC1750: 1.3 Gbps Wireless AC + 450 Mbps Wireless N bands Access Point (AP), Client, Repeater, WDS, and WDS + AP modes Gigabit LAN port Connect devices with one-touch Wi-Fi Protected Setup (WPS)
Temperature	0°C - 40°C (32°F - 104°F)
Humidity	95% Maximum, Non-Condensing

Berat dan ukuran Trendnet TEW-814DAP AC1200 Dual Band Wireless Access Point

Weight	9.2 oz.
Dimensions	6.50" x 1.80" x 4.70"(H x W x D)

Isi Paket Trendnet TEW-814DAP AC1200 Dual Band Wireless Access Point

Package Contents

TEW-814DAP Multi-Language Quick Installation Guide CD-ROM (User’s Guide) Network cable (1.5 m/5 ft.) Power adapter (12 V DC, 1 A)

Ringkasan Produk Trendnet TEW-814DAP AC1200 Dual Band Wireless Access Point

TRENDnet ini memiliki Kinerja tinggi yaitu AC1200 Dual Band Wireless Access Point, Model TEW-814DAP, mendukung Access Point (AP), Client, Repeater, Wireless Distribution System (WDS) Bridge, dan WDS + mode AP. TEW-814DAP menghasilkan bersamaan 867 Mbps Wireless AC dan 300 Mbps Wireless N jaringan. teknologi GreenNet tertanam mengurangi konsumsi daya hingga 50%.

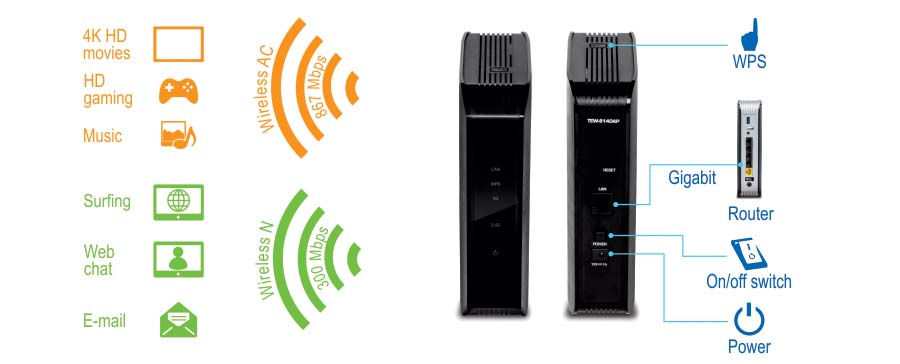

• Next Generation Wireless AC
• 802.11ac memberikan terganggu HD video streaming di lingkungan terhubung sibuk
• Simultan Dual Band
• Kinerja tinggi 867 Mbps Wireless AC + 300 Mbps Wireless N band
• Cakupan wireless
• jangkauan nirkabel diperpanjang dengan teknologi antena MIMO
• kecocokan
• Kompatibel dengan perangkat warisan nirkabel
• Gigabit Pelabuhan
• Port Gigabit LAN mempertahankan koneksi kinerja tinggi ke jaringan kabel
• Multi-Dukungan Mode
• Mendukung Access Point (AP), Client, Repeater, Wireless Distribution System (WDS), dan WDS + mode AP
• One Touch Connection
• Aman terhubung ke jalur akses di sentuhan Protected Setup Wi-Fi (WPS) tombol
• Bahasa multi
• Multi Antarmuka Bahasa: Inggris, Spanyol, Perancis, Jerman, dan Rusia
• Log
• Real time log dan statistik bantuan trouble shooting
• Dienkripsi Wireless
• Dukungan untuk enkripsi nirkabel sampai dengan WPA2
• Beberapa SSID
• Membuat hingga empat SSID per Band nirkabel
• Penghematan energi
• teknologi GreenNet tertanam mengurangi konsumsi daya
• IPv6
• dukungan jaringan IPv6
• Target Beamforming
• Peningkatan kinerja real-time dengan mengarahkan sinyal nirkabel kuat untuk lokasi tertentu Anda
