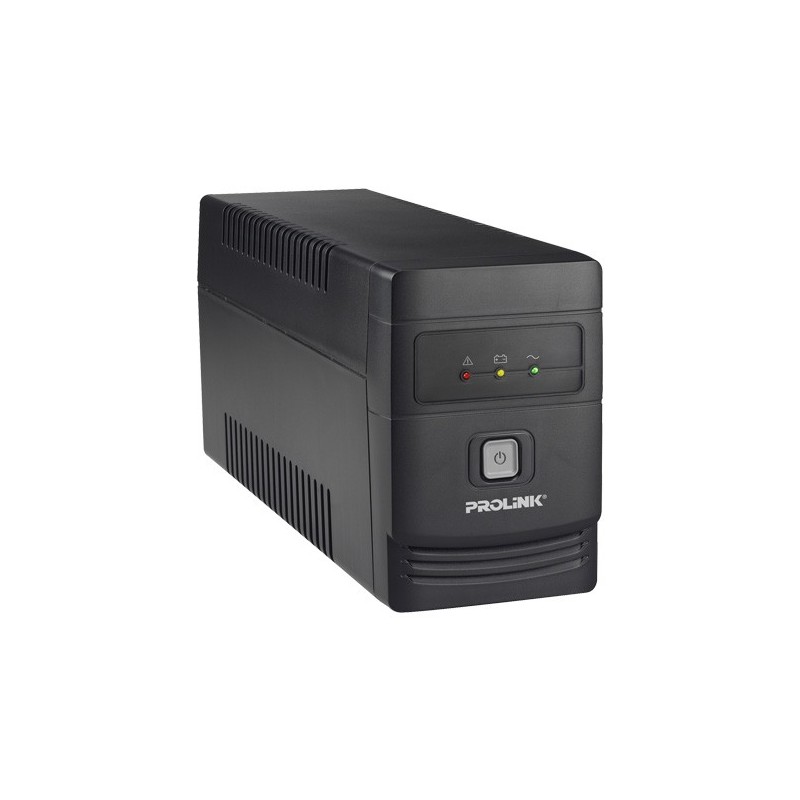

Prolink PRO850SU Line Interactive UPS 850VA with AVR

Kode Produk: 30798

Referensi AI1016

Kondisi: Produk baru

Capacity : 850VA
Voltage Range : 140 - 300V ± 5%
Frequency : 50Hz/60Hz (Auto-sensing)
Phase : Single + GND
Waveform : Simulated Sine Wave (Battery Mode) & Sine Wave (AC Mode)

Lebih detail

Kirim ke teman
Kirim ke teman
Prolink PRO850SU Line Interactive UPS 850VA with AVR

Capacity : 850VA

Voltage Range : 140 - 300V ± 5%

Frequency : 50Hz/60Hz (Auto-sensing)

Phase : Single + GND

Waveform : Simulated Sine Wave (Battery Mode) & Sine Wave (AC Mode)
Penerima: :

Nama teman Anda ^* :

Alamat email teman Anda ^* :

^* Harus diisi

atau Batal
Bagikan di Facebook
Cetak

Info lainnya

Spesifikasi Prolink PRO850SU Line Interactive UPS 850VA with AVR

Capacity	850VA
Input	Voltage Range : 140 - 300V ± 5% Frequency : 50Hz/60Hz (Auto-sensing) Phase : Single + GND
Output	Voltage Range : 230VAC +12% -14% Battery Mode : 230VAC ± 10% Frequency : 50Hz ± 1% (Battery Mode) Waveform : Simulated Sine Wave (Battery Mode) & Sine Wave (AC Mode) Transfer Time : Typical 2 – 6ms
Battery	Type : 12V/10AH – 1pc Backup Time : 8 - 20 minutes depending on load Recharge Time : 90% capacity after 4 - 6 hours
Protection / Monitoring	Short Circuit Protection : Yes (Line Mode and Battery Mode) Surge Protection : Yes Alarm : Audible & Visual Overload Protection : Line Mode = 100 – 120% 5mins change to fault mode (> 120% change to fault mode immediately) Battery Mode = 100 120% 5secs shutdown (>120% shutdown immediately) Intelligent Battery : Prevent overcharging of battery Management : Protect battery and prolong battery life
Noise Level	<40dB
Temperature	0°C - 40°C
Humidity	0 - 90%
Power Factor	Up to 0.95 (AC normal) Up to 0.7
Built in AVR	TRUE Full AVR (3 steps)

Berat dan ukuran Prolink PRO850SU Line Interactive UPS 850VA with AVR

Dimension (mm) D x W × H	287 x 100 x 142 mm
Net Weight (kgs)	4.9

Isi Paket Prolink PRO850SU Line Interactive UPS 850VA with AVR

Package Content	1 x PROLiNK PRO850SU Line Interactive UPS 1 x Quick Start Guide 1 x RJ11 cable 1 x USB cable

Ringkasan Produk Prolink PRO850SU Line Interactive UPS 850VA with AVR

Seri PROLiNK Enerhome Line Interaktif UPS telah dirancang dengan berbagai macam tegangan input dan tersedia dalam kapasitas 850VA. Hal ini juga kompatibel dengan generator kecil.

Fitur Utama & Manfaat
Meningkatkan dan Buck BENAR AVR untuk Tegangan Stabilisasi
- Otomatis mengatur dan merapikan catu daya dari fluktuasi tegangan (140-300V) untuk melindungi peralatan Anda dengan tegangan konstan.

Cepat Pengisian Baterai
- Mendapatkan kapasitas 90% setelah 4-6hours pengisian

Auto Restart sementara AC Memulihkan
- Meringankan pemadaman listrik mendadak dan sementara dan restart secara otomatis saat power supply AC pulih

Dingin Mulai Fungsi (DC power on) dan Off-mode Pengisian

Wide berbagai Input Voltage dan kompatibel dengan generator kecil
